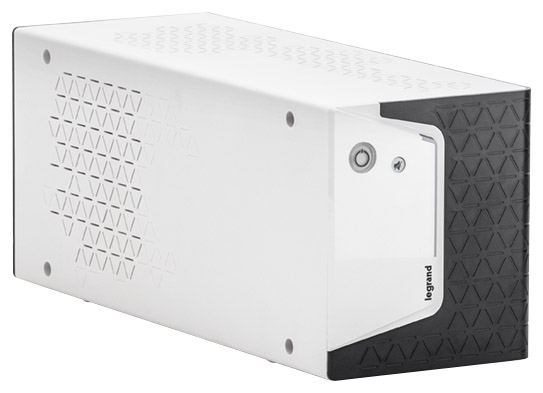

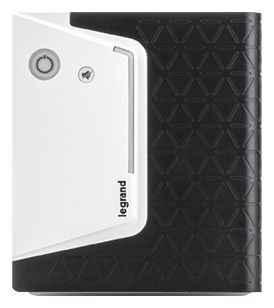

Legrand ASI KEOR SP 600 FR

Legrand ASI KEOR SP 600 FR

Model ASI KEOR SP 600 FRPart no. 310182EAN 3414971231993

60 specifications
  • Battery7 Ah
  • Noise40 dB
  • TypeMini Tower
  • Weight5 kg
  • ColourBlack, White
  • UPS topologyLine-Interactive
See all specifications

Overview

Battery
7 Ah
Noise
40 dB
Type
Mini Tower
Weight
5 kg
Colour
Black, White
UPS topology
Line-Interactive
Brand
Legrand
Model
ASI KEOR SP 600 FR
Part number
310182
EAN / UPC
3414971231993
Also known as
Legrand Keor ASI SP 600 FR uninterruptible power supply (UPS) Line-Interactive 0.6 kVA 360 W 2 AC outlet(s)

Specifications

60 specifications in 10 groups

Features

UPS topologyLine-Interactive
Output power capacity0.6 kVA
Output power360 W
WaveformSine
Input operation voltage (min)170 V
Input operation voltage (max)280 V
Input frequency45/65 Hz
Output operation voltage (min)207 V
Output operation voltage (max)253 V
Output frequency50/60 Hz
Output frequency regulation1 Hz
Output voltage regulation10%
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
Number of output phases1
Efficiency96%
Output power factor0.6
Noise level40 dB
Surge protectionYes
Power protection featuresOvercharge, Overdischarge, Overload, Short circuit
Audible alarm(s)Yes
Potential-free outputNo
Auto shut-offNo
Power source typeAC

Ports & interfaces

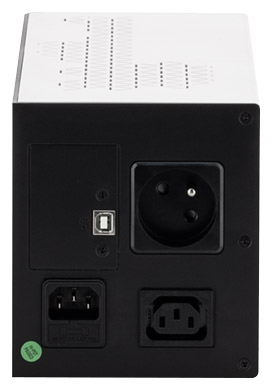

AC outlet typesC13 coupler, Type E
Power plugC14 coupler
AC outlets quantity2 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
USB port typeUSB Type-B
Serial interfaceNo

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity7 Ah
Number of batteries supported1

Design

Form factorMini Tower
Product colourBlack, White
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95%

Certificates

Compliance certificatesCE
CertificationEN 62040-1, EN 62040-2

Sustainability

Sustainability complianceYes

Weight & dimensions

Width120 mm
Depth330 mm
Height138 mm
Weight5 kg

Packaging data

Package width120 mm
Package depth5.46 mm
Package height138 mm
Package weight5.3 kg

Logistics data

Products per pallet60 pc(s)
Pallet net height135 cm
Pallet net length100 cm
Pallet net weight334.4 kg
Pallet net width120 cm
Master (outer) case width192 mm
Master (outer) case length392 mm
Master (outer) case height218 mm
Master (outer) case gross weight5.57 kg
Products per master (outer) case1 pc(s)
