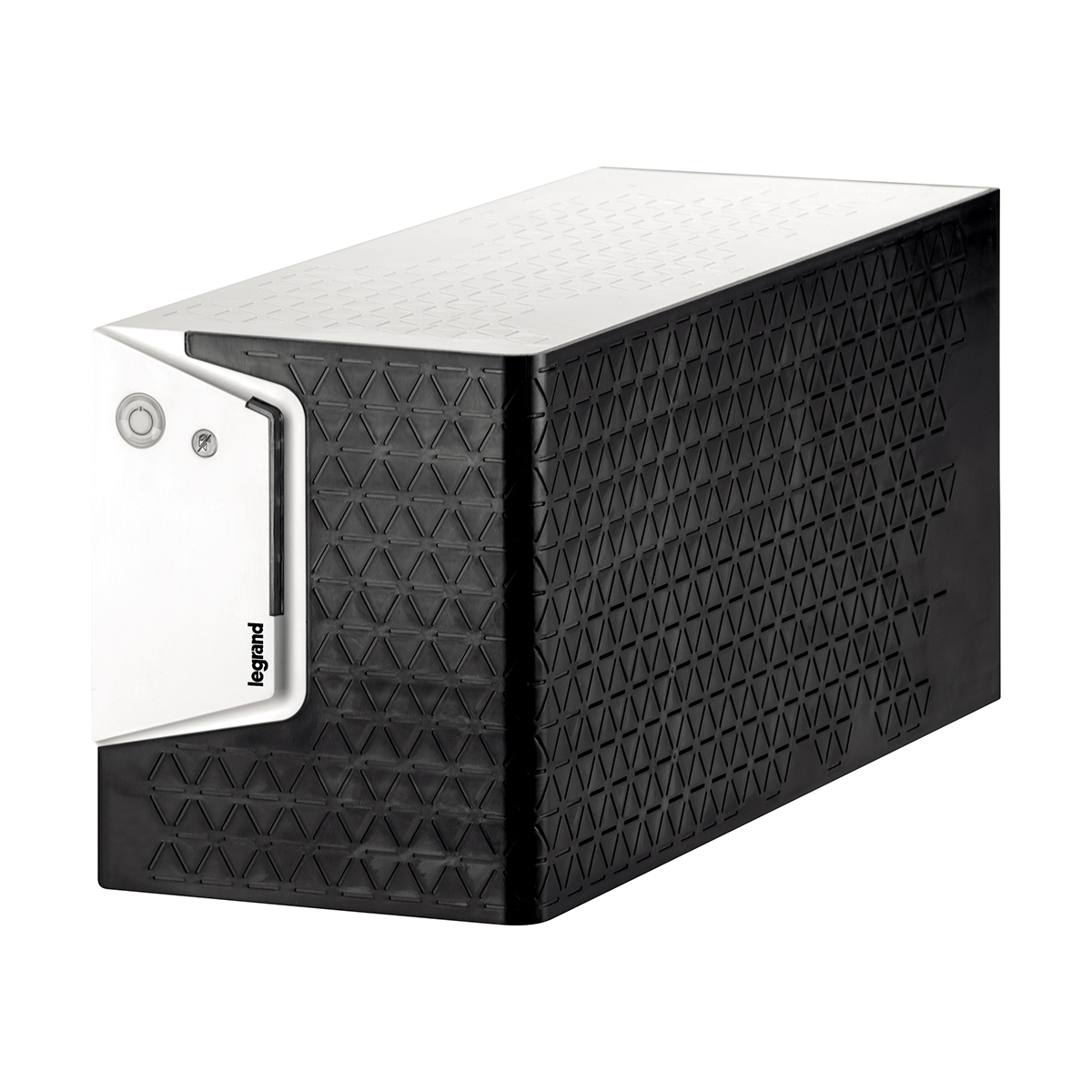

Legrand ASI KEOR SP 2000 FR

Legrand ASI KEOR SP 2000 FR

Model ASI KEOR SP 2000 FRPart no. 310194EAN 3414971232112

61 specifications
  • Battery9 Ah
  • Noise40 dB
  • TypeMini Tower
  • Weight11.8 kg
  • ColourBlack, White
  • UPS topologyLine-Interactive
See all specifications

Overview

Battery
9 Ah
Noise
40 dB
Type
Mini Tower
Weight
11.8 kg
Colour
Black, White
UPS topology
Line-Interactive
Brand
Legrand
Model
ASI KEOR SP 2000 FR
Part number
310194
EAN / UPC
3414971232112
Also known as
Legrand Keor ASI SP 2000 FR uninterruptible power supply (UPS) Line-Interactive 2 kVA 1200 W 4 AC outlet(s)

Specifications

61 specifications in 11 groups

Features

UPS topologyLine-Interactive
Output power capacity2 kVA
Output power1200 W
WaveformSine
Input operation voltage (min)170 V
Input operation voltage (max)280 V
Input frequency45/65 Hz
Output operation voltage (min)207 V
Output operation voltage (max)253 V
Output frequency50/60 Hz
Output frequency regulation1 Hz
Output voltage regulation10%
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
Number of output phases1
Efficiency97%
Output power factor0.6
Noise level40 dB
Surge protectionYes
Power protection featuresOvercharge, Overdischarge, Overload, Short circuit
Audible alarm(s)Yes
Potential-free outputNo
Auto shut-offNo
Power source typeAC

Ports & interfaces

AC outlet typesC13 coupler, Type E
Power plugC14 coupler
AC outlets quantity4 AC outlet(s)
USB portYes
USB 2.0 ports quantity2
USB port typeUSB Type-A/USB Type-B
Serial interfaceYes

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity9 Ah
Number of batteries supported2

Design

Form factorMini Tower
Product colourBlack, White
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95%

Packaging content

ManualYes

Certificates

Compliance certificatesCE
CertificationEN 62040-1, EN 62040-2

Sustainability

Sustainability complianceYes

Weight & dimensions

Width148 mm
Depth380 mm
Height173 mm
Weight11.8 kg

Packaging data

Package width148 mm
Package depth9.73 mm
Package height173 mm
Package weight11.7 kg

Logistics data

Products per pallet40 pc(s)
Pallet net height123 cm
Pallet net length100 cm
Pallet net weight493.9 kg
Pallet net width120 cm
Master (outer) case width243 mm
Master (outer) case length465 mm
Master (outer) case height265 mm
Master (outer) case gross weight12.3 kg
Products per master (outer) case1 pc(s)
