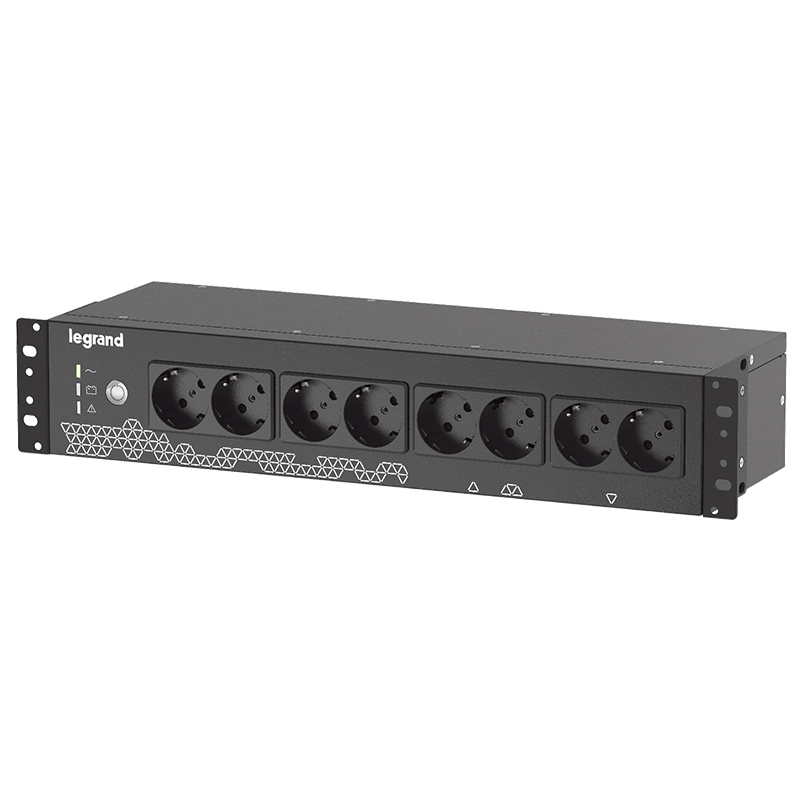

Legrand ASI KEOR PDU 800VA FR/GR/IT INPUT 8 GR/IT OUTPUT BLACK

Legrand ASI KEOR PDU 800VA FR/GR/IT INPUT 8 GR/IT OUTPUT BLACK

Model ASI KEOR PDU 800VA FR/GR/IT INPUT 8 GR/IT OUTPUT BLACKPart no. 311018EAN 3414971765627

62 specifications
  • Battery9 Ah
  • Noise40 dB
  • TypeRackmount
  • Weight5.1 kg
  • ColourBlack
  • UPS topologyStandby (Offline)
See all specifications

Overview

Battery
9 Ah
Noise
40 dB
Type
Rackmount
Weight
5.1 kg
Colour
Black
UPS topology
Standby (Offline)
Brand
Legrand
Model
ASI KEOR PDU 800VA FR/GR/IT INPUT 8 GR/IT OUTPUT BLACK
Part number
311018
EAN / UPC
3414971765627
Also known as
Legrand Keor ASI PDU 800VA FR/GR/IT INPUT 8 GR/IT OUTPUT BLACK uninterruptible power supply (UPS) Standby (Offline) 0.8 kVA 480 W 8 AC outlet(s)

Specifications

62 specifications in 10 groups

Features

UPS topologyStandby (Offline)
Output power capacity0.8 kVA
Output power480 W
WaveformSine
Input operation voltage (min)160 V
Input operation voltage (max)290 V
Input frequency50/60 Hz
Output operation voltage (min)210 V
Output operation voltage (max)250 V
Output frequency50/60 Hz
Output frequency regulation1 Hz
Output voltage regulation10%
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
Number of output phases1
Efficiency98.95%
Efficiency (ECO mode)98.95%
Output power factor0.6
Noise level40 dB
Power protection featuresOverdischarge, Overload, Short circuit
Audible alarm(s)Yes
Potential-free outputNo
Auto shut-offYes
Power source typeAC

Ports & interfaces

AC outlet typesType F
Power plugType F
AC outlets quantity8 AC outlet(s)
Number of type F outputs8
USB portYes
USB port typeUSB Type-B

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity9 Ah
Number of batteries supported1
Typical backup time at full load6 min

Design

Form factorRackmount
Product colourBlack
Rack capacity2U
LED indicatorsYes
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95%

Certificates

Compliance certificatesCE
CertificationEN 62040-1, EN 62040-2

Sustainability

Sustainability complianceYes

Weight & dimensions

Width440 mm
Depth148 mm
Height86 mm
Weight5.1 kg

Packaging data

Package width440 mm
Package depth5.6 mm
Package height86 mm
Package weight5.95 kg

Logistics data

Products per pallet48 pc(s)
Pallet net height107 cm
Pallet net length100 cm
Pallet net weight300.8 kg
Pallet net width120 cm
Master (outer) case width255 mm
Master (outer) case length520 mm
Master (outer) case height150 mm
Master (outer) case gross weight6.27 kg
Products per master (outer) case1 pc(s)
