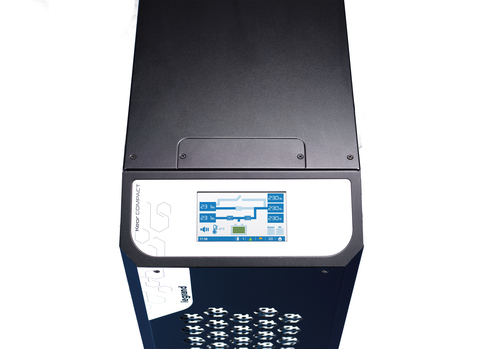

Legrand ASI Keor compact 10 KVA-0

Legrand ASI Keor compact 10 KVA-0

Model ASI Keor compact 10 KVA-0Part no. 311100EAN 3414972095822

67 specifications
  • Noise52 dB
  • TypeTower
  • Weight74 kg
  • ColourBlack, White
  • UPS topologyDouble-conversion (Online)
  • AC outlets quantity1 AC outlet(s)
See all specifications

Overview

Noise
52 dB
Type
Tower
Weight
74 kg
Colour
Black, White
UPS topology
Double-conversion (Online)
AC outlets quantity
1 AC outlet(s)
Brand
Legrand
Model
ASI Keor compact 10 KVA-0
Part number
311100
EAN / UPC
3414972095822
Also known as
Legrand Keor COMPACT ASI 10 KVA-0 uninterruptible power supply (UPS) Double-conversion (Online) 9000 W 1 AC outlet(s)

Specifications

67 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity10 kVA
Output power9000 W
WaveformPure sine
Input operation voltage (min)320 V
Input operation voltage (max)480 V
Input frequency40/70 Hz
Output operation voltage (min)380 V
Output operation voltage (max)415 V
Output frequency50/60 Hz
Output frequency regulation-3 - 3 Hz
Output voltage regulation-1 - 1%
Maximum current17.4 A
Number of input phases3
Number of output phases3
Efficiency93.5%
Efficiency (ECO mode)98%
Input power factor0.99
Output power factor0.9
Crest factor3:1
ECO modeYes
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)2%
Input current Total Harmonic Distortion (THD)3%
Noise level52 dB
Audible alarm(s)Yes
Management protocolsNetwork management,Simple Network Management Protocol (SNMP)
Potential-free outputYes
Auto shut-offYes
Detachable power cordYes
Power source typeAC

Ports & interfaces

AC outlets quantity1 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
USB port typeUSB Type-B
Serial interfaceYes
Serial interface typeRS-232
RS-232 ports1
Emergency Power Off (EPO) connectorYes

Battery

Cold startYes

Design

Form factorTower
Product colourBlack, White
Cooling typeActive
Built-in fanYes
Display typeLCD
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)20 - 95%
Storage relative humidity (H-H)20 - 95%
Operating altitude0 - 1000 m

Certificates

CertificationIEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3

Weight & dimensions

Width260 mm
Depth850 mm
Height890 mm
Weight74 kg

Packaging data

Package weight86.7 kg

Logistics data

Products per pallet1 pc(s)
Pallet net height104 cm
Pallet net length94 cm
Pallet net weight91.3 kg
Pallet net width41 cm
Master (outer) case width350 mm
Master (outer) case length940 mm
Master (outer) case height1040 mm
Master (outer) case gross weight91.3 kg
Products per master (outer) case1 pc(s)
