FSP Eufo 3k
FSP

Eufo 3k

Model Eufo 3kPart no. PPF24A1500EAN 4711140486147

64 specifications
  • Battery9 Ah
  • Noise45 dB
  • TypeRackmount/Tower
  • Weight29.3 kg
  • ColourBlack
  • UPS topologyLine-Interactive
See all specifications

Overview

Battery
9 Ah
Noise
45 dB
Type
Rackmount/Tower
Weight
29.3 kg
Colour
Black
UPS topology
Line-Interactive
Brand
FSP
Model
Eufo 3k
Part number
PPF24A1500
EAN / UPC
4711140486147
Also known as
FSP Eufo 3k uninterruptible power supply (UPS) Line-Interactive 3 kVA 2700 W 8 AC outlet(s)

Specifications

64 specifications in 11 groups

Features

UPS topologyLine-Interactive
Output power capacity3 kVA
Output power2700 W
WaveformPure sine
Input operation voltage (min)162 V
Input operation voltage (max)290 V
Input frequency50/60 Hz
Output operation voltage (min)208 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Output voltage regulation1.5%
Automatic Voltage Regulation (AVR)Yes
Response time6 ms
Efficiency (ECO mode)97%
Efficiency (Battery mode)92%
Efficiency (Line Mode)95%
Power factor0.99
Crest factor3:1
Emergency Power Off (EPO)Yes
Total Harmonic Distortion (THD) (linear load)2%
Total Harmonic Distortion (THD) (non-linear load)5%
Noise level45 dB
Audible alarm(s)Yes
Audible alarm modesAlarm when on battery, Fault, Low battery alarm, Overload alarm
Detachable power cordYes
Power source typeAC

Ports & interfaces

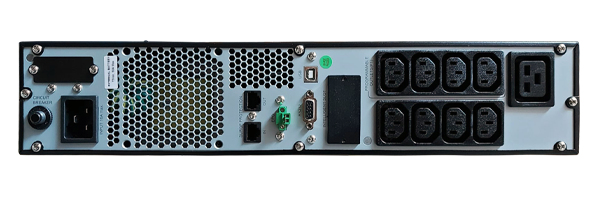

AC outlet typesC13 coupler
Power plugC20 coupler
AC outlets quantity8 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
USB port typeUSB Type-B
Serial interfaceYes
Serial interface typeRS-232
RS-232 ports1
Emergency Power Off (EPO) connectorYes

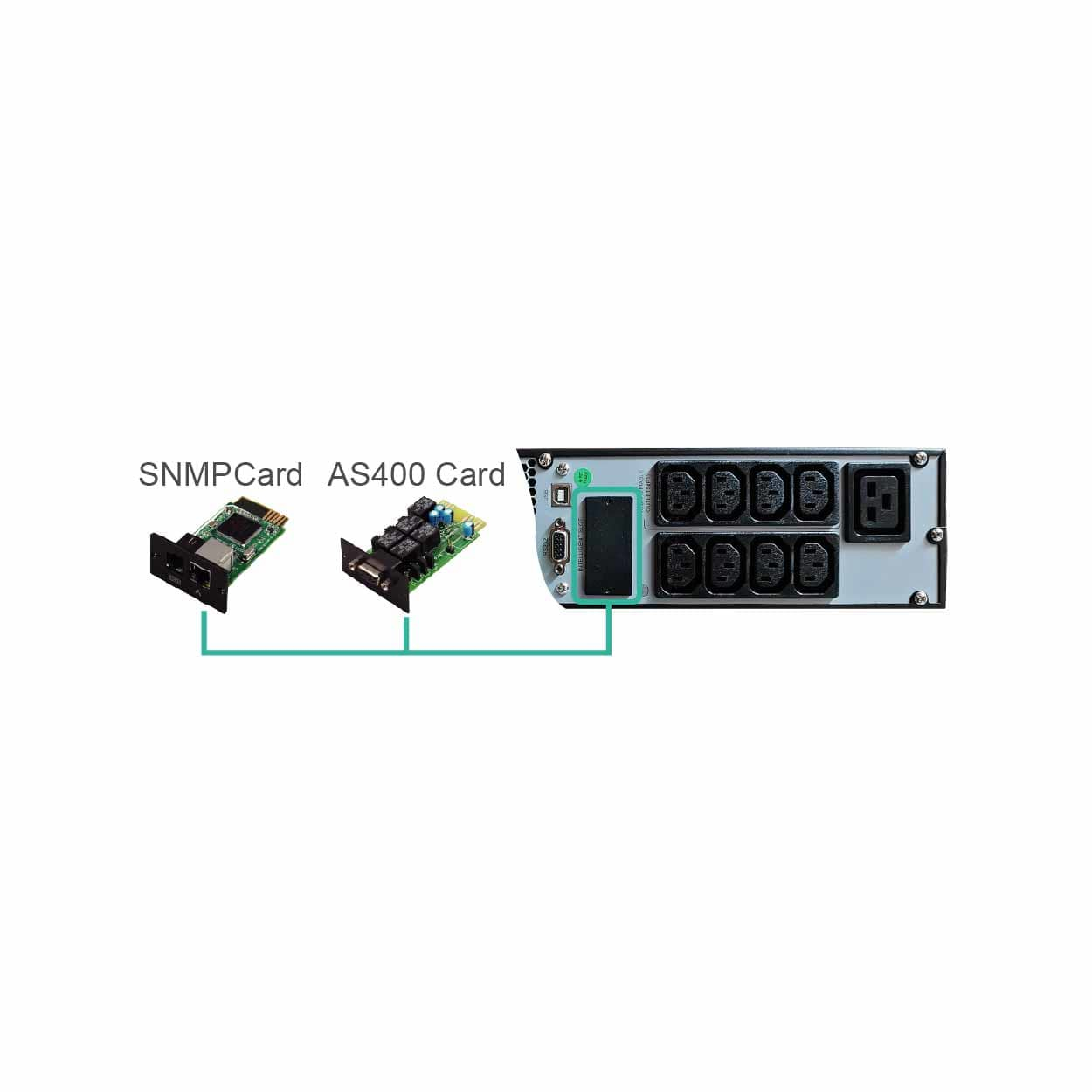

SmartSlotYes

Battery

Battery capacity9 Ah
Battery voltage12 V
Number of battery cells6
Battery recharge time4 h
Battery recharge time(90%)4 h
Charging current1.5 A

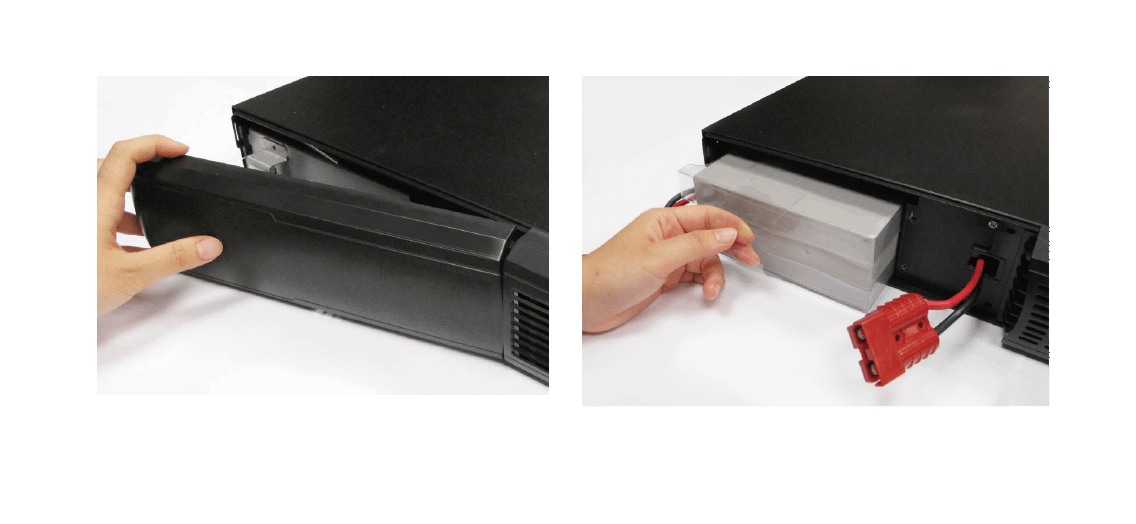

Hot-swap batteryYes

Design

Form factorRackmount/Tower
Product colourBlack
Rack capacity2U
Cooling typeActive
Built-in fanYes
Control typeButtons
Display typeLCD
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 90%

Packaging content

Rack mount kitYes
Cables includedInput power cable, USB cable

Certificates

Compliance certificatesCE, EAC

Sustainability

Sustainability complianceYes

Weight & dimensions

Width438 mm
Depth630 mm
Height88 mm
Weight29.3 kg

Packaging data

Software CDYes

Other features

Number of phases1
