Custos 9X + 3K
Model Custos 9X + 3KPart no. PPF27A2400EAN 4713224522116
44 specifications
- Battery9 Ah
- Noise50 dB
- TypeRackmount/Tower
- Weight28 kg
- ColourBlack
- UPS topologyDouble-conversion (Online)
Overview
- Battery
- 9 Ah
- Noise
- 50 dB
- Type
- Rackmount/Tower
- Weight
- 28 kg
- Colour
- Black
- UPS topology
- Double-conversion (Online)
- Brand
- FSP
- Model
- Custos 9X + 3K
- Part number
- PPF27A2400
- EAN / UPC
- 4713224522116
- Also known as
- FSP Custos 9X + 3K uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 9 AC outlet(s)
Specifications
44 specifications in 6 groups
Features
| Specification | Value |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 3 kVA |
| Output power | 2700 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 55 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 100 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 47/63 Hz |
| Output voltage regulation | -1 - 1% |
| Response time | 4 ms |
| Number of input phases | 1 |
| Efficiency | 89% |
| Efficiency (On-line mode) | 87% |
| Efficiency (ECO mode) | 97% |
| Input power factor | 0.99 |
| Crest factor | 5:1 |
| ECO mode | Yes |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 50 dB |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Fault, Low battery alarm, Overload alarm |
Ports & interfaces
| Specification | Value |
|---|---|

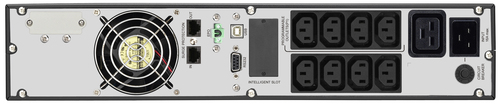

| AC outlet types | C13 coupler, C20 coupler |
| AC outlets quantity | 9 AC outlet(s) |
| USB port | Yes |
| USB port type | USB Type-B |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 9 Ah |
| Battery voltage | 12 V |
| Number of batteries supported | 6 |
| Battery recharge time | 4 h |
| Charging current | 1 A |
| Hot-swap battery | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Display type | LCD |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 438 mm |
| Depth | 630 mm |
| Height | 88 mm |
| Weight | 28 kg |
Other features
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 2000 / 2003 / XP / Vista / 2008 / 7 / 8 / 10; Linux; Unix; MAC |
