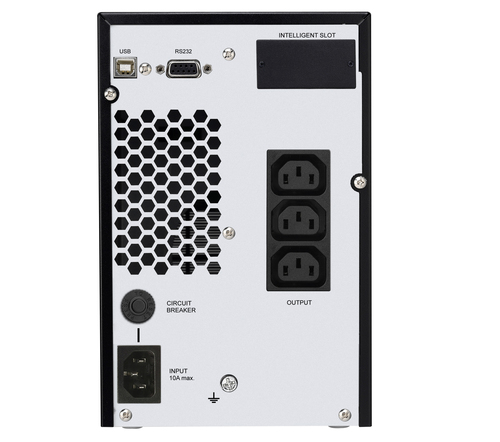

FSP Champ Tower 1K

FSP Champ Tower 1K

Model Champ Tower 1KPart no. PPF8001305EAN 2000001022443

51 specifications
  • Battery9 Ah
  • Noise50 dB
  • TypeTower
  • Weight9.8 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
See all specifications

Overview

Battery
9 Ah
Noise
50 dB
Type
Tower
Weight
9.8 kg
Colour
Black
UPS topology
Double-conversion (Online)
Brand
FSP
Model
Champ Tower 1K
Part numbers
PPF8001305, PPF8001328
EAN / UPC
2000001022443, 4711140487595, 4713224529832
Also known as
FSP Champ Tower 1K uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 900 W

Specifications

51 specifications in 10 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity1 kVA
Output power900 W
WaveformSine
Input operation voltage (min)120 V
Input operation voltage (max)300 V
Input frequency40 - 70 Hz
Output operation voltage (min)200 V
Output operation voltage (max)240 V
Output frequency47/63 Hz
Output voltage regulation1%
Response time0 ms
Power factor0.99
Crest factor3:1
Total Harmonic Distortion (THD) (linear load)3%
Total Harmonic Distortion (THD) (non-linear load)6%
Noise level50 dB
Audible alarm(s)Yes
Audible alarm modesAlarm when on battery, Fault, Low battery alarm, Overload alarm

Ports & interfaces

AC outlet typesC13 coupler
Number of output IEC jumpers3
USB portYes
USB 2.0 ports quantity1
USB port typeUSB Type-B
Serial interfaceYes
Serial interface typeRS-232
RS-232 ports1

Battery

Battery capacity9 Ah
Battery voltage12 V
Number of battery cells2
Typical backup time at full load3.2 min
Typical backup time at half load8.9 min
Battery recharge time(90%)4 h

Design

Form factorTower
Product colourBlack
Control typeButtons
Display typeLCD
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)20 - 90%

Packaging content

Batteries includedYes
Cables includedInput power cable, USB cable
ManualYes

Weight & dimensions

Width145 mm
Depth282 mm
Height220 mm
Weight9.8 kg

Packaging data

Software CDYes

Logistics data

Harmonized System (HS) code85078000

Other features

Number of phases1
Packaging contentUPS, Power cable, USB cable, Software on CD, User manual
