FSP Champ Tower 10KL
FSP

Champ Tower 10KL

Model Champ Tower 10KLPart no. PPF90A0904EAN 4713224524875

45 specifications
  • Noise58 dB
  • TypeTower
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • USB portYes
  • Number of batteries supported20
See all specifications

Overview

Noise
58 dB
Type
Tower
Colour
Black
UPS topology
Double-conversion (Online)
USB port
Yes
Number of batteries supported
20
Brand
FSP
Model
Champ Tower 10KL
Part number
PPF90A0904
EAN / UPC
4713224524875
Also known as
FSP Champ Tower 10KL uninterruptible power supply (UPS) Double-conversion (Online) 10 kVA 9000 W

Specifications

45 specifications in 11 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity10 kVA
Output power9000 W
WaveformSine
Input operation voltage (min)110 V
Input operation voltage (max)300 V
Input frequency46/64 Hz
Output operation voltage (min)208 V
Output operation voltage (max)240 V
Output frequency46/64 Hz
Output voltage regulation1%
Efficiency (Battery mode)91%
Efficiency (Line Mode)93%
Power factor0.99
Crest factor3:1
Emergency Power Off (EPO)Yes
Total Harmonic Distortion (THD) (linear load)3%
Total Harmonic Distortion (THD) (non-linear load)5%
Noise level58 dB

Ports & interfaces

USB portYes
USB 2.0 ports quantity1
USB port typeUSB Type-B
Serial interfaceYes
Serial interface typeRS-232
RS-232 ports1
Emergency Power Off (EPO) connectorYes

Battery

Number of batteries supported20
Typical backup time at full load6 min

Design

Form factorTower
Product colourBlack
Cooling typeActive
Built-in fanYes
Control typeButtons
Display typeLCD
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95%
Operating altitude0 - 1000 m

Packaging content

Cables includedInput power cable, USB cable
ManualYes

Certificates

Compliance certificatesCE

Sustainability

Sustainability complianceYes

Packaging data

Resource CDYes

Logistics data

Harmonized System (HS) code85078000

Other features

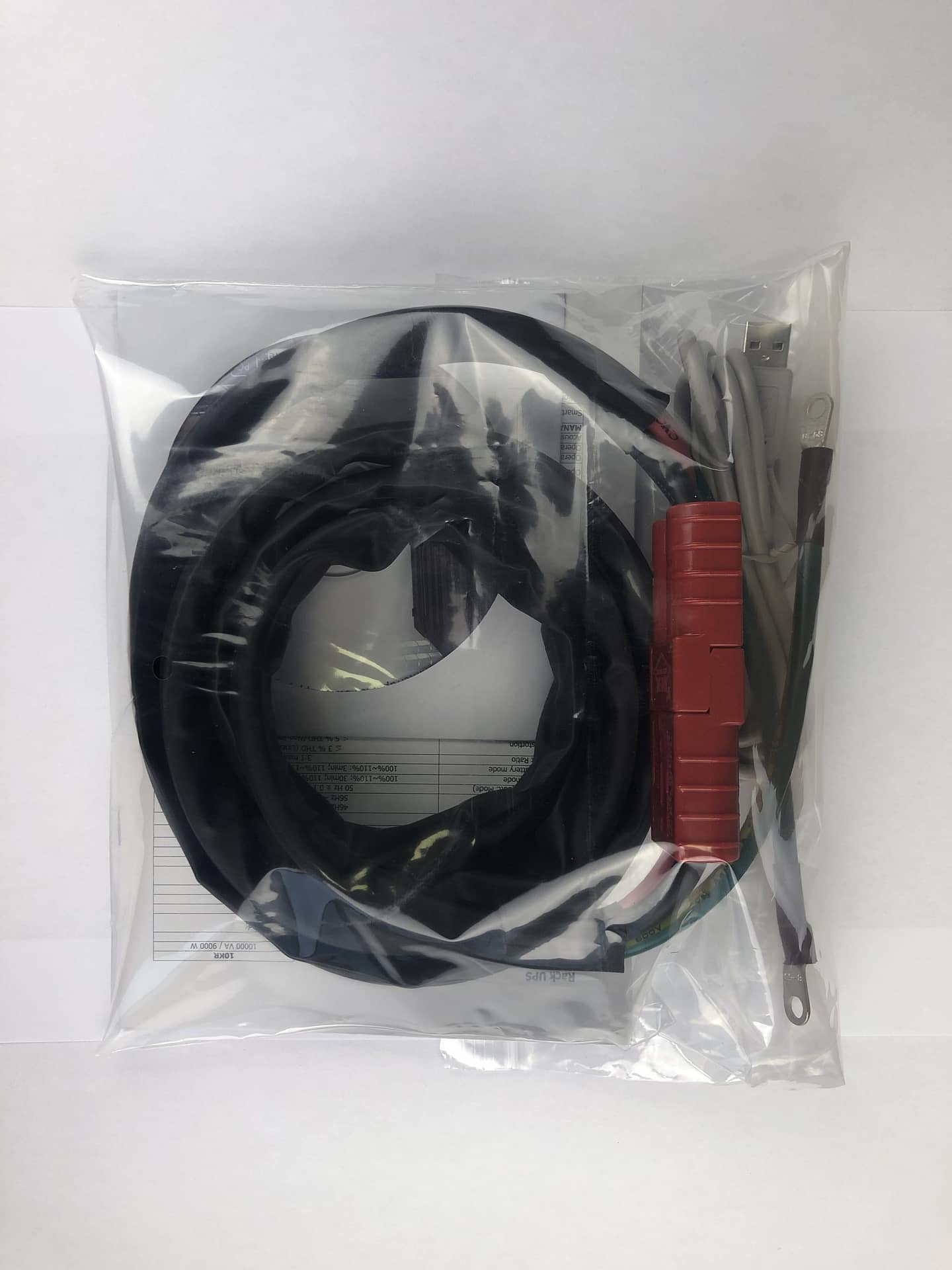

Packaging contentUPS, user manual, software CD, USB cable, cable for battery pack
