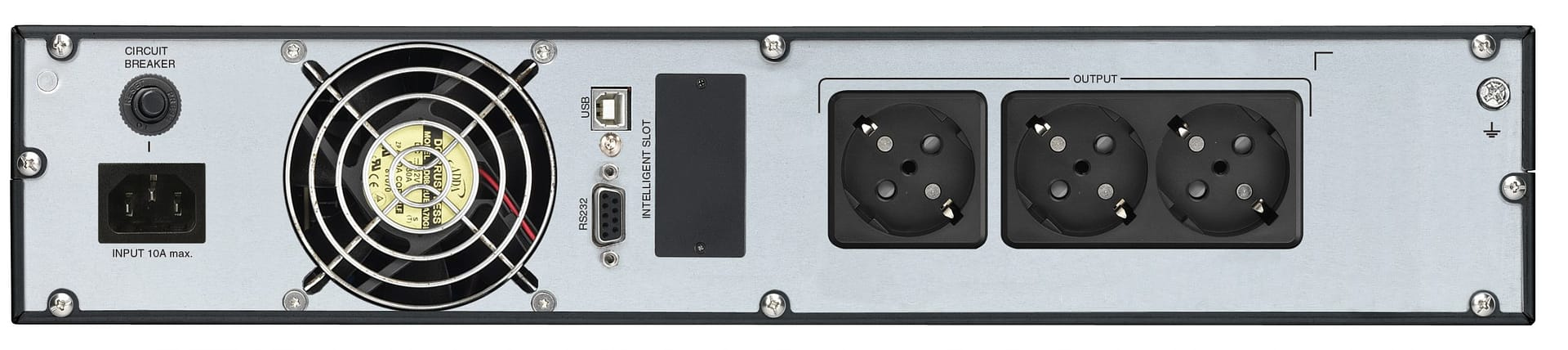

FSP Champ Rack 2K
FSP

Champ Rack 2K

Model Champ Rack 2KPart no. PPF18A1401EAN 4713224520617

55 specifications
  • Battery9 Ah
  • Noise50 dB
  • TypeRackmount
  • Weight19 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
See all specifications

Overview

Battery
9 Ah
Noise
50 dB
Type
Rackmount
Weight
19 kg
Colour
Black
UPS topology
Double-conversion (Online)
Brand
FSP
Model
Champ Rack 2K
Part number
PPF18A1401
EAN / UPC
4713224520617
Also known as
FSP Champ Rack 2K uninterruptible power supply (UPS) Double-conversion (Online) 2 kVA 1800 W 3 AC outlet(s)

Specifications

55 specifications in 12 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity2 kVA
Output power1800 W
WaveformPure sine
Input operation voltage (min)120 V
Input operation voltage (max)300 V
Input frequency40 - 70 Hz
Output operation voltage (min)110 V
Output operation voltage (max)240 V
Output frequency47/63 Hz
Output frequency regulation0 Hz
Output voltage regulation1%
Response time0 ms
Power factor0.99
Crest factor3:1
Total Harmonic Distortion (THD) (linear load)3%
Total Harmonic Distortion (THD) (non-linear load)6%
Noise level50 dB
Audible alarm(s)Yes
Audible alarm modesAlarm when on battery, Fault, Low battery alarm, Overload alarm

Ports & interfaces

AC outlet typesType F
AC outlets quantity3 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
USB port typeUSB Type-B
Serial interfaceYes
Serial interface typeRS-232
RS-232 ports1

Battery

Battery capacity9 Ah
Battery voltage12 V
Number of battery cells4
Battery recharge time(90%)4 h

Design

Form factorRackmount
Product colourBlack
Rack capacity2U
Cooling typeActive
Built-in fanYes
Control typeButtons
Display typeLCD
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)20 - 90%

Packaging content

Batteries includedYes
Cables includedInput power cable, USB cable
ManualYes

Certificates

Compliance certificatesCE

Sustainability

Sustainability complianceYes

Weight & dimensions

Width438 mm
Depth410 mm
Height88 mm
Weight19 kg

Packaging data

Software CDYes

Logistics data

Harmonized System (HS) code85078000

Other features

Number of phases1
Packaging contentUPS, Power cable, USB cable, Software on CD, User manual
