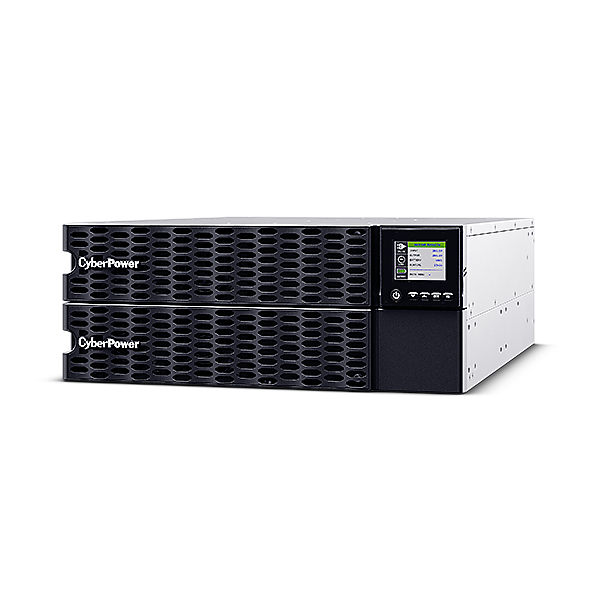

OL8KERTHD uninterruptible power supply (UPS) Double-conversion (Online) 8 kVA
8000 W 11 AC outlet(s)
Model OL8KERTHDEAN 4711027799018
69 specifications
- Noise66 dB
- TypeRackmount/Tower
- Weight71 kg
- ColourBlack
- UPS topologyDouble-conversion (Online)
- Power plugTerminal
Overview
- Noise
- 66 dB
- Type
- Rackmount/Tower
- Weight
- 71 kg
- Colour
- Black
- UPS topology
- Double-conversion (Online)
- Power plug
- Terminal
- Brand
- CyberPower
- Model
- OL8KERTHD
- Part number
- OL8KERTHD
- EAN / UPC
- 4711027799018
- Also known as
- CyberPower OL8KERTHD uninterruptible power supply (UPS) Double-conversion (Online) 8 kVA 8000 W 11 AC outlet(s)
Specifications
69 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 8 kVA |
| Output power | 8000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 200 V |
| Input operation voltage (max) | 240 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Maximum current | 44 A |
| Surge energy rating | 2430 J |
| Response time | 0 ms |
| Heat dissipation | 1603 BTU/h |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency (ECO mode) | 98% |
| Power factor | 1 |
| Input power factor | 0.99 |
| Output power factor | 1 |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 66 dB |
| Power protection features | Overload |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm |
| Management protocols | SNMP/HTTP |
| Power source type | AC |
Ports & interfaces
| Specification | Value |
|---|---|
| AC outlet types | C13 coupler, C19 coupler, Terminal |
| Power plug | Terminal |
| AC outlets quantity | 11 AC outlet(s) |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Emergency Power Off (EPO) connector | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 3.8 min |
| Typical backup time at half load | 11 min |
| Battery recharge time | 4 h |
| Hot-swap battery | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Rack capacity | 4U |
| Control type | Buttons |
| Display type | LCD |
| LED indicators | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4500 m |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Serial, USB cable |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Certification | EAC, RCM |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 433 mm |
| Depth | 720 mm |
| Height | 173 mm |
| Weight | 71 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 590 mm |
| Package depth | 890 mm |
| Package height | 488 mm |
| Package weight | 90 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 8504408690 |
| Country of origin | China |
