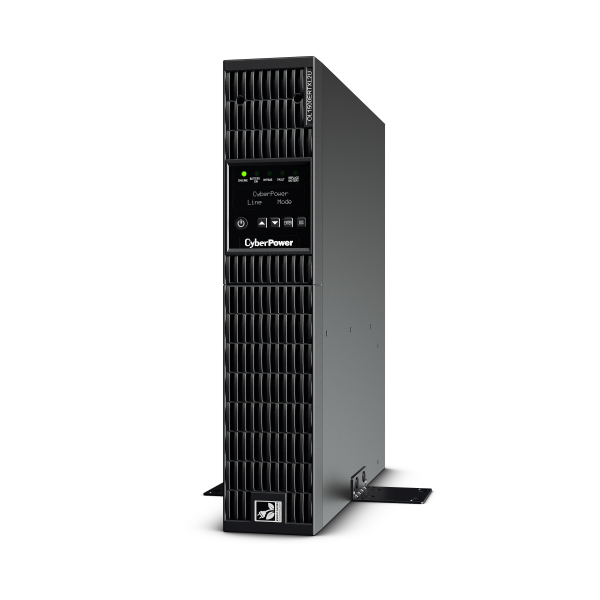

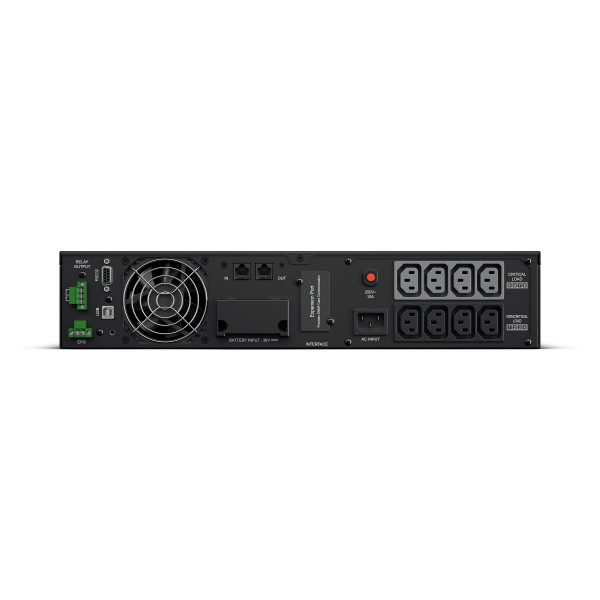

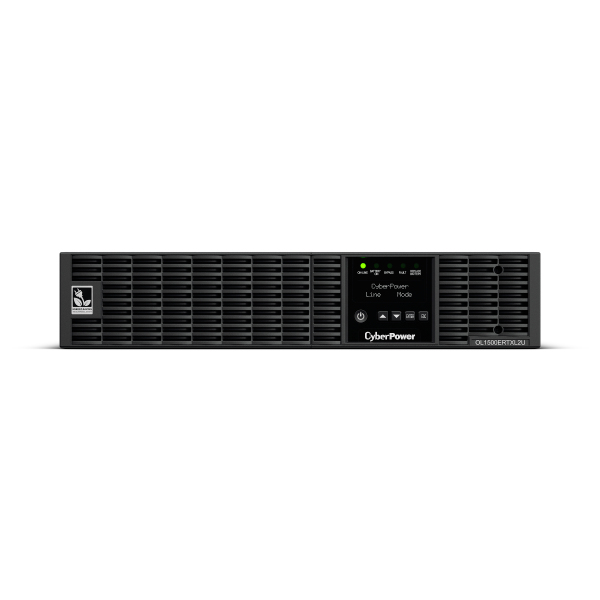

CyberPower OL1500ERTXL2U uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA

CyberPower OL1500ERTXL2U uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA

1350 W 8 AC outlet(s)

Model OL1500ERTXL2UEAN 4712364143601

75 specifications
  • TypeRackmount/Tower
  • Weight18 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • AC outlet typesC13 coupler
  • Battery technologySealed Lead Acid (VRLA)
See all specifications

Overview

Type
Rackmount/Tower
Weight
18 kg
Colour
Black
UPS topology
Double-conversion (Online)
AC outlet types
C13 coupler
Battery technology
Sealed Lead Acid (VRLA)
Brand
CyberPower
Model
OL1500ERTXL2U
Part number
OL1500ERTXL2U
EAN / UPC
4712364143601, 4712856279825, 5050914923471
Also known as
CyberPower OL1500ERTXL2U uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1350 W 8 AC outlet(s)

Specifications

75 specifications in 12 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity1.5 kVA
Output power1350 W
WaveformPure sine
Input operation voltage (min)190 V
Input operation voltage (max)300 V
Input frequency40/70 Hz
Output operation voltage (min)200 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Maximum current7.5 A
Surge energy rating1780 J
Response time0 ms
Heat dissipation512 BTU/h
Output power factor0.9
Emergency Power Off (EPO)Yes
Total Harmonic Distortion (THD) (linear load)3%
Total Harmonic Distortion (THD) (non-linear load)5%
EMI/RFI noise filteringYes
Surge protectionYes
Surge protection featuresFax, Modem, Network, Telephone
Power protection featuresOverload, Short circuit
Audible alarm(s)Yes
Audible alarm modesBattery replacement

Ports & interfaces

AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity8 AC outlet(s)
USB 2.0 ports quantity1
Serial interfaceYes
Serial interface typeRS-232
RS-232 ports1
Serial ports quantity1
Ethernet LAN (RJ-45) ports2
Emergency Power Off (EPO) connectorYes

Battery

Battery technologySealed Lead Acid (VRLA)
Typical backup time at full load3 min
Typical backup time at half load11 min
Battery recharge time5 h
Hot-swap batteryYes
Cold startYes

Design

Form factorRackmount/Tower
Product colourBlack
Housing materialMetal
Rack capacity2U
Cooling typeActive
Built-in fanYes
Control typeButtons
Display typeLCD
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 45 °C
Operating relative humidity (H-H)0 - 90%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m

Packaging content

Rack mount kitYes
Cables includedSerial, USB cable
ManualYes

Certificates

Compliance certificatesC-TICK, CE, RCM, RoHS

Sustainability

Sustainability complianceYes

Weight & dimensions

Width433 mm
Depth430 mm
Height88 mm
Weight18 kg

Packaging data

Bundled softwarePowerPanel® Business Edition
Package width575 mm
Package depth550 mm
Package height240 mm
Package weight24.5 kg

Logistics data

Harmonized System (HS) code8504408590
Country of originChina
Warranty period3 year(s)

Other features

Battery typeRBP0074
Compatible operating systemsWindows 7 / Vista / XP / 2000, Server 2008 / 2003, Linux
Overload protectionYes
