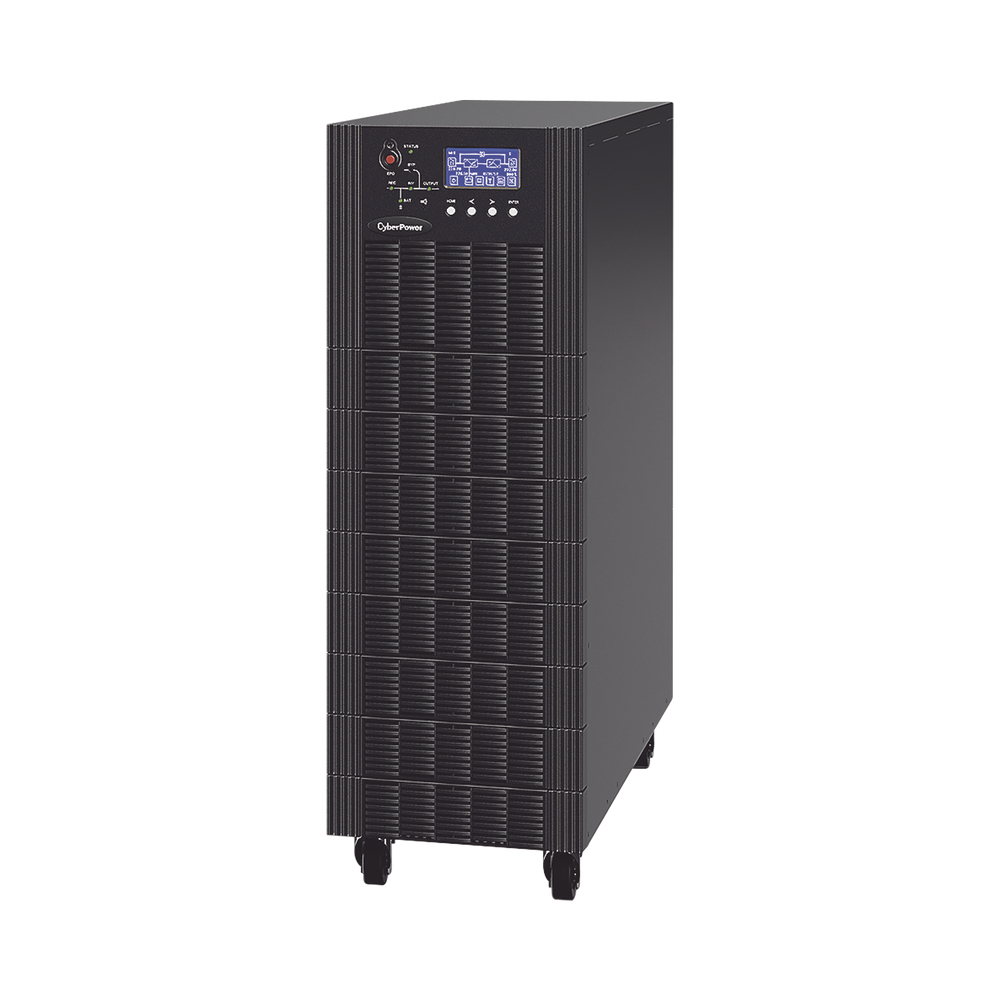

CyberPower HSTP3T30K100P5M uninterruptible… Specs

Overview

Noise: 70 dB
Type: Tower
Weight: 90 kg
Colour: Black
UPS topology: Double-conversion (Online)
Serial interface: Yes

Brand: CyberPower
Category: Uninterruptible Power Supplies (UPSs)
Model: HSTP3T30K100P5M
Part number: HSTP3T30K100P5M
Also known as: CyberPower HSTP3T30K100P5M uninterruptible power supply (UPS) Double-conversion (Online) 30 kVA 27000 W

Specifications

42 specifications in 7 groups

Features

Specification	Value
UPS topology	Double-conversion (Online)
Output power capacity	30 kVA
Output power	27000 W
Waveform	Pure sine
Input operation voltage (min)	167 V
Input operation voltage (max)	260 V
Input frequency	50/60 Hz
Output operation voltage (min)	208 V
Output operation voltage (max)	220 V
Output frequency regulation	40 - 70 Hz
Efficiency	94%
Efficiency (Battery mode)	93%
Power factor	0.9
Input power factor	0.99
Power Factor Correction (PFC) type	Active
Crest factor	3:1
Emergency Power Off (EPO)	Yes
Total Harmonic Distortion (THD) (linear load)	1%
Total Harmonic Distortion (THD) (non-linear load)	5.5%
Noise level	70 dB
Audible alarm(s)	Yes
Audible alarm modes	Fault, Low battery alarm, Overload alarm
Maximum number of paralleling UPSs	4

Ports & interfaces

Specification	Value
Serial interface	Yes
Serial interface type	RS-232, RS-485
RS-232 ports	1
Emergency Power Off (EPO) connector	Yes

Battery

Specification	Value
Typical backup time at full load	12 min
Typical backup time at half load	25 min

Design

Specification	Value
Form factor	Tower
Product colour	Black
Housing material	Metal
Display type	LCD
LED indicators	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95%

Weight & dimensions

Specification	Value
Width	350 mm
Depth	738 mm
Height	1335 mm
Weight	90 kg

Other features

Specification	Value
Bypass	Automatic, Manual
