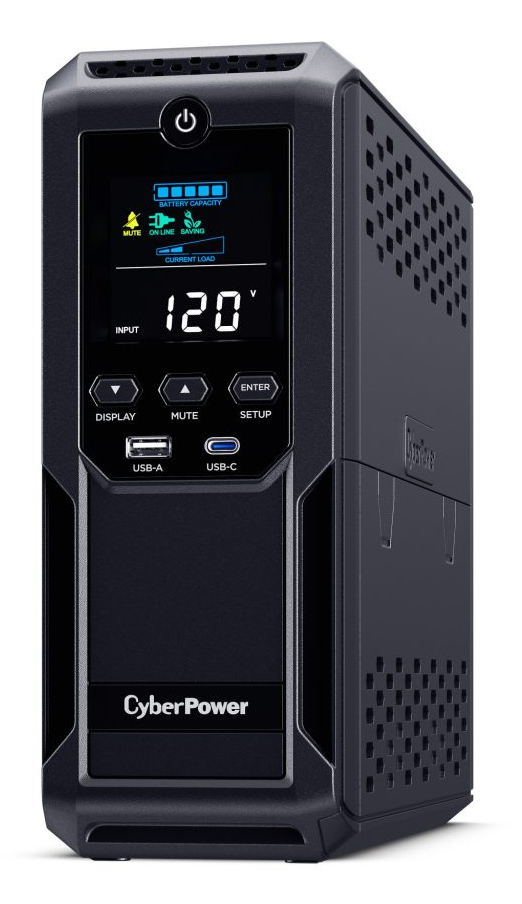

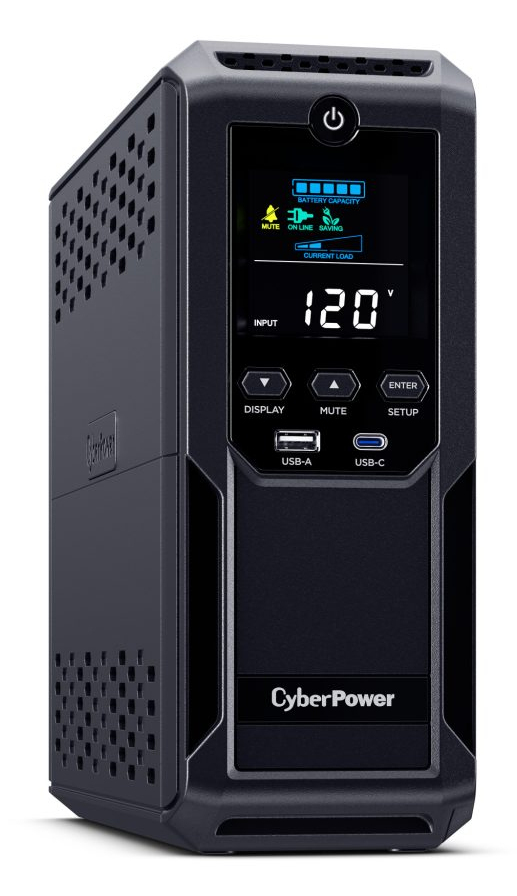

CyberPower LCD BRG1500AVRLCD2 uninterruptible power supply (UPS) Line-Interactive 1.5 kVA
CyberPower

LCD BRG1500AVRLCD2 uninterruptible power supply (UPS) Line-Interactive 1.5 kVA

900 W 12 AC outlet(s)

Model BRG1500AVRLCD2EAN 649532933655

70 specifications
  • Battery18000 mAh
  • TypeTower
  • Weight10.8 kg
  • ColourBlack
  • UPS topologyLine-Interactive
  • AC outlet typesNEMA 5-15R
See all specifications

Overview

Battery
18000 mAh
Type
Tower
Weight
10.8 kg
Colour
Black
UPS topology
Line-Interactive
AC outlet types
NEMA 5-15R
Brand
CyberPower
Model
BRG1500AVRLCD2
Part number
BRG1500AVRLCD2
EAN / UPC
649532933655
Also known as
CyberPower LCD BRG1500AVRLCD2 uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 900 W 12 AC outlet(s)

Specifications

70 specifications in 9 groups

Features

UPS topologyLine-Interactive
Output power capacity1.5 kVA
Output power900 W
WaveformSimulated sine
Input operation voltage (min)57 V
Input operation voltage (max)120 V
Input frequency57/63 Hz
Output operation voltage (min)114 V
Output operation voltage (max)126 V
Output frequency60 Hz
Output frequency regulation1 Hz
Output voltage regulation5%
Automatic Voltage Regulation (AVR)Yes
Maximum current15 A
Surge energy rating1500 J
Response time4 ms
Heat dissipation205 BTU/h
Number of input phases1
Number of output phases1
Efficiency95%

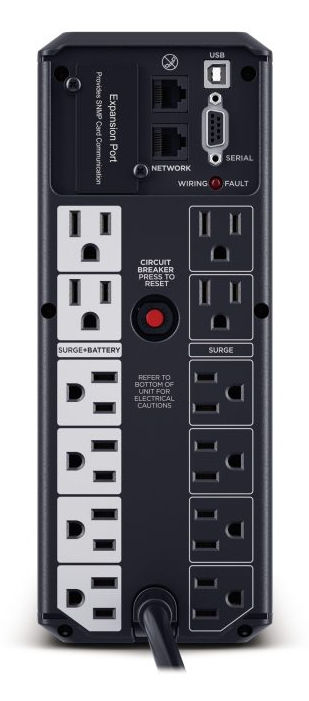

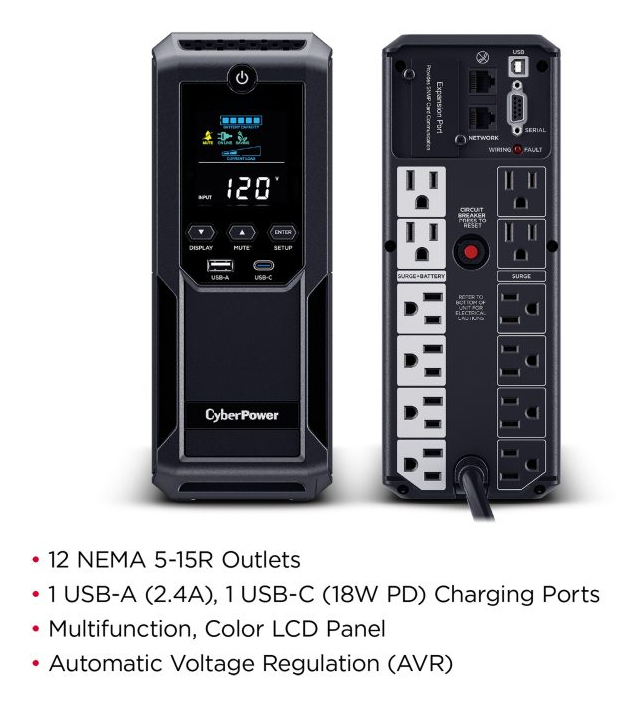

Ports & interfaces

AC outlet typesNEMA 5-15R
Power plugNEMA 5-15P
AC outlets quantity12 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
USB port typeUSB Type-B
Serial interfaceYes
Serial interface typeRS-232
Serial ports quantity1
Network card slotYes
Ethernet LAN (RJ-45) ports2

Battery

Battery replacement accessibilityEnd-user
Battery capacity18000 mAh
Battery technologySealed Lead Acid (VRLA)
Battery capacity18 Ah
Battery voltage24 V
Number of batteries included2 pc(s)
Number of batteries supported2
Typical backup time at full load2 min
Typical backup time at half load12 min
Battery life (max)6 year(s)
Battery recharge time8 h
Cold startYes
Replacement battery cartridgeRB1290X2E

Design

Form factorTower
Product colourBlack
Housing materialPlastic
Control typeButtons
Display typeLCD
LED indicatorsPower, Battery level, Charging, Status

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3048 m
Non-operating altitude0 - 15239 m

Packaging content

Batteries includedYes
Cables includedUSB cable
ManualYes
Quick installation guideYes

Certificates

Compliance certificatesRoHS, UL, cUL, Federal Communications Commission (FCC)

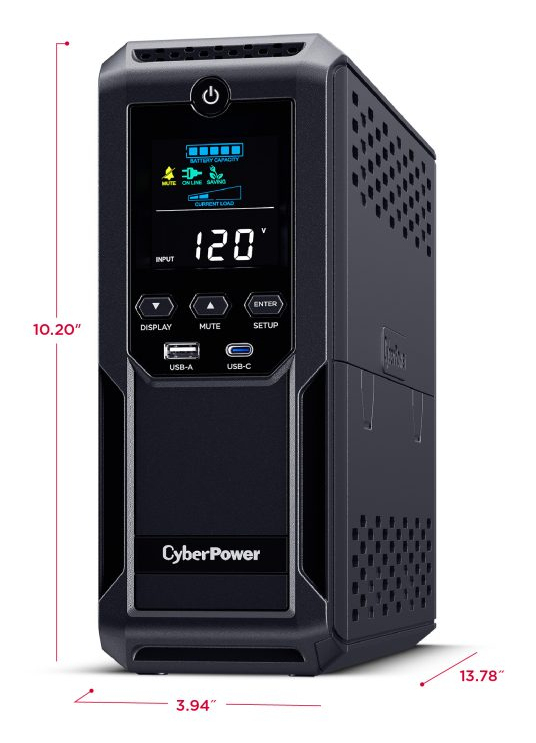

Weight & dimensions

Width100 mm
Depth350 mm
Height259 mm
Weight10.8 kg

Packaging data

Package width190 mm
Package depth450.1 mm
Package height368.1 mm
Package weight11.5 kg
Package typeBox

Energy efficiency

ENERGY STAR certified

Uninterruptible power supplies · model BRG1500AVRLCD2 · certified Jun 28, 2021 · United States, Taiwan, Canada

Average efficiency98.8 %
