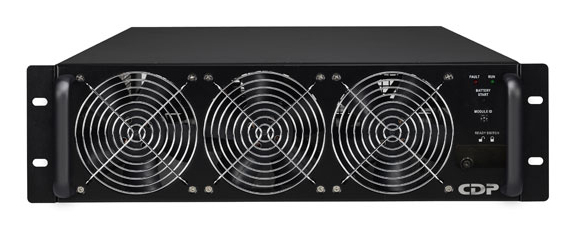

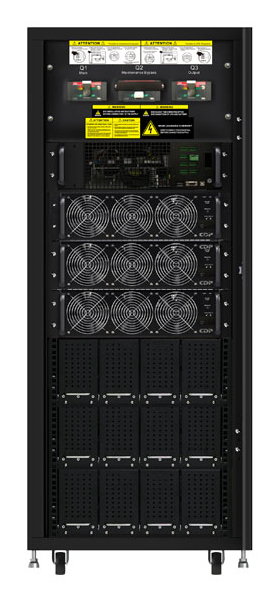

CDP UPO33-HM3AX 30U Hot swap Modular UPS housing for up to 3 UPO33-20PMAX
CDP

UPO33-HM3AX 30U Hot swap Modular UPS housing for up to 3 UPO33-20PMAX

10" TOUCH LCD PANEL, with STS 60KVA/60KW (without power module)

Model UPO33-HM3AXEAN 879071004381

52 specifications
  • TypeTower
  • Weight278.5 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • Battery voltage12 V
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Type
Tower
Weight
278.5 kg
Colour
Black
UPS topology
Double-conversion (Online)
Battery voltage
12 V
Operating temperature (T-T)
0 - 40 °C
Brand
CDP
Model
UPO33-HM3AX
Part number
UPO33-HM3AX
EAN / UPC
879071004381
Also known as
CDP UPO33-HM3AX 30U Hot swap Modular UPS housing for up to 3 UPO33-20PMAX, 10" TOUCH LCD PANEL, with STS 60KVA/60KW (without power module)

Specifications

52 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity20 kVA
Output power20000 W
WaveformPure sine
Input operation voltage (min)156 V
Input operation voltage (max)253 V
Input frequency40/70 Hz
Output operation voltage (max)208 V
Output frequency46/64 Hz
Output frequency regulation0.1 Hz
Output voltage regulation1%
Number of input phases3
Number of output phases3
Three-phase input voltage supported208 V
Three-phase output voltage supported208 V
Efficiency (On-line mode)96%
Power factor0.99
Crest factor3:1
Total Harmonic Distortion (THD) (linear load)2%
Total Harmonic Distortion (THD) (non-linear load)4%
Audible alarm(s)Yes
Audible alarm modesAlarm when on battery, Fault, Low battery alarm, Overload alarm

Battery

Battery voltage12 V
Number of batteries supported20
Battery recharge time(90%)4 h

Design

Form factorTower
Product colourBlack
Housing materialMetal
Cooling typeActive
Control typeTouch
Display typeLCD
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95%

Certificates

CertificationISO9001, ISO14001, CIDET, CE, ENERGY STAR, UL1778 Y FCC

Weight & dimensions

Width750 mm
Depth1220 mm
Height1650 mm
Weight278.5 kg

Packaging data

Package weight278 kg

Logistics data

Master (outer) case net weight278.5 kg
Pallet gross height2.17 m
Pallet gross length120 cm
Pallet gross weight278 kg
Pallet gross width100 cm
Master (outer) case width750 mm
Master (outer) case length1220 mm
Master (outer) case height1645 mm
Master (outer) case gross weight278 kg
Products per master (outer) case1 pc(s)

Other features

Number of phases3
Overload protectionYes
