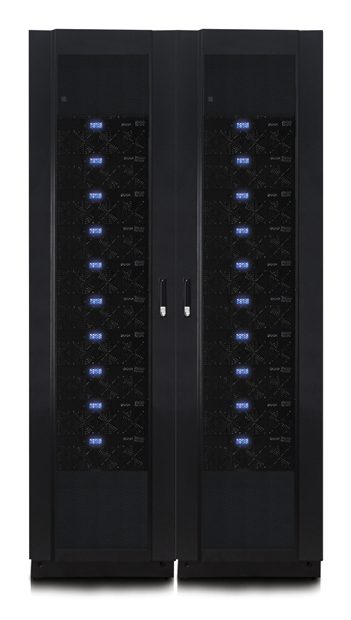

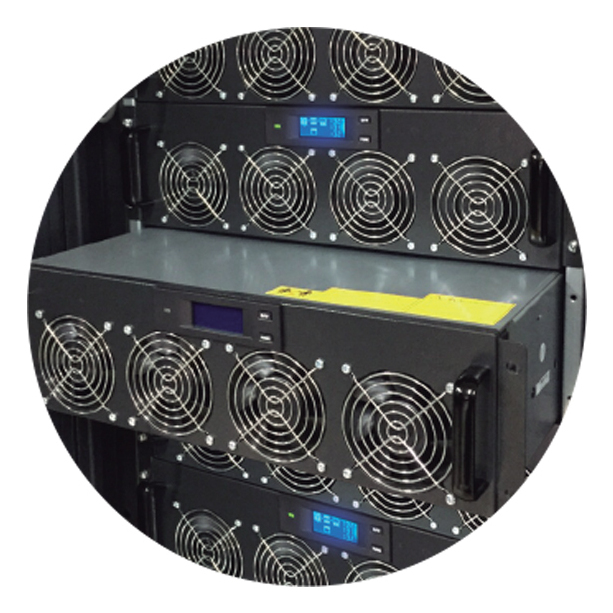

CDP UPO33-HM20 Half rack Hot swap Modular UPS housing for up to 20 pcs UPO33PM
CDP

UPO33-HM20 Half rack Hot swap Modular UPS housing for up to 20 pcs UPO33PM

Model UPO33-HM20EAN 879071008327

59 specifications
  • Noise60 dB
  • TypeTower
  • Weight715 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • USB portYes
See all specifications

Overview

Noise
60 dB
Type
Tower
Weight
715 kg
Colour
Black
UPS topology
Double-conversion (Online)
USB port
Yes
Brand
CDP
Model
UPO33-HM20
Part number
UPO33-HM20
EAN / UPC
879071008327
Also known as
CDP UPO33-HM20 Half rack Hot swap Modular UPS housing for up to 20 pcs UPO33PM

Specifications

59 specifications in 10 groups

Features

UPS topologyDouble-conversion (Online)
Input operation voltage (min)124 V
Input operation voltage (max)260 V
Input frequency50/60 Hz
Output operation voltage (min)208 V
Output operation voltage (max)380 V
Output frequency50/60 Hz
Output frequency regulation1 Hz
Output voltage regulation1%
Response time0 ms
Number of input phases3
Number of output phases3
Three-phase input voltage supported208,220 V
Three-phase output voltage supported208,220 V
Efficiency (On-line mode)95%
Efficiency (ECO mode)97%
Power factor0.9
Crest factor3:1
ECO modeYes
Emergency Power Off (EPO)Yes
Total Harmonic Distortion (THD) (linear load)2%
Total Harmonic Distortion (THD) (non-linear load)4%
EMI/RFI noise filteringYes
Noise level60 dB
Surge protectionYes

Ports & interfaces

USB portYes
Serial interfaceYes

Battery

Battery technologySealed Lead Acid (VRLA)
Typical backup time at full load5 min
Typical backup time at half load15 min
Battery recharge time(90%)4 h

Design

Form factorTower
Product colourBlack
Housing materialMetal
Cooling typeActive
Display typeLCD
International Protection (IP) codeIP20
Mean time between failures (MTBF)292000 h

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 60 °C
Operating relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m

Certificates

CertificationISO9001, ISO14001, CIDET, CE Y NOM

Weight & dimensions

Width1210 mm
Depth2160 mm
Height2060 mm
Weight715 kg

Packaging data

Package weight700 kg

Logistics data

Master (outer) case net weight715 kg
Pallet gross height2.2 m
Pallet gross length2.16 m
Pallet gross weight730 kg
Pallet gross width121 cm
Master (outer) case width1210 mm
Master (outer) case length2160 mm
Master (outer) case height2060 mm
Master (outer) case gross weight700 kg
Products per master (outer) case1 pc(s)

Other features

Number of phases3
