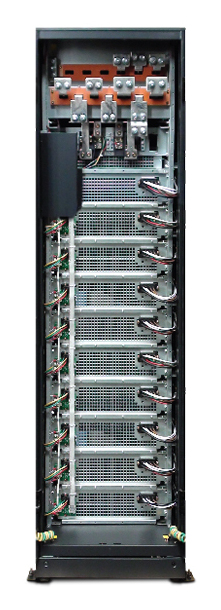

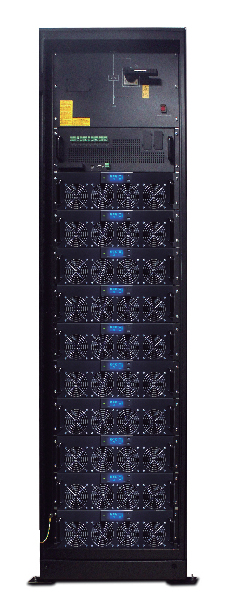

CDP UPO33-HM10 Half rack Hot swap Modular UPS housing for up to 10 pcs UPO33PM
CDP

UPO33-HM10 Half rack Hot swap Modular UPS housing for up to 10 pcs UPO33PM

Model UPO33-HM10EAN 879071008310

59 specifications
  • Noise60 dB
  • TypeTower
  • Weight297 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • USB portYes
See all specifications

Overview

Noise
60 dB
Type
Tower
Weight
297 kg
Colour
Black
UPS topology
Double-conversion (Online)
USB port
Yes
Brand
CDP
Model
UPO33-HM10
Part number
UPO33-HM10
EAN / UPC
879071008310
Also known as
CDP UPO33-HM10 Half rack Hot swap Modular UPS housing for up to 10 pcs UPO33PM

Specifications

59 specifications in 10 groups

Features

UPS topologyDouble-conversion (Online)
Input operation voltage (min)124 V
Input operation voltage (max)260 V
Input frequency50/60 Hz
Output operation voltage (min)208 V
Output operation voltage (max)380 V
Output frequency50/60 Hz
Output frequency regulation1 Hz
Output voltage regulation1%
Response time0 ms
Number of input phases3
Number of output phases3
Three-phase input voltage supported208,220 V
Three-phase output voltage supported208,220 V
Efficiency (On-line mode)95%
Efficiency (ECO mode)97%
Power factor0.9
Crest factor3:1
ECO modeYes
Emergency Power Off (EPO)Yes
Total Harmonic Distortion (THD) (linear load)2%
Total Harmonic Distortion (THD) (non-linear load)4%
EMI/RFI noise filteringYes
Noise level60 dB
Surge protectionYes

Ports & interfaces

USB portYes
Serial interfaceYes

Battery

Battery technologySealed Lead Acid (VRLA)
Typical backup time at full load5 min
Typical backup time at half load15 min
Battery recharge time(90%)4 h

Design

Form factorTower
Product colourBlack
Housing materialMetal
Cooling typeActive
Display typeLCD
International Protection (IP) codeIP20
Mean time between failures (MTBF)292000 h

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 60 °C
Operating relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m

Certificates

CertificationISO9001, ISO14001, CIDET, CE Y NOM

Weight & dimensions

Width1255 mm
Depth755 mm
Height2070 mm
Weight297 kg

Packaging data

Package weight282 kg

Logistics data

Master (outer) case net weight297 kg
Pallet gross height2.21 m
Pallet gross length75.5 cm
Pallet gross weight312 kg
Pallet gross width125.5 cm
Master (outer) case width1255 mm
Master (outer) case length755 mm
Master (outer) case height2070 mm
Master (outer) case gross weight282 kg
Products per master (outer) case1 pc(s)

Other features

Number of phases3
