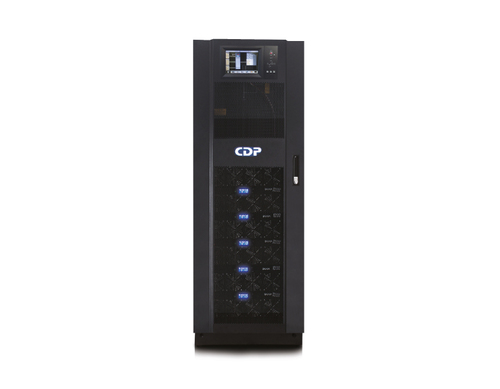

CDP UPO33-40HFAX 40KVA/40KW PF 1.0, Online UPS 3PH HF, LCD UL 208/208 Vac

CDP UPO33-40HFAX 40KVA/40KW PF 1.0, Online UPS 3PH HF, LCD UL 208/208 Vac

Model UPO33-40HFAXEAN 879071004756

59 specifications
  • Noise60 dB
  • TypeTower
  • Weight160.5 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • USB portYes
See all specifications

Overview

Noise
60 dB
Type
Tower
Weight
160.5 kg
Colour
Black
UPS topology
Double-conversion (Online)
USB port
Yes
Brand
CDP
Model
UPO33-40HFAX
Part number
UPO33-40HFAX
EAN / UPC
879071004756
Also known as
CDP UPO33-40HFAX 40KVA/40KW PF 1.0, Online UPS 3PH HF, LCD UL 208/208 Vac

Specifications

59 specifications in 10 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity40 kVA
Output power40000 W
WaveformSine
Input operation voltage (min)173 V
Input operation voltage (max)253 V
Input frequency50/60 Hz
Output operation voltage (max)220 V
Output frequency50/60 Hz
Output frequency regulation0.1 Hz
Output voltage regulation1%
Surge energy rating0 J
Response time0 ms
Number of input phases3
Number of output phases3
Three-phase input voltage supported208 V
Three-phase output voltage supported208 V
Efficiency (On-line mode)97%
Efficiency (ECO mode)99%
Power factor1
Crest factor3:1
ECO modeYes
Emergency Power Off (EPO)Yes
Total Harmonic Distortion (THD) (linear load)2%
Total Harmonic Distortion (THD) (non-linear load)4%
EMI/RFI noise filteringYes
Noise level60 dB
Surge protectionYes
Power protection featuresDischarge overcurrent, Overload

Ports & interfaces

USB portYes
Serial interfaceYes

Battery

Battery technologySealed Lead Acid (VRLA)
Number of batteries included0 pc(s)
Battery recharge time(90%)4 h

Design

Form factorTower
Product colourBlack
Housing materialMetal
Cooling typeActive
Display typeLCD
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 60 °C
Operating relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m

Certificates

CertificationISO9001, ISO14001, Retie, UL1778 Y FCC

Weight & dimensions

Width550 mm
Depth930 mm
Height1390 mm
Weight160.5 kg

Packaging data

Package weight160 kg

Logistics data

Master (outer) case net weight160.5 kg
Pallet gross height2.17 m
Pallet gross length120 cm
Pallet gross weight160 kg
Pallet gross width100 cm
Master (outer) case gross weight160 kg
Products per master (outer) case1 pc(s)

Other features

Number of phases3
Overload protectionYes
