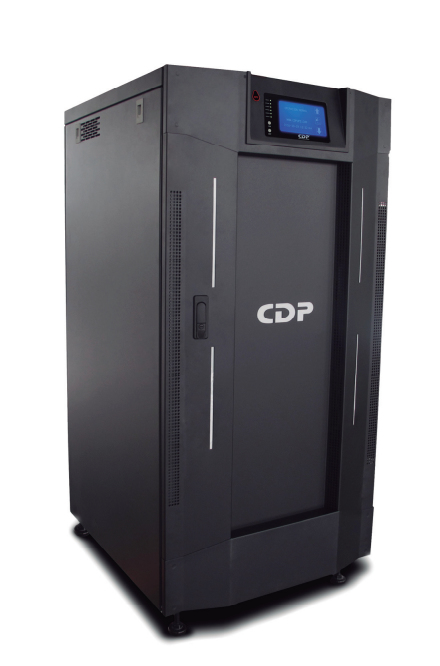

CDP UPO33-100PF365 100KVA/90KW PF 0.9, Online 3-phase UPS Low Freq. 208 Vac Input
CDP

UPO33-100PF365 100KVA/90KW PF 0.9, Online 3-phase UPS Low Freq. 208 Vac Input

208v and 120 vac Output

Model UPO33-100PF365EAN 879071001465

54 specifications
  • Battery65 Ah
  • Noise60 dB
  • TypeTower
  • Weight1136.4 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
See all specifications

Overview

Battery
65 Ah
Noise
60 dB
Type
Tower
Weight
1136.4 kg
Colour
Black
UPS topology
Double-conversion (Online)
Brand
CDP
Model
UPO33-100PF365
Part number
UPO33-100PF365
EAN / UPC
879071001465
Also known as
CDP UPO33-100PF365 100KVA/90KW PF 0.9, Online 3-phase UPS Low Freq. 208 Vac Input, 208v and 120 vac Output

Specifications

54 specifications in 8 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity100 kVA
Output power90000 W
WaveformSine
Input operation voltage (min)156 V
Input operation voltage (max)260 V
Input frequency50/60 Hz
Output frequency50/60 Hz
Output voltage regulation1%
Surge energy rating20 J
Response time0 ms
Number of input phases3
Number of output phases3
Three-phase input voltage supported208 V
Three-phase output voltage supported208 V
Efficiency (On-line mode)92%
Efficiency (ECO mode)97%
Power factor0.9
Crest factor3:1
Emergency Power Off (EPO)Yes
Total Harmonic Distortion (THD) (linear load)2%
Total Harmonic Distortion (THD) (non-linear load)5%
EMI/RFI noise filteringYes
Noise level60 dB
Surge protectionYes
Power protection featuresDischarge overcurrent, Overload

Ports & interfaces

Serial interfaceYes
Serial interface typeRS-232

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity65 Ah
Number of batteries supported32
Typical backup time at full load5 min
Battery recharge time(90%)4 h

Design

Form factorTower
Product colourBlack
Housing materialMetal
Cooling typeActive
Display typeLCD
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 60 °C
Operating relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m

Weight & dimensions

Width1012 mm
Depth1295 mm
Height2078 mm
Weight1136.4 kg

Packaging data

Package weight1212.4 kg

Logistics data

Master (outer) case net weight1136.4 kg
Master (outer) case width1012 mm
Master (outer) case length1295 mm
Master (outer) case height2078 mm
Master (outer) case gross weight1212.4 kg
Products per master (outer) case1 pc(s)
