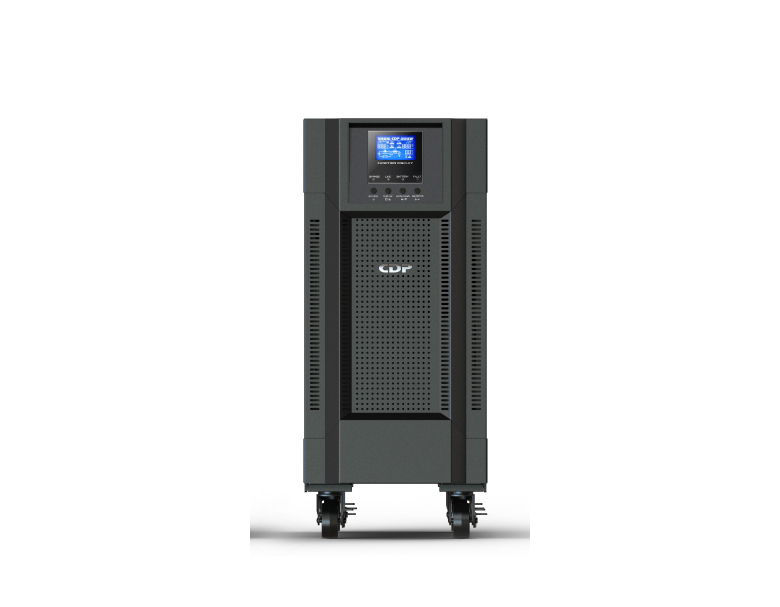

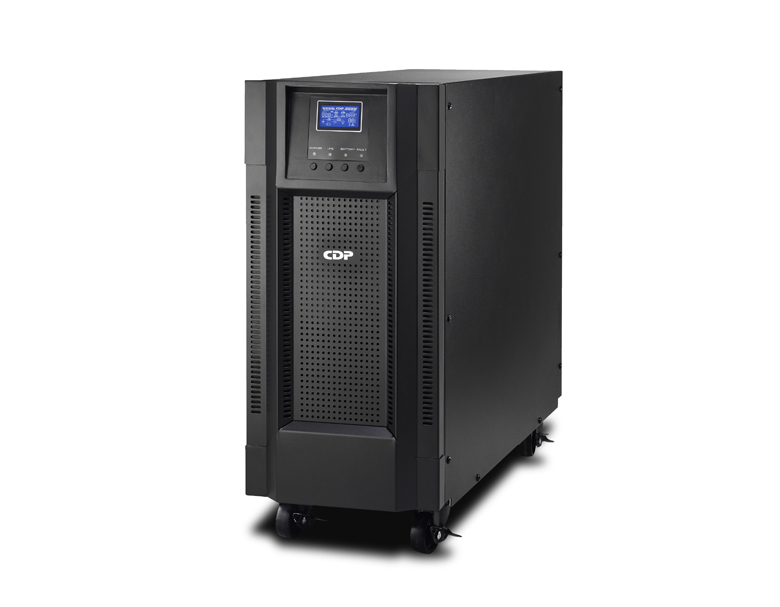

CDP UPO22-6AX 6KVA/6KW PF 1.0, Online UPS Tower, isolation transformer 220/240 to 208 Vac Input 220-240V AC, output split 110/115/120V and 220/230/240V LCD UL,
CDP

UPO22-6AX 6KVA/6KW PF 1.0, Online UPS Tower, isolation transformer 220/240 to 208 Vac Input 220-240V AC, output split 110/115/120V and 220/230/240V LCD UL,

Model UPO22-6AXEAN 879071000550

37 specifications
  • Battery9 Ah
  • TypeTower
  • Weight104.6 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • Battery technologyLead-Acid
See all specifications

Overview

Battery
9 Ah
Type
Tower
Weight
104.6 kg
Colour
Black
UPS topology
Double-conversion (Online)
Battery technology
Lead-Acid
Brand
CDP
Model
UPO22-6AX
Part number
UPO22-6AX
EAN / UPC
879071000550
Also known as
CDP UPO22-6AX 6KVA/6KW PF 1.0, Online UPS Tower, isolation transformer 220/240 to 208 Vac Input 220-240V AC, output split 110/115/120V and 220/230/240V LCD UL,

Specifications

37 specifications in 6 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity6 kVA
Output power6000 W
WaveformSine
Input operation voltage (min)110 V
Input operation voltage (max)300 V
Input frequency50/60 Hz
Surge energy rating660 J
Response time0 ms
Crest factor3:1
Input current Total Harmonic Distortion (THD)3%

Battery

Battery technologyLead-Acid
Battery capacity9 Ah
Battery voltage12 V
Number of batteries supported20
Typical backup time at full load5 min
Typical backup time at half load10 min
Battery recharge time4 h

Design

Form factorTower
Product colourBlack
Cooling typeActive
LED indicatorsYes

Weight & dimensions

Width200 mm
Depth460 mm
Height720 mm
Weight104.6 kg

Packaging data

Package weight111.2 kg

Logistics data

Master (outer) case net weight104.6 kg
Pallet gross height12.1 m
Pallet gross length114 cm
Pallet gross weight657 kg
Pallet gross width68 cm
Master (outer) case width380 mm
Master (outer) case length680 mm
Master (outer) case height1074 mm
Master (outer) case gross weight111.2 kg
Products per master (outer) case1 pc(s)
