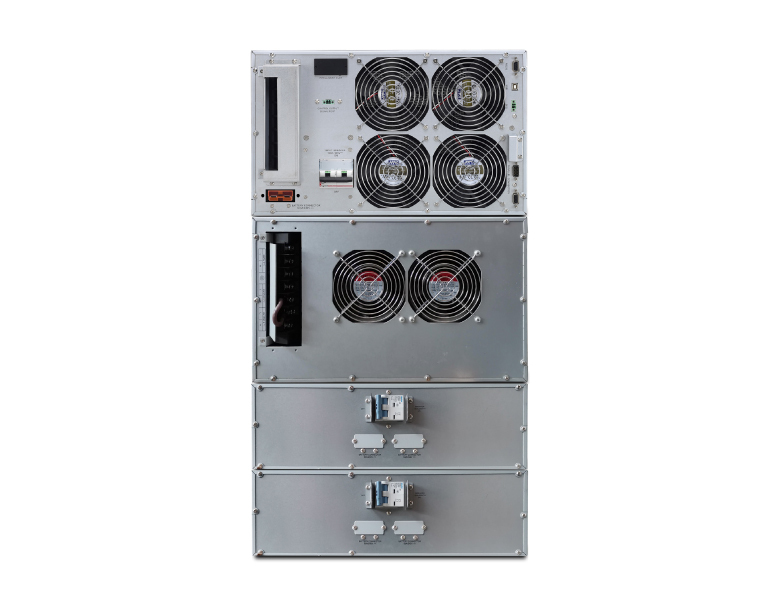

CDP UPO22-20RTK 20KVA/16KW PF 0.8, Online UPS KIT Include PM TM BM (2) MBS, CE, FCC, 220/230/240V 18U
CDP

UPO22-20RTK 20KVA/16KW PF 0.8, Online UPS KIT Include PM TM BM (2) MBS, CE, FCC, 220/230/240V 18U

Model UPO22-20RTK

44 specifications
  • Battery9 Ah
  • Noise60 dB
  • TypeTower
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • USB portYes
See all specifications

Overview

Battery
9 Ah
Noise
60 dB
Type
Tower
Colour
Black
UPS topology
Double-conversion (Online)
USB port
Yes
Brand
CDP
Model
UPO22-20RTK
Part number
UPO22-20RTK
Also known as
CDP UPO22-20RTK 20KVA/16KW PF 0.8, Online UPS KIT Include PM TM BM (2) MBS, CE, FCC, 220/230/240V 18U

Specifications

44 specifications in 6 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity20 kVA
Output power16000 W
WaveformPure sine
Input operation voltage (min)110 V
Input operation voltage (max)300 V
Input frequency50/60 Hz
Output operation voltage (min)104 V
Output operation voltage (max)240 V
Output voltage regulation-1 - 1%
Response time0 ms
Efficiency85%
Power factor0.99
Crest factor3:1
Output voltage Total Harmonic Distortion (THD)2%
Noise level60 dB
Power protection featuresOverload

Ports & interfaces

USB portYes
USB port typeUSB Type-B
Serial interfaceYes
Serial interface typeRS-232

Battery

Battery capacity9 Ah
Battery voltage12 V
Number of batteries included40 pc(s)
Typical backup time at full load5 min
Typical backup time at half load15 min
Battery recharge time(90%)5 h
Charging current2 A

Design

Form factorTower
Product colourBlack
Extended battery module rack capacity6U
Rack capacity6U
ModularYes
Cooling typeActive
Built-in fanYes
Display typeLCD

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width460 mm
Depth668 mm
Height266 mm
Extended battery module width46 cm
Extended battery module depth58 cm
Extended battery module height13 cm
