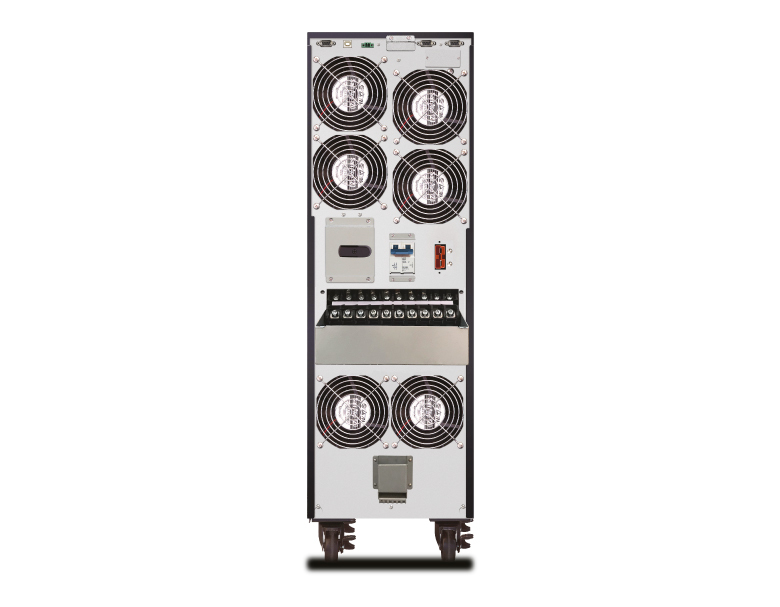

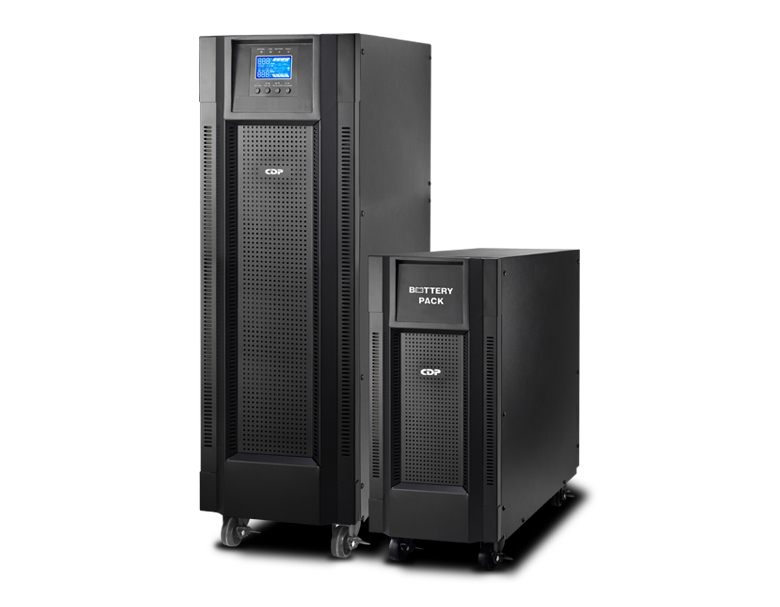

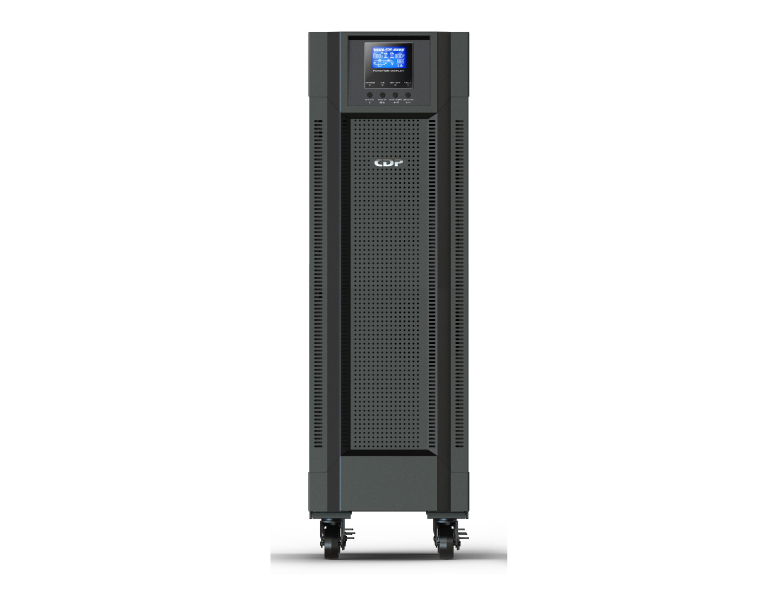

CDP UPO22-15K 15KVA/12KW 0,8 PF, Online UPS KIT include PM and BM Tower Iso Xfrm Input 220-240V AC, output split 110/115/120V and 220/230/240V
CDP

UPO22-15K 15KVA/12KW 0,8 PF, Online UPS KIT include PM and BM Tower Iso Xfrm Input 220-240V AC, output split 110/115/120V and 220/230/240V

Model UPO22-15K

64 specifications
  • Battery7 Ah
  • Noise50 dB
  • TypeTower
  • Weight148 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
See all specifications

Overview

Battery
7 Ah
Noise
50 dB
Type
Tower
Weight
148 kg
Colour
Black
UPS topology
Double-conversion (Online)
Brand
CDP
Model
UPO22-15K
Part number
UPO22-15K
Also known as
CDP UPO22-15K 15KVA/12KW 0,8 PF, Online UPS KIT include PM and BM Tower Iso Xfrm Input 220-240V AC, output split 110/115/120V and 220/230/240V

Specifications

64 specifications in 8 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity15 kVA
Output power12000 W
WaveformSine
Input operation voltage (max)208 V
Input frequency50/60 Hz
Output operation voltage (min)208 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Output voltage regulation-1 - 1%
Surge energy rating1270 J
Response time0 ms
Efficiency92%
Efficiency (ECO mode)94%
Input power factor0.99
Output power factor0.8
Crest factor3:1
Input current Total Harmonic Distortion (THD)5%
Noise level50 dB
Surge protectionYes
Power protection featuresOverload, Short circuit
Audible alarm(s)Yes

Ports & interfaces

USB portYes
USB port typeUSB Type-B
Serial interfaceYes
Serial interface typeRS-232

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity7 Ah
Number of batteries included32 pc(s)
Typical backup time at half load15 min
Battery recharge time(90%)4 h
Hot-swap batteryYes
Automatic battery testYes
Cold startYes

Design

Form factorTower
Product colourBlack
Housing materialMetal
Cooling typeActive
Built-in fanYes
Display typeLCD
LED indicatorsYes
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 60 °C
Operating relative humidity (H-H)20 - 95%
Battery operating temperature (T-T)0 - 25 °C
Operating altitude0 - 3000 m

Weight & dimensions

Width438 mm
Depth668 mm
Height134 mm
Weight148 kg
Extended battery module width50 cm
Extended battery module depth84 cm
Extended battery module height82.6 cm

Packaging data

Package weight150 kg

Logistics data

Master (outer) case net weight148.2 kg
Pallet gross length120 cm
Pallet gross weight19 kg
Pallet gross width100 cm
Master (outer) case width370 mm
Master (outer) case length900 mm
Master (outer) case height103 mm
Master (outer) case gross weight150.2 kg
Products per master (outer) case1 pc(s)
