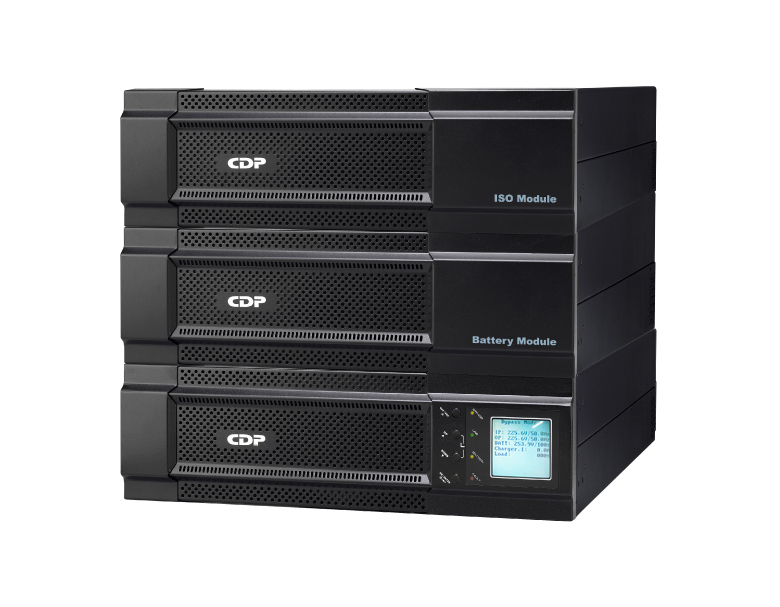

UPO22-10RTAXK 10KVA/10KW Online UPS KIT Include PM TM BM MBS1 PF UL, FCC, 220/230/240V 10U

Model UPO22-10RTAXK

55 specifications

Overview

Brand: CDP
Category: Uninterruptible Power Supplies (UPSs)
Model: UPO22-10RTAXK
Part number: UPO22-10RTAXK
Also known as: CDP UPO22-10RTAXK 10KVA/10KW Online UPS KIT Include PM TM BM MBS1 PF UL, FCC, 220/230/240V 10U

55 specifications in 6 groups

Specification	Value
UPS topology	Double-conversion (Online)
Output power capacity	10 kVA
Output power	10000 W
Waveform	Sine
Input operation voltage (max)	208 V
Input frequency	50/60 Hz
Output operation voltage (min)	104 V
Output operation voltage (max)	240 V
Output voltage regulation	-1 - 1%
Surge energy rating	2678 J
Response time	0 ms
Efficiency	94%
Efficiency (ECO mode)	96%
Input power factor	0.99
Crest factor	3:1
Emergency Power Off (EPO)	Yes
Output voltage Total Harmonic Distortion (THD)	5%
Input current Total Harmonic Distortion (THD)	4%
Noise level	55 dB
Surge protection	Yes
Power protection features	Short circuit

Specification	Value
Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	9 Ah
Number of batteries included	20 pc(s)
Typical backup time at full load	5 min
Typical backup time at half load	15 min
Charging current	10 A
Hot-swap battery	Yes
Automatic battery test	Yes
Cold start	Yes

Specification	Value
Form factor	Rackmount/Tower
Product colour	Black
Extended battery module rack capacity	3U
Rack capacity	8U
Modular	Yes
Cooling type	Active
Built-in fan	Yes
Display type	LCD
LED indicators	Yes
International Protection (IP) code	IP20

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Battery operating temperature (T-T)	0 - 25 °C
Operating altitude	0 - 3000 m

Specification	Value
Width	460 mm
Depth	620 mm
Height	88 mm
Extended battery module width	46 cm
Extended battery module depth	62 cm
Extended battery module height	13.3 cm
