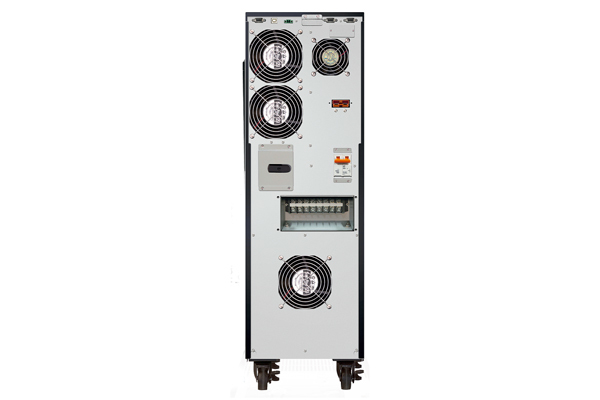

CDP UPO22-10AX 10KVA/10KW PF 1.0, Online UPS isolation transformer 220/240 to 208 Vac Input 220-240V AC, output split 110/115/120V and 220/230/240V LCD UL, FCC
CDP

UPO22-10AX 10KVA/10KW PF 1.0, Online UPS isolation transformer 220/240 to 208 Vac Input 220-240V AC, output split 110/115/120V and 220/230/240V LCD UL, FCC

Model UPO22-10AXEAN 879071000567

54 specifications
  • Battery9 Ah
  • Noise58 dB
  • TypeTower
  • Weight121.3 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
See all specifications

Overview

Battery
9 Ah
Noise
58 dB
Type
Tower
Weight
121.3 kg
Colour
Black
UPS topology
Double-conversion (Online)
Brand
CDP
Model
UPO22-10AX
Part number
UPO22-10AX
EAN / UPC
879071000567
Also known as
CDP UPO22-10AX 10KVA/10KW PF 1.0, Online UPS isolation transformer 220/240 to 208 Vac Input 220-240V AC, output split 110/115/120V and 220/230/240V LCD UL, FCC

Specifications

54 specifications in 8 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity10 kVA
Output power10000 W
WaveformPure sine
Input operation voltage (min)110 V
Input operation voltage (max)300 V
Input frequency50/60 Hz
Output operation voltage (min)104 V
Output operation voltage (max)240 V
Surge energy rating660 J
Number of input phases2
Number of output phases2
Efficiency (On-line mode)94%
Efficiency (ECO mode)96%
Power factor1
Crest factor3:1
Input current Total Harmonic Distortion (THD)3%
Noise level58 dB
Surge protectionYes
Power protection featuresOverload, Short circuit

Ports & interfaces

USB portYes
USB 2.0 ports quantity1
USB port typeUSB Type-B
Serial interfaceYes
Serial interface typeRS-232
Emergency Power Off (EPO) connectorYes

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity9 Ah
Number of batteries supported20
Typical backup time at full load5 min
Typical backup time at half load10 min

Design

Form factorTower
Product colourBlack
Display typeLCD
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 60 °C
Operating relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m

Weight & dimensions

Width200 mm
Depth460 mm
Height720 mm
Weight121.3 kg

Packaging data

Package weight127.9 kg

Logistics data

Master (outer) case net weight121.3 kg
Pallet gross height12.1 m
Pallet gross length114 cm
Pallet gross weight776 kg
Pallet gross width68 cm
Master (outer) case width380 mm
Master (outer) case length680 mm
Master (outer) case height1074 mm
Master (outer) case gross weight127.9 kg
Products per master (outer) case1 pc(s)
