CDP UPO11-3RTAX 3000VA/3000W Online UPS 2U 19' RT PF 1.0, LCD UL, FCC, CE 120 Vac
CDP

UPO11-3RTAX 3000VA/3000W Online UPS 2U 19' RT PF 1.0, LCD UL, FCC, CE 120 Vac

Model UPO11-3RTAXEAN 879071000611

70 specifications
  • Battery9 Ah
  • Noise50 dB
  • TypeRackmount/Tower
  • Weight32.8 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
See all specifications

Overview

Battery
9 Ah
Noise
50 dB
Type
Rackmount/Tower
Weight
32.8 kg
Colour
Black
UPS topology
Double-conversion (Online)
Brand
CDP
Model
UPO11-3RTAX
Part number
UPO11-3RTAX
EAN / UPC
879071000611
Also known as
CDP UPO11-3RTAX 3000VA/3000W Online UPS 2U 19' RT PF 1.0, LCD UL, FCC, CE 120 Vac

Specifications

70 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity3 kVA
Output power3000 W
WaveformPure sine
Input operation voltage (min)55 V
Input operation voltage (max)150 V
Input frequency40/70 Hz
Output operation voltage (min)100 V
Output operation voltage (max)127 V
Output frequency50/60 Hz
Surge energy rating844 J
Number of input phases1
Number of output phases1
Efficiency (On-line mode)90%
Efficiency (ECO mode)98%
Power factor1
Input power factor0.99
Output power factor1
Crest factor3:1
ECO modeYes
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)4%
Input current Total Harmonic Distortion (THD)3%
EMI/RFI noise filteringYes
Noise level50 dB
Surge protectionYes
Power protection featuresOverload, Short circuit
Audible alarm(s)Yes

Ports & interfaces

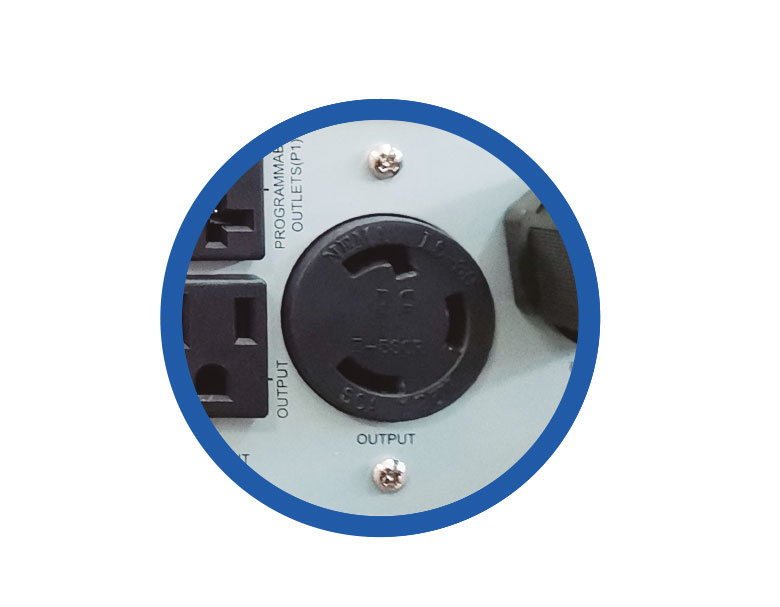

AC outlet typesNEMA 5–15R, NEMA L5-30R

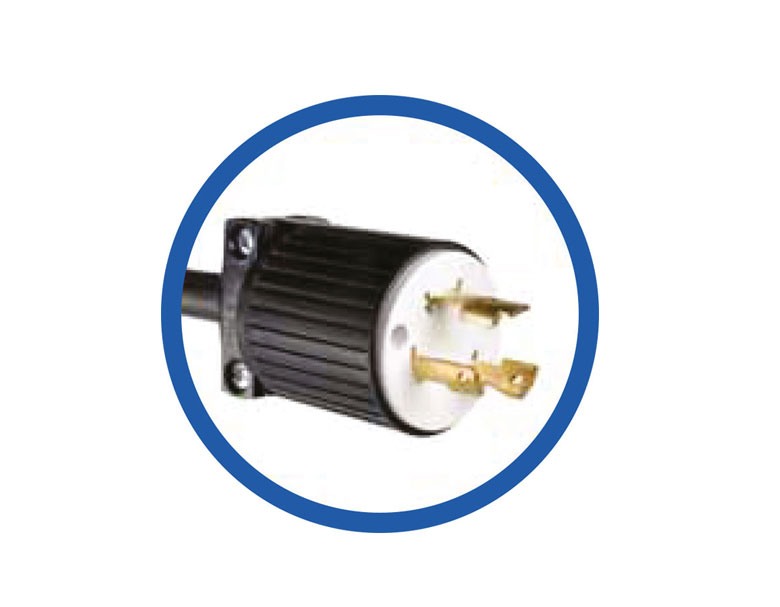

Power plugNEMA L5-30P
AC outlets quantity8 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
RS-232 ports1
Emergency Power Off (EPO) connectorYes

Battery

Battery technologyLead-Acid
Battery capacity9 Ah
Battery voltage12 V
Number of batteries supported6
Typical backup time at full load7 min
Typical backup time at half load15 min
Battery recharge time4 h
Cold startYes

Design

Form factorRackmount/Tower
Product colourBlack
Housing materialMetal
Rack capacity2U
Cable length1.5 m
Cooling typeActive
Built-in fanYes
Display typeLCD
LED indicatorsYes
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 60 °C
Operating relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m

Certificates

CertificationNOM, ISO9001-2015, ISO14001, RETIE, TÜV, UL

Weight & dimensions

Width600 mm
Depth760 mm
Height200 mm
Weight32.8 kg

Packaging data

Package weight32.3 kg

Logistics data

Master (outer) case net weight32.8 kg
Pallet gross height2.17 m
Pallet gross length120 cm
Pallet gross weight452.8 kg
Pallet gross width100 cm
Master (outer) case gross weight32.3 kg
Products per master (outer) case1 pc(s)
