UPO11-3RT 3000VA/2700W Online UPS 2U 19' RT PF 0,9, LCD 120 Vac

Model UPO11-3RTEAN 858277001462

64 specifications

Overview

Brand: CDP
Category: Uninterruptible Power Supplies (UPSs)
Model: UPO11-3RT
Part number: UPO11-3RT
EAN / UPC: 858277001462, 879071001359
Also known as: CDP UPO11-3RT 3000VA/2700W Online UPS 2U 19' RT PF 0,9, LCD 120 Vac

64 specifications in 7 groups

Specification	Value
UPS topology	Double-conversion (Online)
Output power capacity	3 kVA
Output power	2700 W
Waveform	Pure sine
Input operation voltage (min)	60 V
Input operation voltage (max)	150 V
Input frequency	40/70 Hz
Output operation voltage (min)	110 V
Output operation voltage (max)	127 V
Output frequency	50/60 Hz
Surge energy rating	844 J
Number of input phases	1
Number of output phases	1
Efficiency (On-line mode)	90%
Efficiency (ECO mode)	96%
Input power factor	0.99
Output power factor	0.9
Crest factor	3:1
Output voltage Total Harmonic Distortion (THD)	6%
Input current Total Harmonic Distortion (THD)	3%
EMI/RFI noise filtering	Yes
Noise level	50 dB
Surge protection	Yes
Power protection features	Overload, Short circuit
Audible alarm(s)	Yes

Specification	Value
Battery technology	Lead-Acid
Battery capacity	9 Ah
Battery voltage	12 V
Number of batteries supported	6
Typical backup time at full load	5 min
Typical backup time at half load	13 min
Battery recharge time	4 h
Cold start	Yes

Specification	Value
Form factor	Rackmount/Tower
Product colour	Black
Housing material	Metal
Rack capacity	2U
Cable length	1.2 m
Cooling type	Active
Built-in fan	Yes

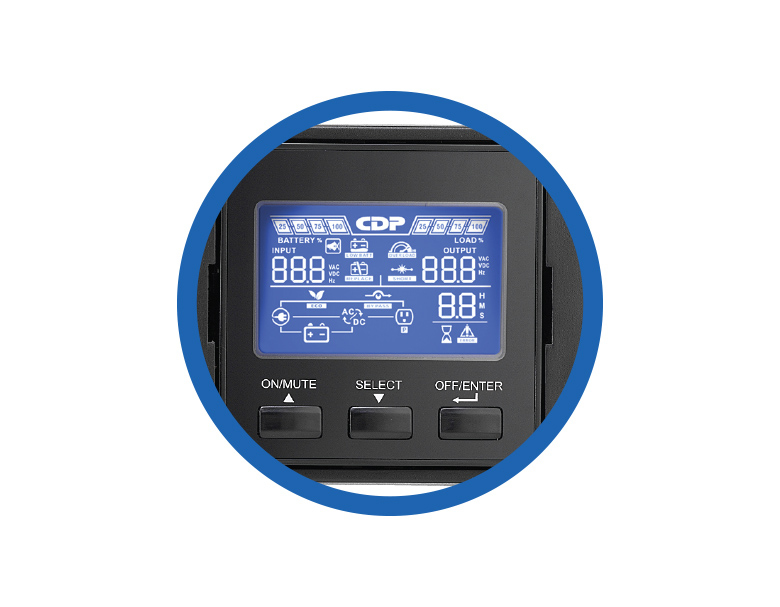

Display type	LCD
LED indicators	Yes
International Protection (IP) code	IP20

Specification	Value
Package weight	28.9 kg

Specification	Value
Master (outer) case net weight	29.4 kg
Pallet gross height	2.17 m
Pallet gross length	120 cm
Pallet gross weight	404.9 kg
Pallet gross width	100 cm
Master (outer) case width	600 mm
Master (outer) case length	760 mm
Master (outer) case height	200 mm
Master (outer) case gross weight	28.9 kg
Products per master (outer) case	1 pc(s)
