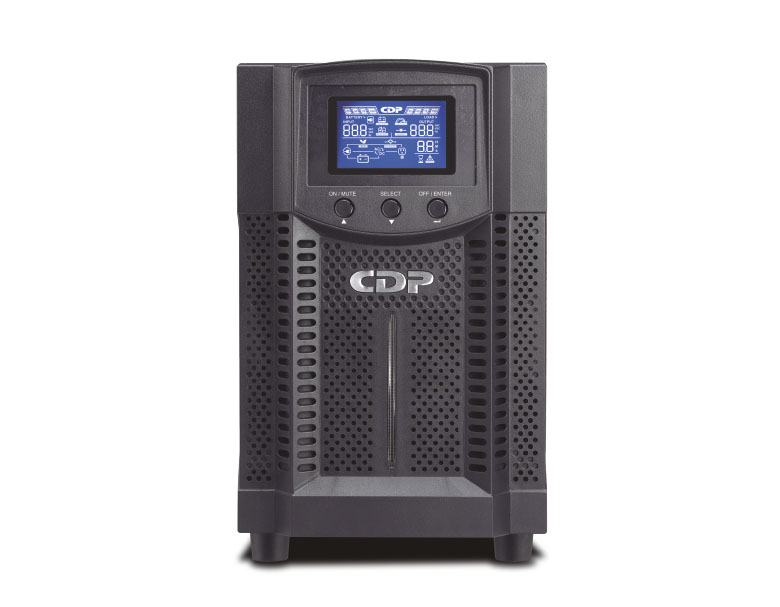

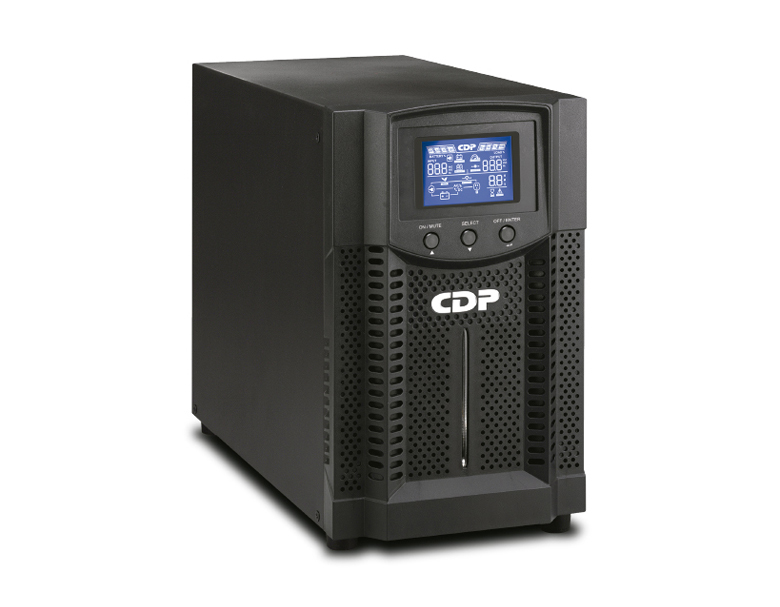

CDP UPO11-3 3000VA/2700W PF 0.9 Online UPS Tower, LCD 120 Vac
CDP

UPO11-3 3000VA/2700W PF 0.9 Online UPS Tower, LCD 120 Vac

Model UPO11-3EAN 879071000475

63 specifications
  • Battery9 Ah
  • Noise50 dB
  • TypeTower
  • Weight30 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
See all specifications

Overview

Battery
9 Ah
Noise
50 dB
Type
Tower
Weight
30 kg
Colour
Black
UPS topology
Double-conversion (Online)
Brand
CDP
Model
UPO11-3
Part number
UPO11-3
EAN / UPC
879071000475
Also known as
CDP UPO11-3 3000VA/2700W PF 0.9 Online UPS Tower, LCD 120 Vac

Specifications

63 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity3 kVA
Output power2700 W
WaveformPure sine
Input operation voltage (min)60 V
Input operation voltage (max)150 V
Input frequency40/70 Hz
Output operation voltage (min)110 V
Output operation voltage (max)127 V
Output frequency50/60 Hz
Surge energy rating844 J
Number of input phases1
Number of output phases1
Efficiency (On-line mode)90%
Efficiency (ECO mode)96%
Input power factor0.99
Crest factor3:1
ECO modeYes
Output voltage Total Harmonic Distortion (THD)6%
Input current Total Harmonic Distortion (THD)3%
Noise level50 dB
Surge protectionYes
Power protection featuresOverload, Short circuit

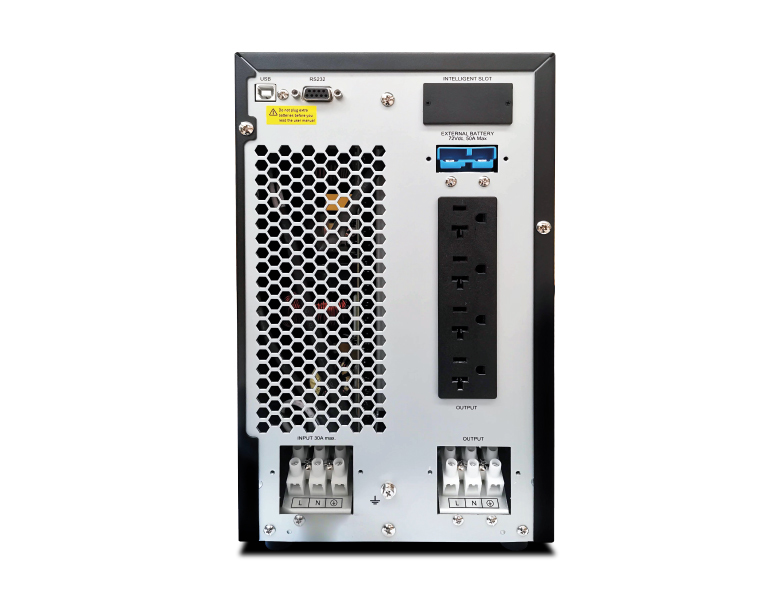

Ports & interfaces

AC outlet typesNEMA 5-15R
Power plugNEMA L5-30P
AC outlets quantity4 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
RS-232 ports1

Battery

Battery technologyLead-Acid
Battery capacity9 Ah
Battery voltage12 V
Number of batteries supported6
Typical backup time at full load5 min
Typical backup time at half load13 min
Battery recharge time4 h
Cold startYes

Design

Form factorTower
Product colourBlack
Housing materialMetal
Cable length1.2 m
Cooling typeActive
Built-in fanYes
Display typeLCD
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)20 - 90%

Certificates

CertificationNOM, ISO9001-2015, ISO14001, RETIE

Weight & dimensions

Width320 mm
Depth560 mm
Height460 mm
Weight30 kg

Packaging data

Package weight29.5 kg

Logistics data

Master (outer) case net weight30 kg
Pallet gross height2.17 m
Pallet gross length120 cm
Pallet gross weight708 kg
Pallet gross width100 cm
Master (outer) case width320 mm
Master (outer) case length560 mm
Master (outer) case height460 mm
Master (outer) case gross weight29.5 kg
Products per master (outer) case1 pc(s)
