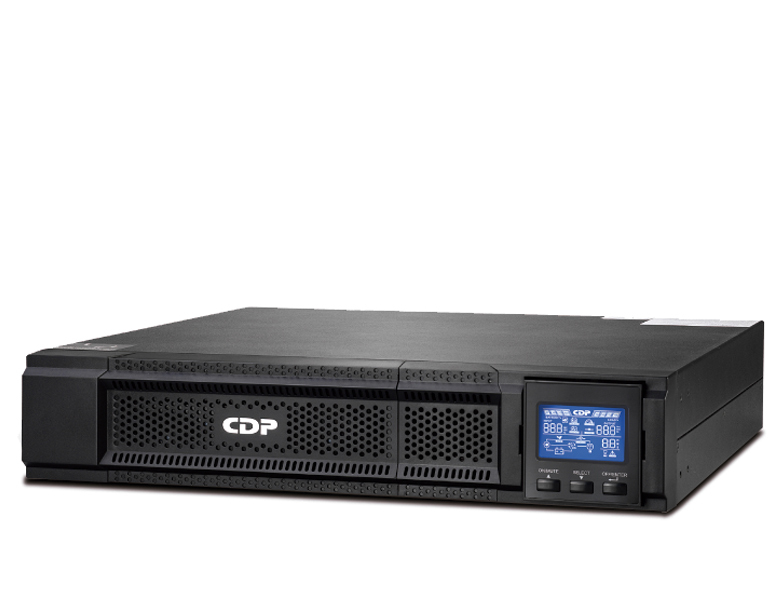

CDP UPO11-2RTi 2000VA/1800W PF 0.9 Online UPS Tower, LCD 220 Vac
CDP

UPO11-2RTi 2000VA/1800W PF 0.9 Online UPS Tower, LCD 220 Vac

Model UPO11-2RTiPart no. UPO11-2RTIEAN 879071004046

61 specifications
  • Battery7 Ah
  • Noise50 dB
  • TypeRackmount/Tower
  • Weight19.6 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
See all specifications

Overview

Battery
7 Ah
Noise
50 dB
Type
Rackmount/Tower
Weight
19.6 kg
Colour
Black
UPS topology
Double-conversion (Online)
Brand
CDP
Model
UPO11-2RTi
Part number
UPO11-2RTI
EAN / UPC
879071004046
Also known as
CDP UPO11-2RTi 2000VA/1800W PF 0.9 Online UPS Tower, LCD 220 Vac

Specifications

61 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity2 kVA
Output power1800 W
WaveformPure sine
Input operation voltage (min)110 V
Input operation voltage (max)300 V
Input frequency40/70 Hz
Output operation voltage (min)208 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Surge energy rating844 J
Number of input phases1
Number of output phases1
Efficiency (On-line mode)90%
Input power factor0.99
Crest factor5:1
Output voltage Total Harmonic Distortion (THD)6%
Input current Total Harmonic Distortion (THD)3%
Noise level50 dB
Surge protectionYes
Power protection featuresOverload, Short circuit

Ports & interfaces

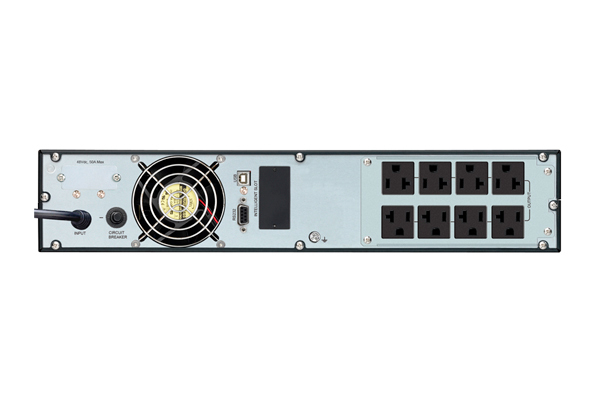

AC outlet typesC13 coupler
AC outlets quantity8 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
RS-232 ports1

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity7 Ah
Battery voltage12 V
Number of batteries supported4
Typical backup time at full load5 min
Typical backup time at half load13 min
Battery recharge time4 h
Cold startYes

Design

Form factorRackmount/Tower
Product colourBlack
Housing materialMetal
Rack capacity2U
Cable length1.2 m
Cooling typeActive
Built-in fanYes

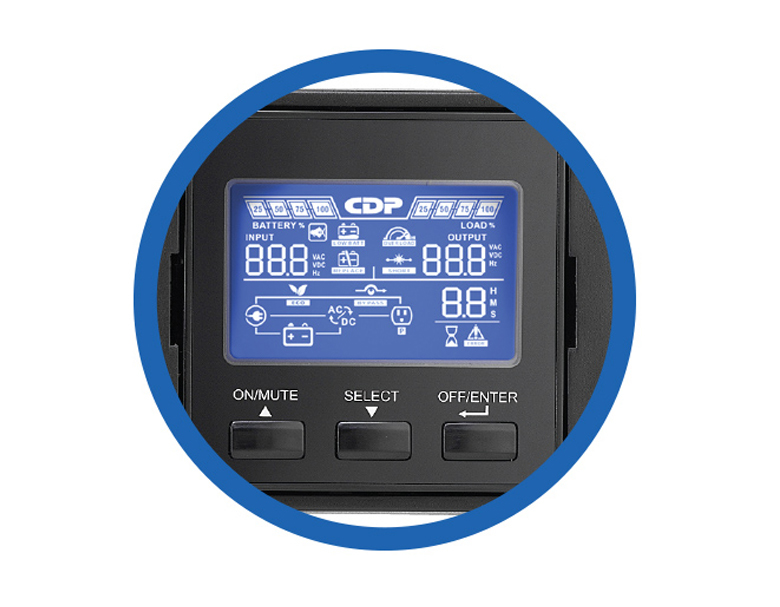

Display typeLCD
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)20 - 90%

Certificates

Compliance certificatesRoHS

Weight & dimensions

Width500 mm
Depth560 mm
Height180 mm
Weight19.6 kg

Packaging data

Package weight19.1 kg

Logistics data

Master (outer) case net weight19.6 kg
Pallet gross height2.17 m
Pallet gross length120 cm
Pallet gross weight765.6 kg
Pallet gross width100 cm
Master (outer) case width585 mm
Master (outer) case length710 mm
Master (outer) case height200 mm
Master (outer) case gross weight19.1 kg
Products per master (outer) case1 pc(s)
