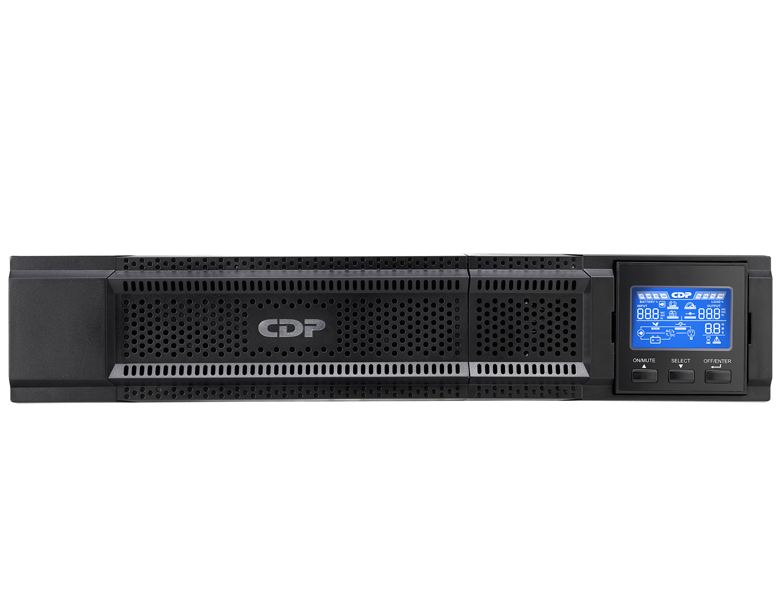

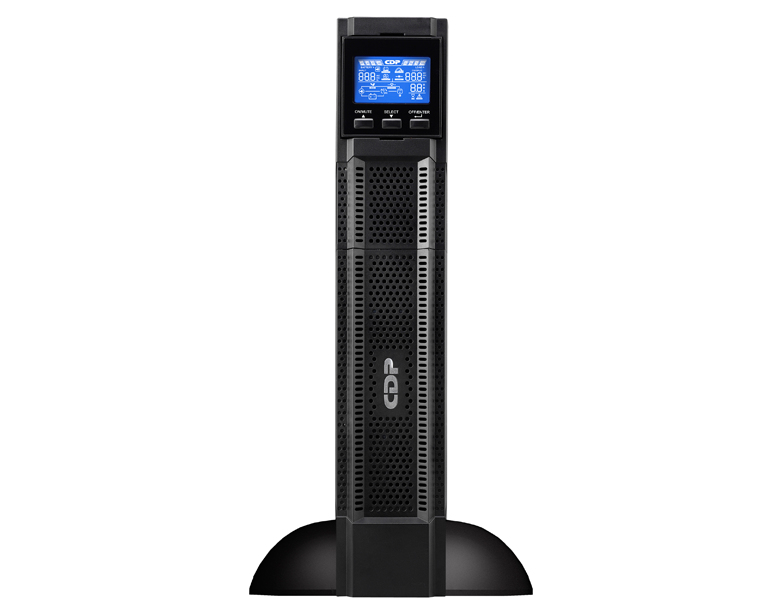

CDP UPO11-2RT kVA
CDP

UPO11-2RT kVA

Model UPO11-2RT kVAPart no. UPO11-2RTEAN 879071000789

61 specifications
  • Battery12 Ah
  • Noise50 dB
  • TypeRackmount/Tower
  • Weight19.9 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
See all specifications

Overview

Battery
12 Ah
Noise
50 dB
Type
Rackmount/Tower
Weight
19.9 kg
Colour
Black
UPS topology
Double-conversion (Online)
Brand
CDP
Model
UPO11-2RT kVA
Part number
UPO11-2RT
EAN / UPC
879071000789, 879071001342
Also known as
CDP UPO11-2RT 2000VA/1800W Online UPS 2U 19' RT PF 0,9, LCD 120 Vac

Specifications

61 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity2 kVA
Output power1800 W
WaveformPure sine
Input operation voltage (min)60 V
Input operation voltage (max)150 V
Input frequency40/70 Hz
Output operation voltage (min)100 V
Output operation voltage (max)127 V
Output frequency50/60 Hz
Surge energy rating844 J
Efficiency (On-line mode)89%
Efficiency (ECO mode)87%
Input power factor0.99
Output power factor0.9
Crest factor5:1
Output voltage Total Harmonic Distortion (THD)6%
Input current Total Harmonic Distortion (THD)1.6%
Noise level50 dB
Surge protectionYes
Power protection featuresOverload, Short circuit

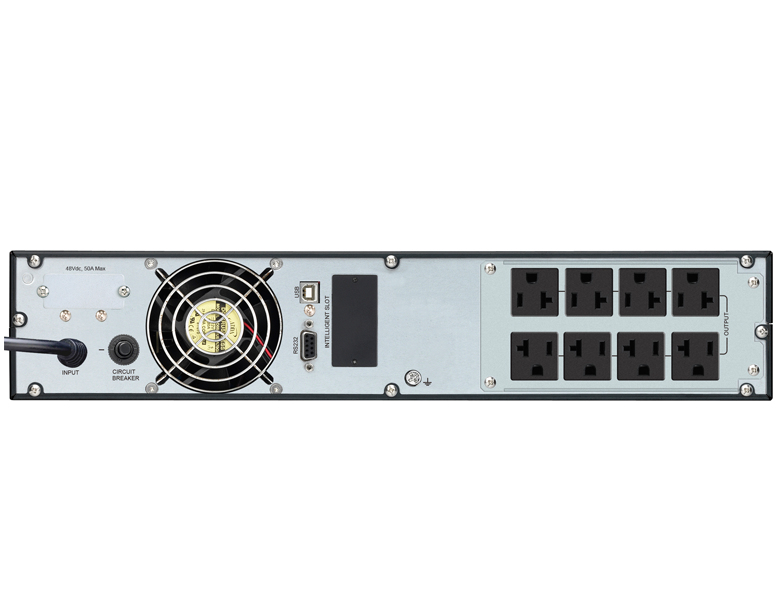

Ports & interfaces

AC outlet typesNEMA 5–15R
Power plugNEMA 5-20P
AC outlets quantity8 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
RS-232 ports1

Battery

Battery technologyLead-Acid
Battery capacity12 Ah
Battery voltage7 V
Number of batteries supported4
Typical backup time at full load5 min
Typical backup time at half load13 min
Battery recharge time4 h
Cold startYes

Design

Form factorRackmount/Tower
Product colourBlack
Housing materialMetal
Rack capacity2U
Cooling typeActive
Built-in fanYes

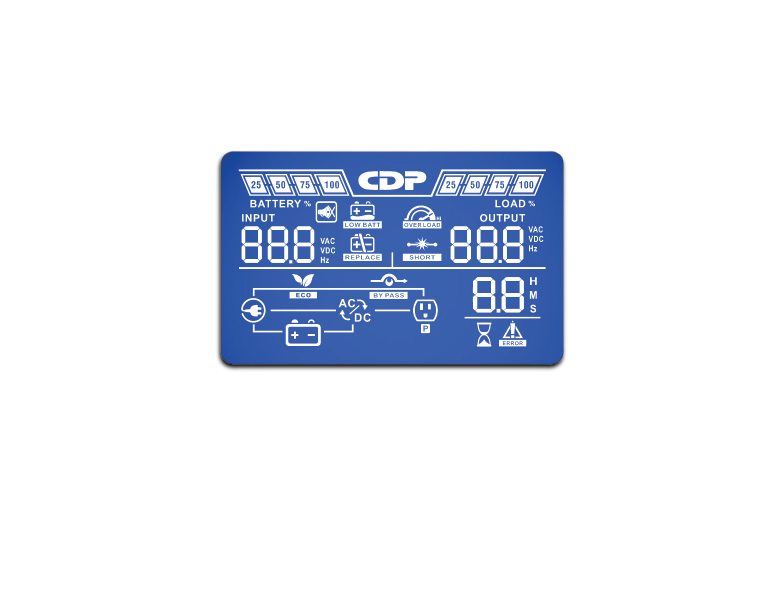

Display typeLCD
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)20 - 90%

Certificates

Compliance certificatesRoHS

Weight & dimensions

Width500 mm
Depth560 mm
Height180 mm
Weight19.9 kg

Packaging data

Package weight19.4 kg

Logistics data

Master (outer) case net weight19.9 kg
Pallet gross height2.17 m
Pallet gross length120 cm
Pallet gross weight775.2 kg
Pallet gross width100 cm
Master (outer) case width500 mm
Master (outer) case length560 mm
Master (outer) case height180 mm
Master (outer) case gross weight19.4 kg
Products per master (outer) case1 pc(s)
