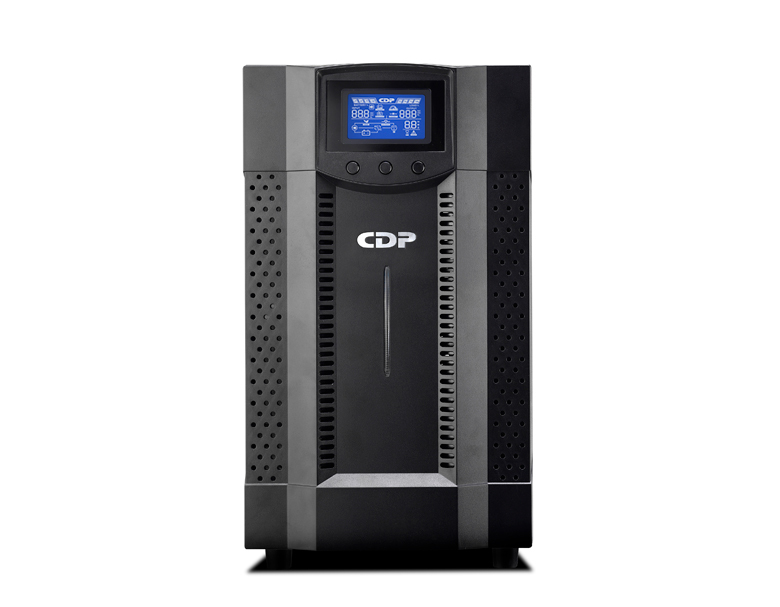

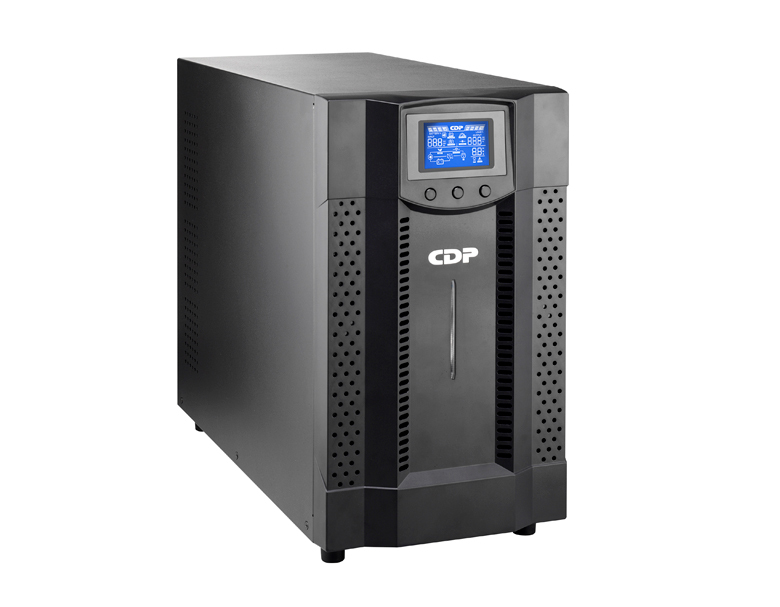

CDP UPO11-2AXi 2000VA/2000W PF 1.0 Online UPS Tower, LCD UL, FCC, CE 220 Vac
CDP

UPO11-2AXi 2000VA/2000W PF 1.0 Online UPS Tower, LCD UL, FCC, CE 220 Vac

Model UPO11-2AXiPart no. UPO11-2AXIEAN 879071004077

62 specifications
  • Battery7 Ah
  • Noise50 dB
  • TypeTower
  • Weight25.8 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
See all specifications

Overview

Battery
7 Ah
Noise
50 dB
Type
Tower
Weight
25.8 kg
Colour
Black
UPS topology
Double-conversion (Online)
Brand
CDP
Model
UPO11-2AXi
Part number
UPO11-2AXI
EAN / UPC
879071004077
Also known as
CDP UPO11-2AXi 2000VA/2000W PF 1.0 Online UPS Tower, LCD UL, FCC, CE 220 Vac

Specifications

62 specifications in 8 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity2 kVA
Output power2000 W
WaveformPure sine
Input operation voltage (min)110 V
Input operation voltage (max)300 V
Input frequency40 - 70 Hz
Output operation voltage (min)200 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Surge energy rating844 J
Number of input phases1
Number of output phases1
Efficiency (On-line mode)90%
Efficiency (ECO mode)98%
Power factor1
Crest factor3:1
Output voltage Total Harmonic Distortion (THD)4%
Input current Total Harmonic Distortion (THD)3%
Noise level50 dB
Surge protectionYes
Power protection featuresOverload, Short circuit

Ports & interfaces

AC outlet typesC13 coupler
AC outlets quantity8 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
RS-232 ports1
Emergency Power Off (EPO) connectorYes

Battery

Battery technologyLead-Acid
Battery capacity7 Ah
Battery voltage12 V
Number of batteries supported6
Typical backup time at full load7 min
Typical backup time at half load15 min
Battery recharge time4 h
Cold startYes

Design

Form factorTower
Product colourBlack
Housing materialMetal
Cable length1.5 m
Cooling typeActive
Built-in fanYes
Display typeLCD
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)0 - 90%
Operating altitude0 - 2000 m

Weight & dimensions

Width320 mm
Depth560 mm
Height460 mm
Weight25.8 kg

Packaging data

Package weight25.3 kg

Logistics data

Master (outer) case net weight25.8 kg
Pallet gross height2.17 m
Pallet gross length120 cm
Pallet gross weight607.9 kg
Pallet gross width100 cm
Master (outer) case width320 mm
Master (outer) case length560 mm
Master (outer) case height460 mm
Master (outer) case gross weight25.3 kg
Products per master (outer) case1 pc(s)
