CDP UPO11-1RTi 1000VA/900W PF 0.9 Online UPS 2U 19' RT, LCD 220 Vac
CDP

UPO11-1RTi 1000VA/900W PF 0.9 Online UPS 2U 19' RT, LCD 220 Vac

Model UPO11-1RTiPart no. UPO11-1RTIEAN 879071004039

61 specifications
  • Battery9 Ah
  • Noise50 dB
  • TypeRackmount/Tower
  • Weight12.6 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
See all specifications

Overview

Battery
9 Ah
Noise
50 dB
Type
Rackmount/Tower
Weight
12.6 kg
Colour
Black
UPS topology
Double-conversion (Online)
Brand
CDP
Model
UPO11-1RTi
Part number
UPO11-1RTI
EAN / UPC
879071004039
Also known as
CDP UPO11-1RTi 1000VA/900W PF 0.9 Online UPS 2U 19' RT, LCD 220 Vac

Specifications

61 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity1 kVA
Output power900 W
WaveformPure sine
Input operation voltage (min)10 V
Input operation voltage (max)300 V
Input frequency40/70 Hz
Output operation voltage (min)208 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Surge energy rating844 J
Number of input phases1
Number of output phases1
Efficiency (On-line mode)90%
Input power factor0.9
Crest factor5:1
Output voltage Total Harmonic Distortion (THD)6%
Input current Total Harmonic Distortion (THD)3%
Noise level50 dB
Surge protectionYes
Power protection featuresOverload, Short circuit

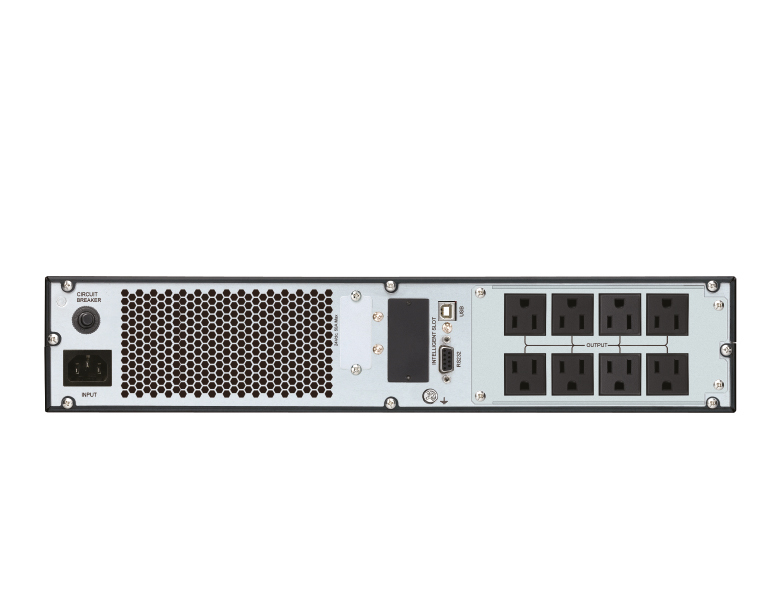

Ports & interfaces

AC outlet typesC13 coupler
AC outlets quantity8 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
Serial interfaceYes
Serial interface typeRS-232
Serial ports quantity1

Battery

Battery technologyLead-Acid
Battery capacity9 Ah
Battery voltage12 V
Number of batteries supported2
Typical backup time at full load5 min
Typical backup time at half load13 min
Battery recharge time4 h
Cold startYes

Design

Form factorRackmount/Tower
Product colourBlack
Housing materialMetal
Rack capacity2U
Cable length1.2 m
Display typeLCD
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)20 - 90%

Certificates

CertificationNOM, ISO9001-2015, ISO14001, RETIE

Weight & dimensions

Width400 mm
Depth500 mm
Height180 mm
Weight12.6 kg

Packaging data

Package weight12.1 kg

Logistics data

Master (outer) case net weight12.6 kg
Pallet gross height2.17 m
Pallet gross length120 cm
Pallet gross weight725.4 kg
Pallet gross width100 cm
Master (outer) case width500 mm
Master (outer) case length560 mm
Master (outer) case height180 mm
Master (outer) case gross weight12.1 kg
Products per master (outer) case1 pc(s)
