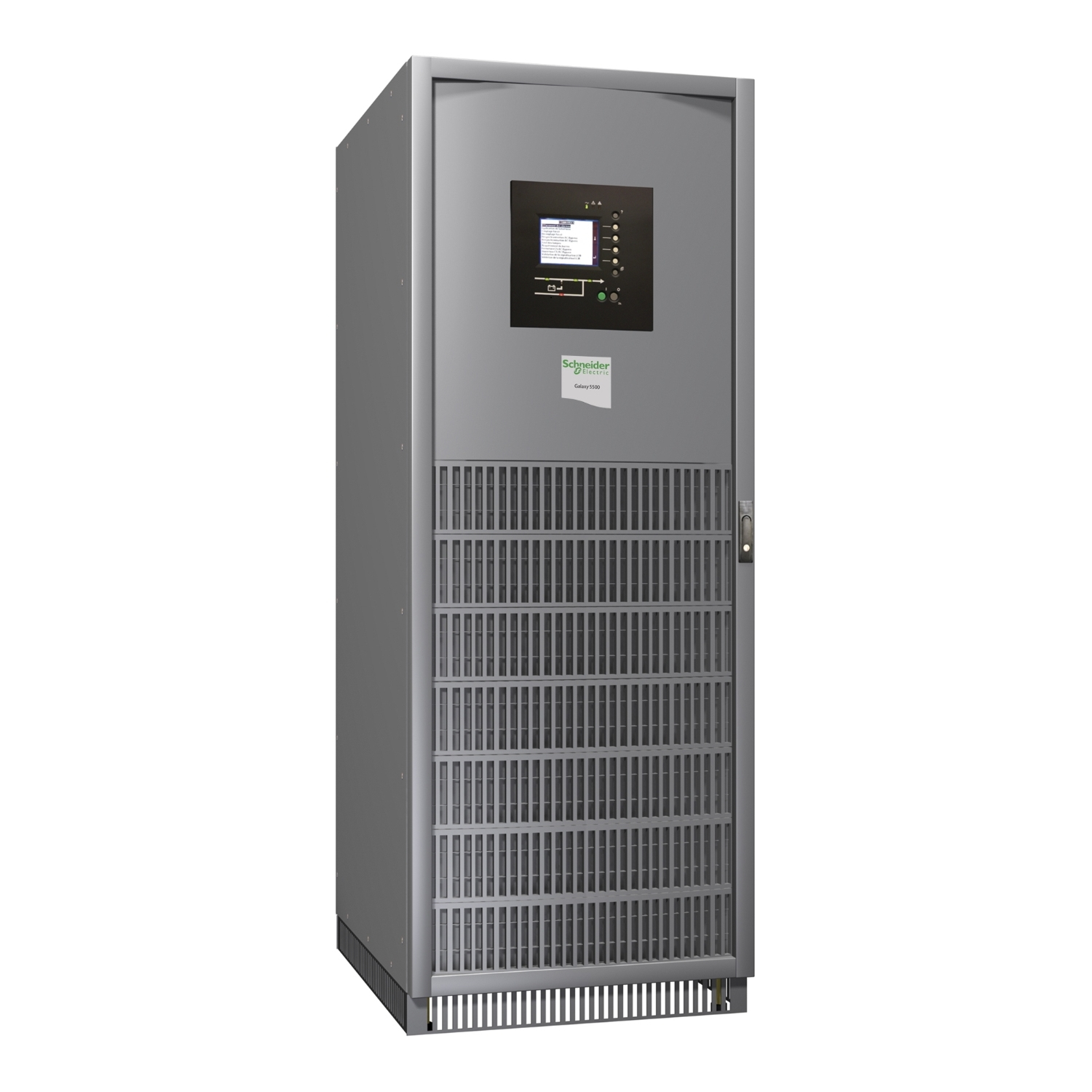

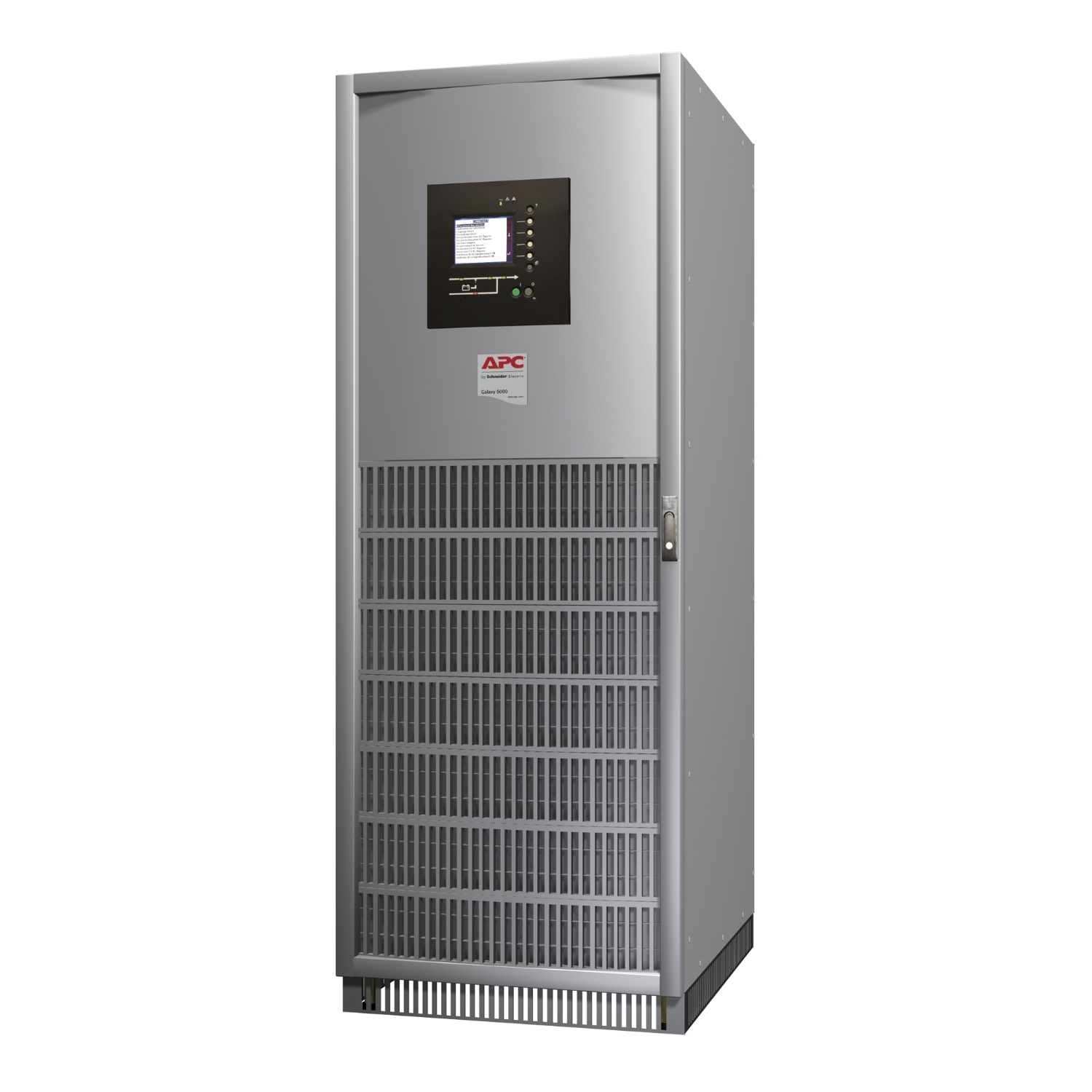

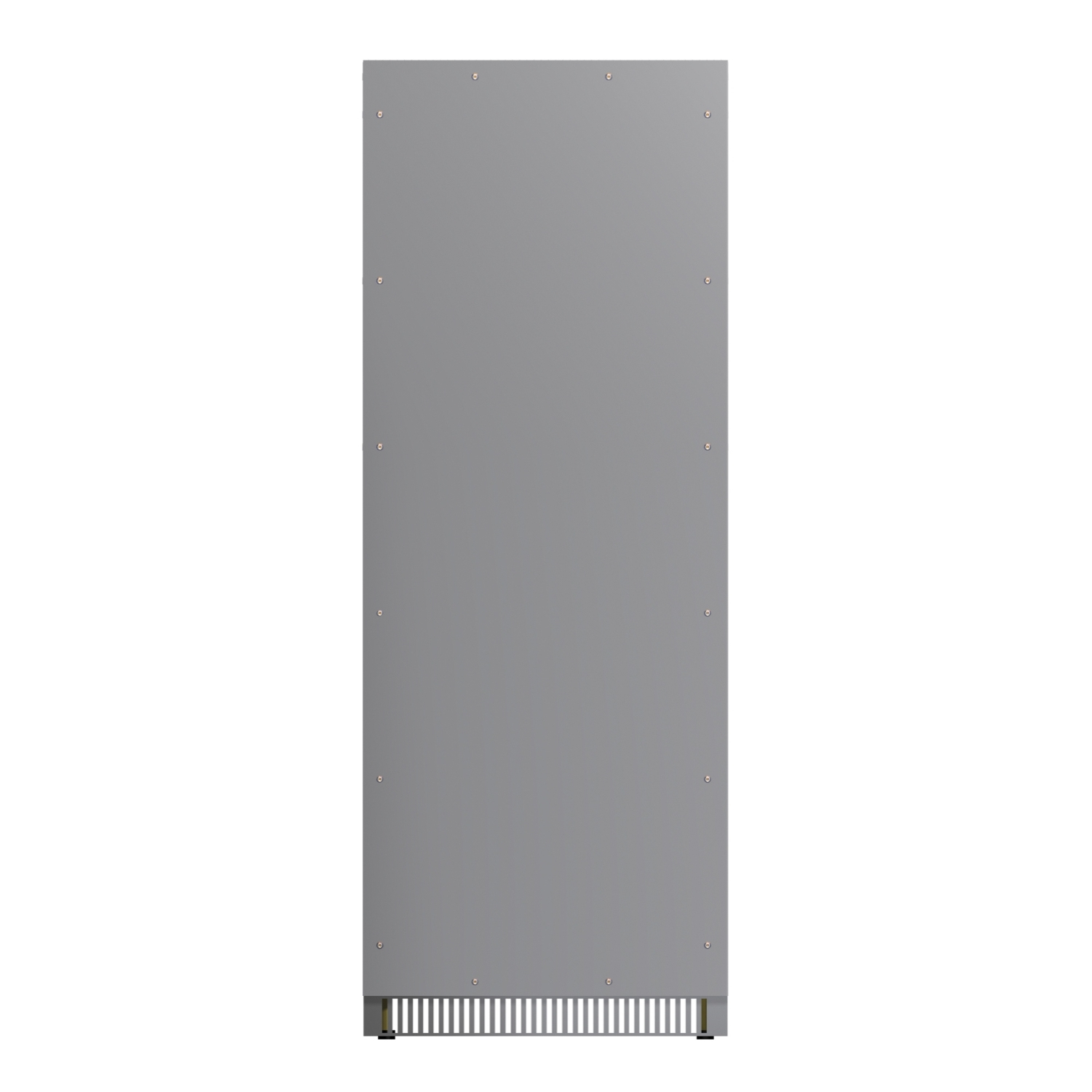

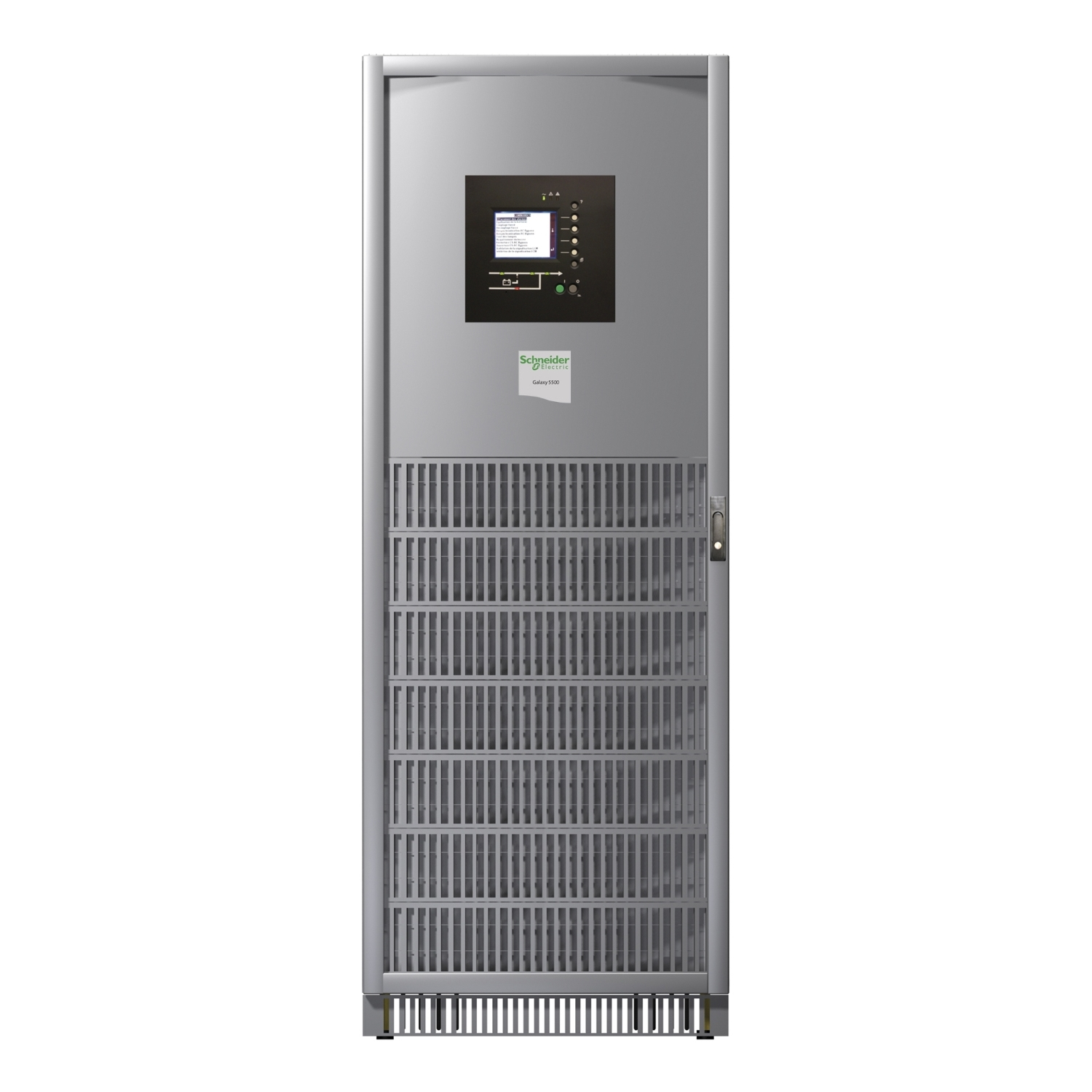

APC USV - 400 V

APC USV - 400 V

Model USV - 400 VPart no. G55TUPSM120HSEAN 731304299622

46 specifications
  • Noise61.4 dB
  • TypeLarge tower
  • Weight520 kg
  • ColourSilver
  • UPS topologyDouble-conversion (Online)
  • SmartSlotYes
See all specifications

Overview

Noise
61.4 dB
Type
Large tower
Weight
520 kg
Colour
Silver
UPS topology
Double-conversion (Online)
SmartSlot
Yes
Brand
APC
Model
USV - 400 V
Part number
G55TUPSM120HS
EAN / UPC
731304299622
Also known as
APC USV - 400 V uninterruptible power supply (UPS) Double-conversion (Online) 120 kVA 108000 W

Specifications

46 specifications in 8 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity120 kVA
Output power108000 W
WaveformSine
Input operation voltage (min)323 V
Input operation voltage (max)477 V
Input frequency45/65 Hz
Output operation voltage (min)380 V
Output operation voltage (max)415 V
Output frequency50/60 Hz
Maximum current480 A
Number of input phases3
Number of output phases3
Efficiency93.2%
Input power factor1
Crest factor3:1
ECO modeYes
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)2.5%
Input current Total Harmonic Distortion (THD)3%
Noise level61.4 dB
Power protection featuresOverload, Short circuit

Ports & interfaces

AC outlet typesHard Wire 4-wire (3PH + G), Hard Wire 4-wire (3PH + N)
SmartSlotYes

Design

Form factorLarge tower
Product colourSilver
Display typeLCD
LED indicatorsYes
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 1000 m
Non-operating altitude0 - 12000 m

Packaging content

ManualYes
Quick installation guideYes

Certificates

CertificationCE, EN/IEC 62040-3, IEC 62040-1-2, IEC 62040-2, ISO 9001, TUV, VDE

Weight & dimensions

Width712 mm
Depth850 mm
Height1900 mm
Weight520 kg

Packaging data

Package width980 mm
Package depth960 mm
Package height2030 mm
Package weight540 kg
