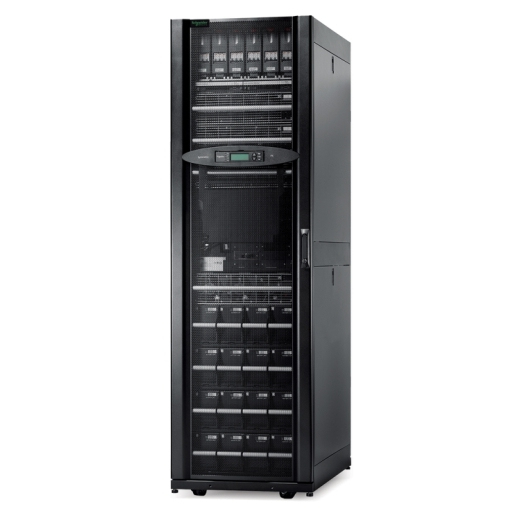

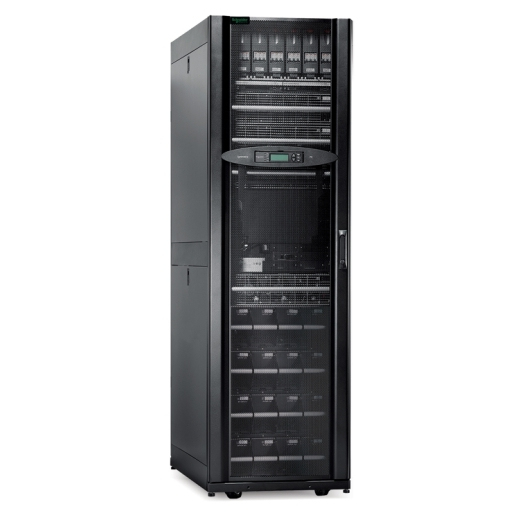

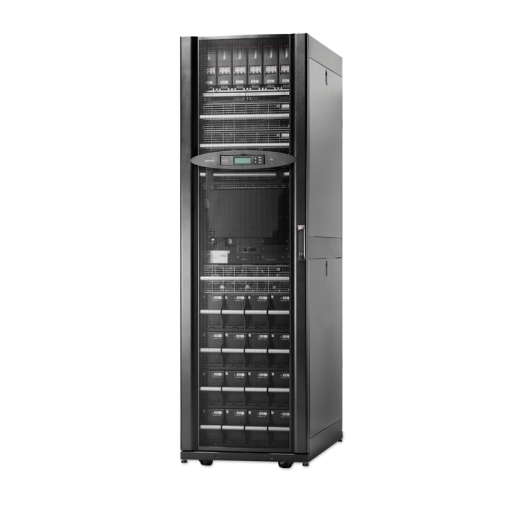

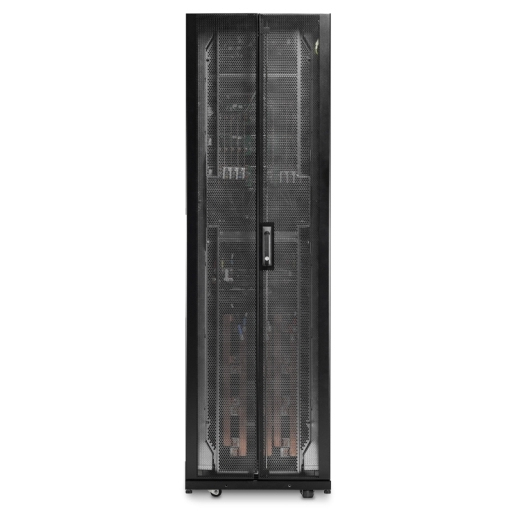

APC Symmetra PX 48kW All-In-One Frame

APC Symmetra PX 48kW All-In-One Frame

400V

Model SY48K48H-PDPart no. SYCF48KHEAN 7313042620222

39 specifications
  • Battery13824 VAh
  • Noise61 dB
  • TypeTower
  • Weight796 kg
  • ColourBlack, Grey
  • UPS topologyDouble-conversion (Online)
See all specifications

Overview

Battery
13824 VAh
Noise
61 dB
Type
Tower
Weight
796 kg
Colour
Black, Grey
UPS topology
Double-conversion (Online)
Brand
APC
Model
SY48K48H-PD
Part number
SYCF48KH
EAN / UPC
7313042620222, 7612205026858
Also known as
APC Symmetra PX 48kW All-In-One Frame, 400V

Specifications

39 specifications in 8 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity48 kVA
Output power48000 W
WaveformSine
Input operation voltage (max)400 V
Input frequency40/70 Hz
Output operation voltage (min)230 V
Output operation voltage (max)400 V
Output frequency50/60 Hz
Maximum current98 A
Number of input phases3
Number of output phases3
Three-phase input voltage supported380,400,415 V
Three-phase output voltage supported380,400,415 V
Output voltage Total Harmonic Distortion (THD)2%
Noise level61 dB

Ports & interfaces

Serial interfaceYes
Serial interface typeRS-232
Serial ports quantity2

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity13824 VAh
Number of batteries supported4
Battery recharge time3 h
Hot-swap batteryYes

Design

Form factorTower
Product colourBlack, Grey

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 999.9 m
Non-operating altitude0 - 15000 m

Certificates

CertificationEN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, Eurobat General Purpose, ISO 14001, ISO 9001, VFI-SS-111

Weight & dimensions

Width600 mm
Depth1070 mm
Height1991 mm
Weight796 kg

Logistics data

Harmonized System (HS) code85078000
Total carbon footprint (kg of CO2e)1004.35
