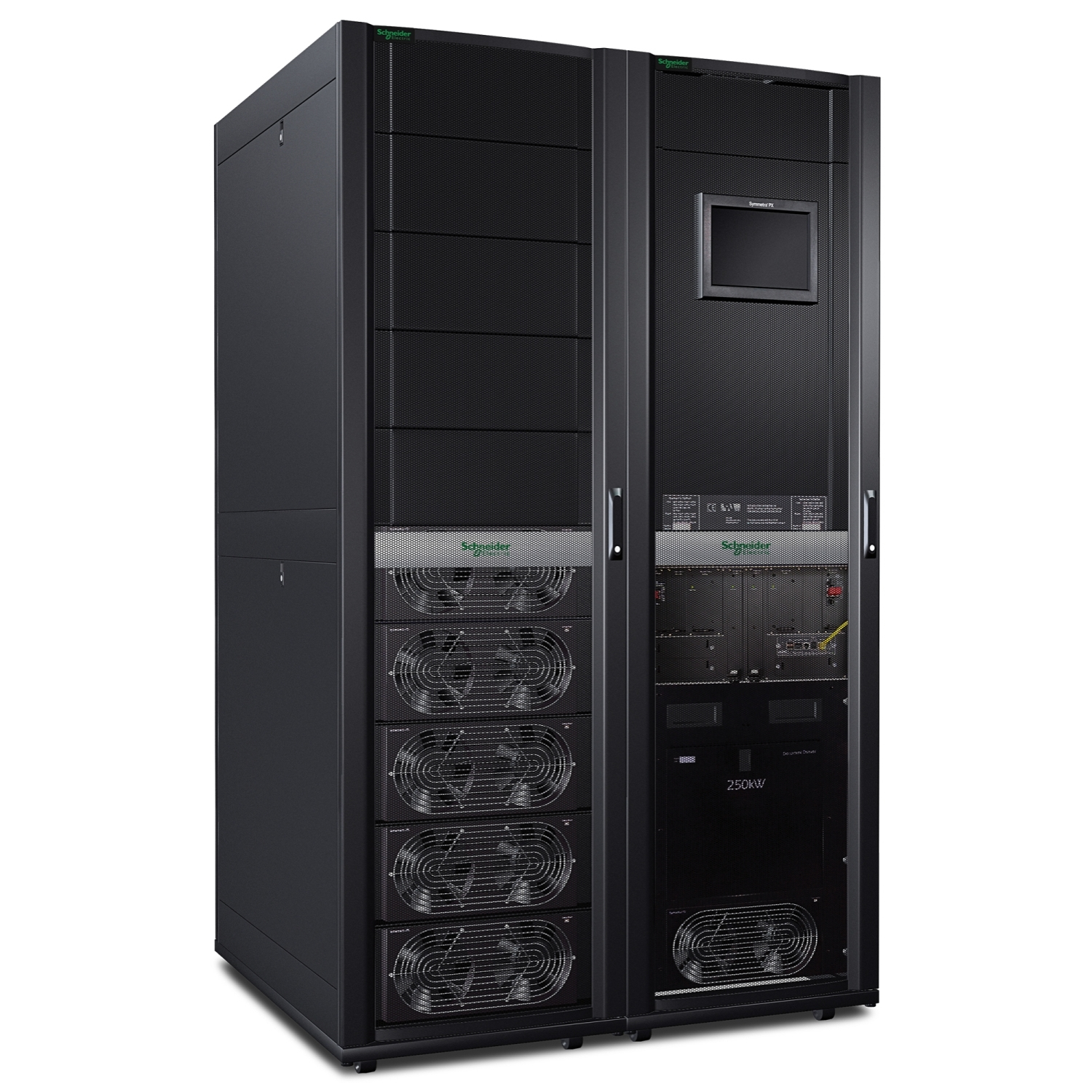

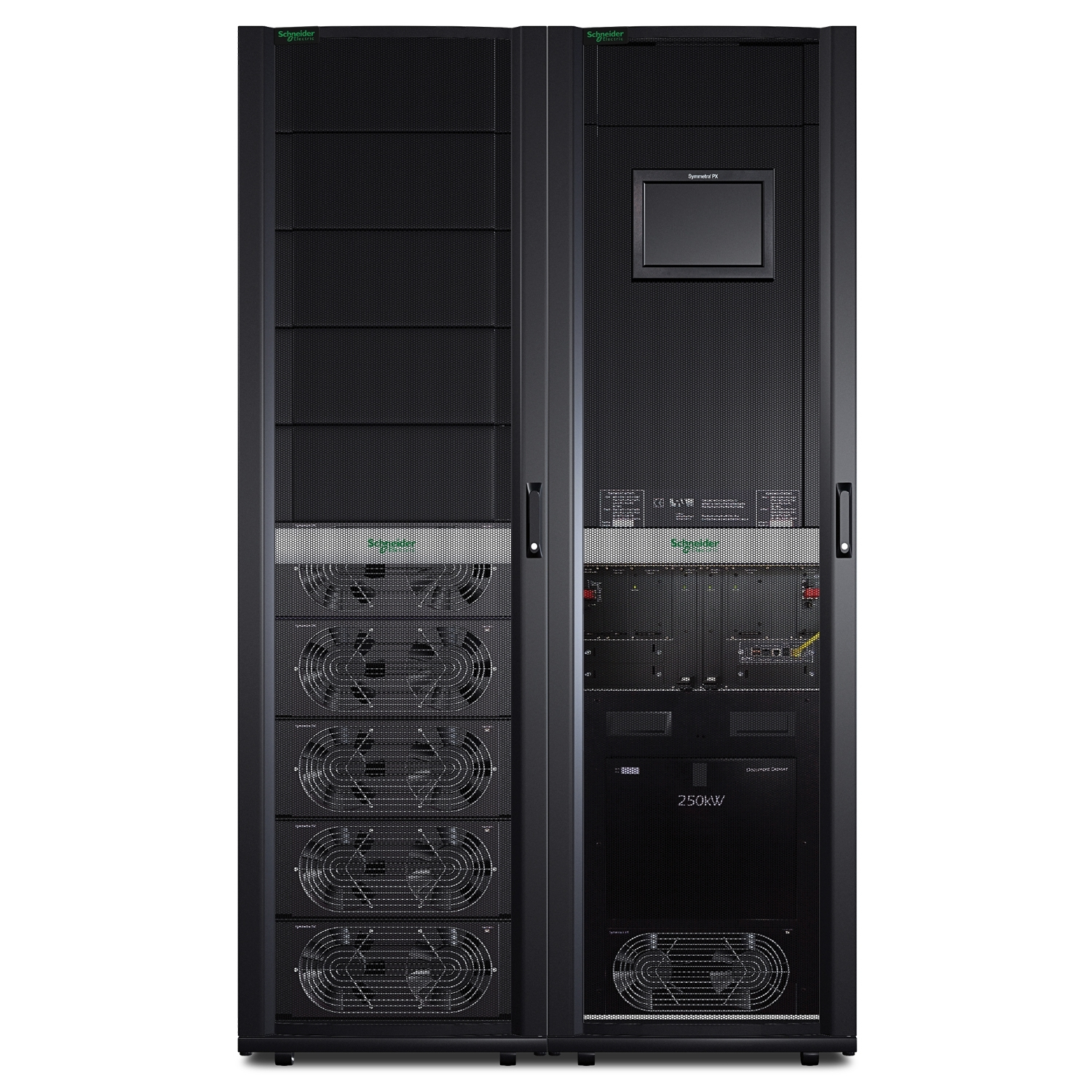

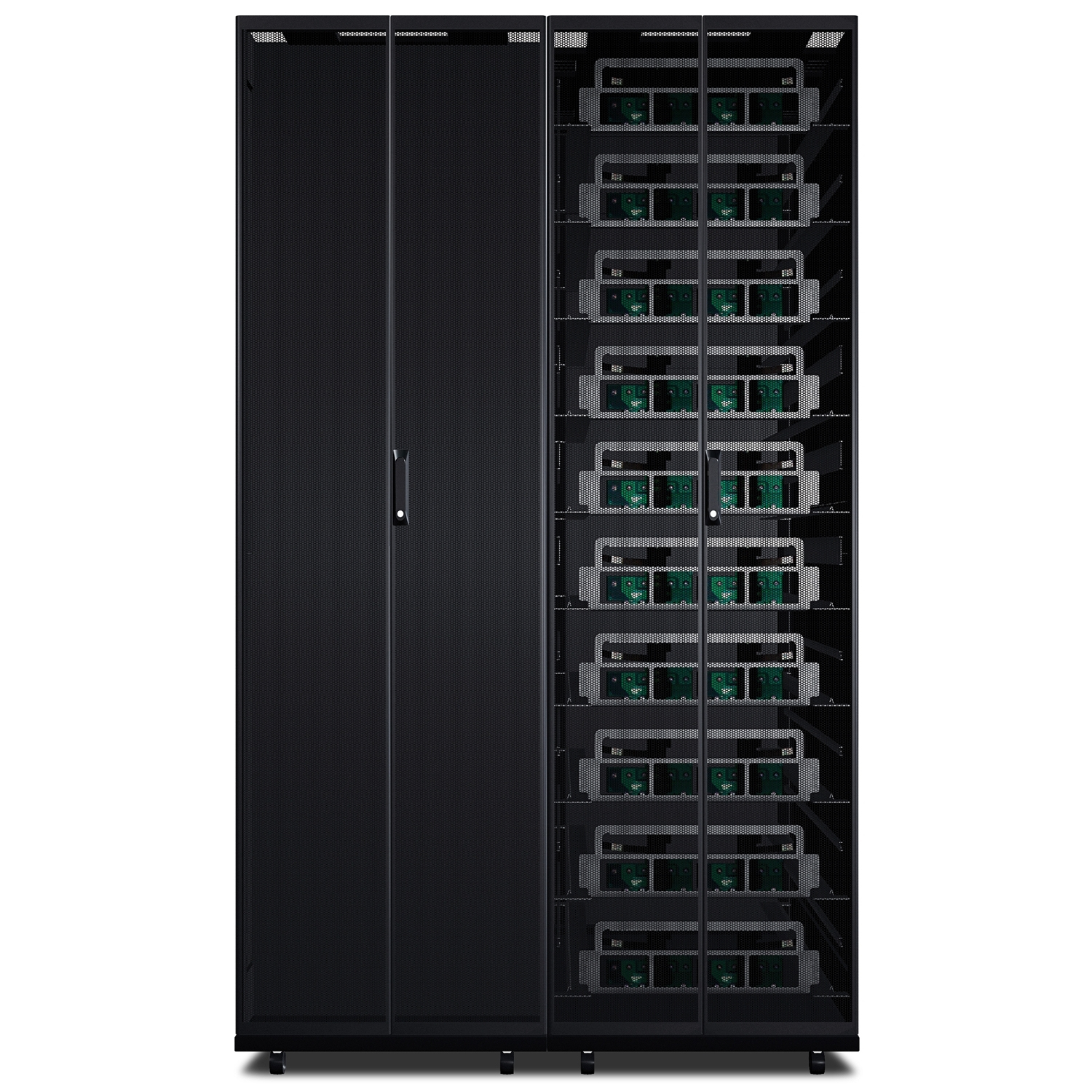

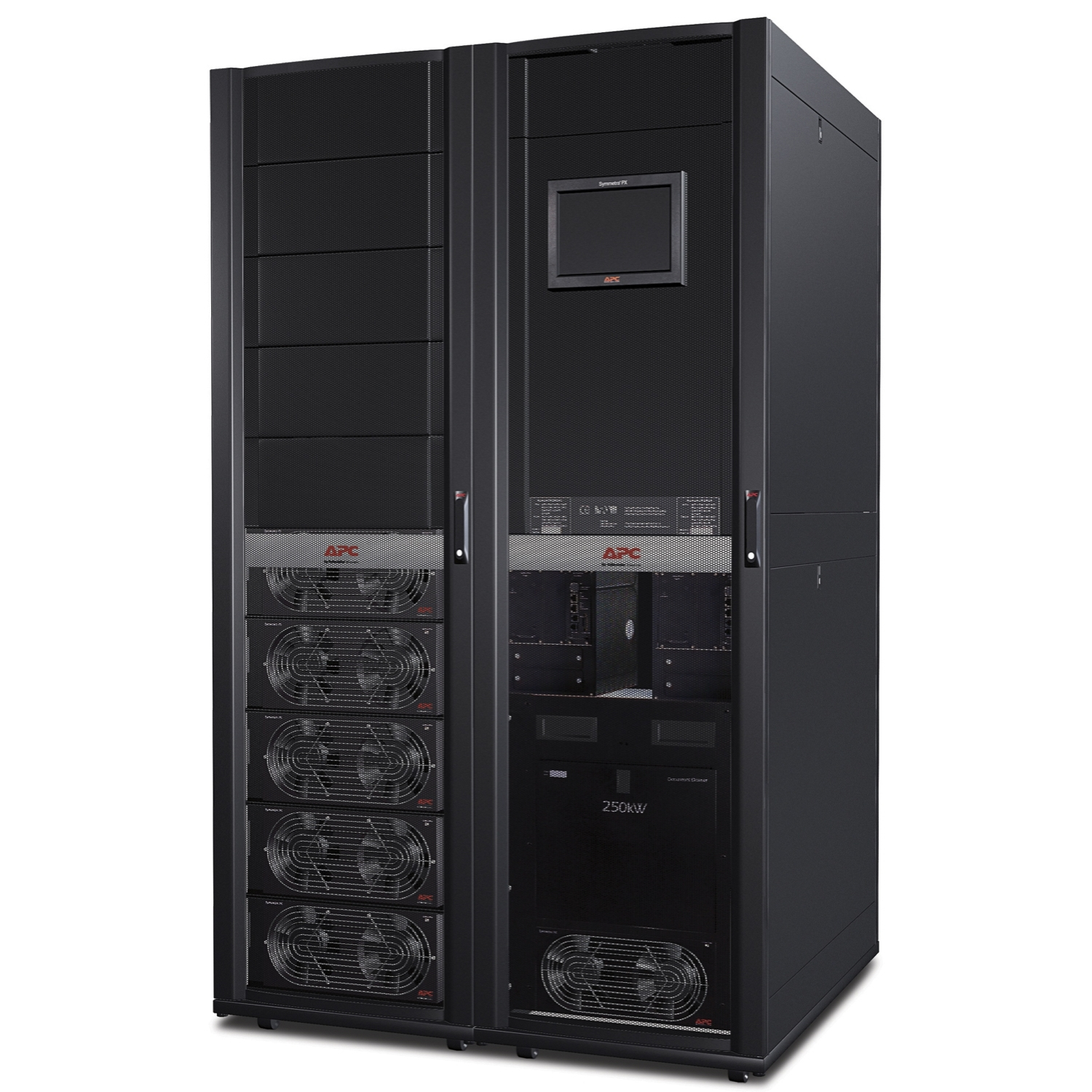

APC Symmetra PX 125kW Scalable to 250kW w/o Bypass, Distribution or Batteries-Parallel Capable

APC Symmetra PX 125kW Scalable to 250kW w/o Bypass, Distribution or Batteries-Parallel Capable

Model SY125K250D-NB

46 specifications
  • Noise54 dB
  • TypeTower
  • Weight864 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • RS-232 ports1
See all specifications

Overview

Noise
54 dB
Type
Tower
Weight
864 kg
Colour
Black
UPS topology
Double-conversion (Online)
RS-232 ports
1
Brand
APC
Model
SY125K250D-NB
Part number
SY125K250D-NB
Also known as
APC Symmetra PX 125kW Scalable to 250kW w/o Bypass, Distribution or Batteries-Parallel Capable

Specifications

46 specifications in 8 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity500 kVA
Output power500000 W
WaveformSine
Input operation voltage (min)400 V
Input operation voltage (max)552 V
Input frequency40/70 Hz
Output operation voltage (min)400 V
Output operation voltage (max)480 V
Output frequency50/60 Hz
Response time2 ms
Number of input phases3
Number of output phases3
Efficiency96%
Input power factor0.99
Output voltage Total Harmonic Distortion (THD)3%
Input current Total Harmonic Distortion (THD)5%
Noise level54 dB
Power protection featuresOverload, Short circuit
Audible alarm(s)Yes
Audible alarm modesAlarm when on battery, Low battery alarm

Ports & interfaces

AC outlet typesHard Wire 4-wire (3PH + G), Hard Wire 5-wire (3PH + N + G)
RS-232 ports1
SmartSlotYes

Design

Form factorTower
Product colourBlack
Display typeLCD
LED indicatorsYes
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-30 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 1000 m
Non-operating altitude0 - 15000 m

Packaging content

ManualYes
Quick installation guideYes

Certificates

CertificationcUL Listed, CSA C22.2 No.107.3-05, EN/IEC 62040-1-1, EN/IEC 62040-2, EN/IEC 62040-3, OSHPD, UL 1778, UL 60950-1, UL Listed

Weight & dimensions

Width1200 mm
Depth1070 mm
Height1991 mm
Weight864 kg

Packaging data

Package width1870 mm
Package depth1270 mm
Package height2150 mm
Package weight1000 kg
