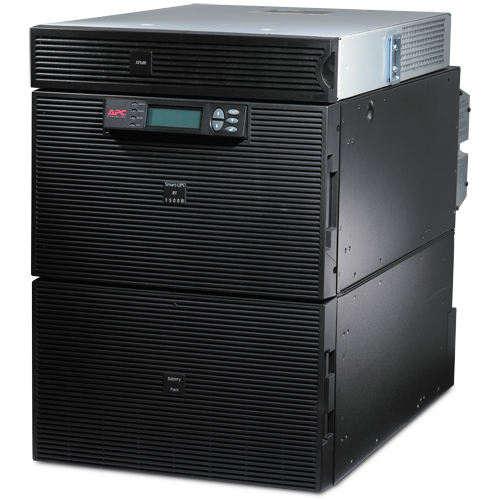

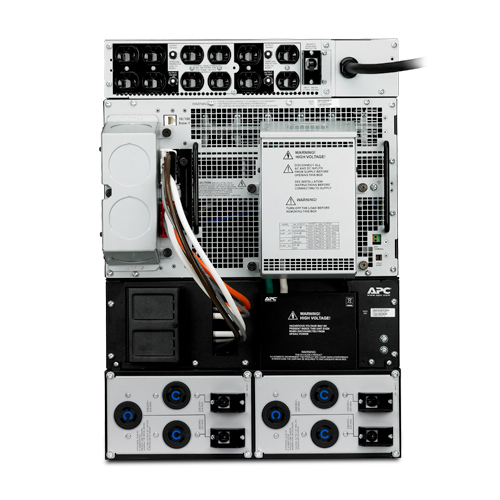

APC SURT20KRMXLT-TF5 uninterruptible power supply (UPS) 20 kVA 18 AC outlet(s)

APC SURT20KRMXLT-TF5 uninterruptible power supply (UPS) 20 kVA 18 AC outlet(s)

Model SURT20KRMXLT-TF5EAN 731304573487

53 specifications
  • ConnectivityDB-9 RS-232, RJ-45, Smart-Slot
  • TypeRackmount/Tower
  • Weight290.9 kg
  • ColourBlack
  • Output power capacity20 kVA
  • AC outlets quantity18 AC outlet(s)
See all specifications

Overview

Connectivity
DB-9 RS-232, RJ-45, Smart-Slot
Type
Rackmount/Tower
Weight
290.9 kg
Colour
Black
Output power capacity
20 kVA
AC outlets quantity
18 AC outlet(s)
Brand
APC
Model
SURT20KRMXLT-TF5
Part number
SURT20KRMXLT-TF5
EAN / UPC
731304573487
Also known as
APC SURT20KRMXLT-TF5 uninterruptible power supply (UPS) 20 kVA 18 AC outlet(s)

Specifications

53 specifications in 9 groups

Features

Output power capacity20 kVA
Input operation voltage (min)160 V
Input operation voltage (max)280 V
Input frequency50/60 Hz
Output operation voltage (min)120 V
Output operation voltage (max)208 V
Maximum current105 A
Efficiency94%
Crest factor3:1
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)5%
Input current Total Harmonic Distortion (THD)5%
EMI/RFI noise filteringYes
EMI/RFI noise filtering59 dB
Power protection featuresOverload
Audible alarm(s)Yes

Ports & interfaces

AC outlet typesNEMA 5–20R, NEMA L6-20R, NEMA L6-30R
AC outlets quantity18 AC outlet(s)
RS-232 ports1
Serial ports quantity3
Ethernet LAN (RJ-45) ports1

Battery

Battery technologySealed Lead Acid (VRLA)
Number of battery cells4
Battery recharge time2.50 h
Cold startYes

Design

Form factorRackmount/Tower
Product colourBlack
Rack capacity14U
Display typeLCD
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m

Certificates

CertificationUL 1778

Weight & dimensions

Width432 mm
Depth773 mm
Height622 mm
Weight290.9 kg

Packaging data

Package weight364.3 kg

Other features

Number of phases2
InterfaceDB-9 RS-232, RJ-45, Smart-Slot
Dimensions (WxDxH)432 x 773 x 622 mm
Filtering description0.3% IEEE
Networking features10/100 Base-T
Nominal input voltage208 V
Nominal output voltage120-208 V
Operating temperature (T-T)32 - 104 °F
Over current protectionYes
Overload protectionYes
Package dimensions (WxDxH)610 x 1003 x 1244 mm
