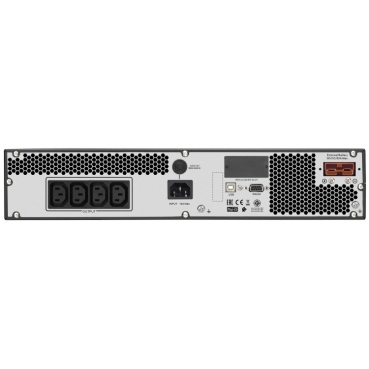

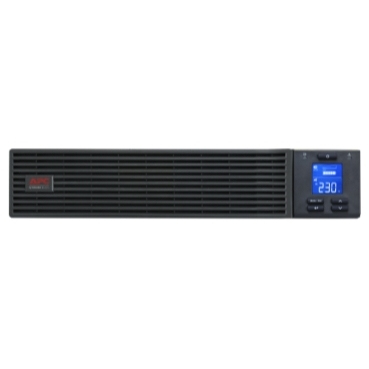

APC SRVPM1KRIL uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA
APC

SRVPM1KRIL uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA

800 W 4 AC outlet(s)

Model SRVPM1KRILEAN 731304402954

53 specifications
  • Noise50 dB
  • TypeRackmount
  • Weight6 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • AC outlet typesC13 coupler
See all specifications

Overview

Noise
50 dB
Type
Rackmount
Weight
6 kg
Colour
Black
UPS topology
Double-conversion (Online)
AC outlet types
C13 coupler
Brand
APC
Model
SRVPM1KRIL
Part number
SRVPM1KRIL
EAN / UPC
731304402954
Also known as
APC SRVPM1KRIL uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 800 W 4 AC outlet(s)

Specifications

53 specifications in 10 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity1 kVA
Output power800 W
WaveformSine
Input operation voltage (min)110 V
Input operation voltage (max)285 V
Input frequency40/70 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Surge energy rating600 J
Heat dissipation372 BTU/h
Efficiency88%
Crest factor3:1
Output voltage Total Harmonic Distortion (THD)3%
Noise level50 dB

Ports & interfaces

AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity4 AC outlet(s)
USB portYes
Serial interfaceYes
Serial interface typeRS-232
SmartSlotYes

Battery

Battery voltage36 V

Design

Form factorRackmount
Product colourBlack
Rack capacity2U
Cable length1.5 m
Display typeLCD
LED indicatorsYes
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m

Packaging content

Batteries includedNo
Rack mount kitYes
Cables includedInput power cable, Output power cable, RS-232, USB cable
ManualYes

Certificates

Compliance certificatesCE, REACH, RoHS, WEEE
CertificationUKCA EAC TISI EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018

Sustainability

Doesn't containMercury
Sustainability complianceYes

Weight & dimensions

Width438 mm
Depth332 mm
Height86 mm
Weight6 kg

Packaging data

Package width445 mm
Package depth550 mm
Package height240 mm
Package weight9.3 kg
