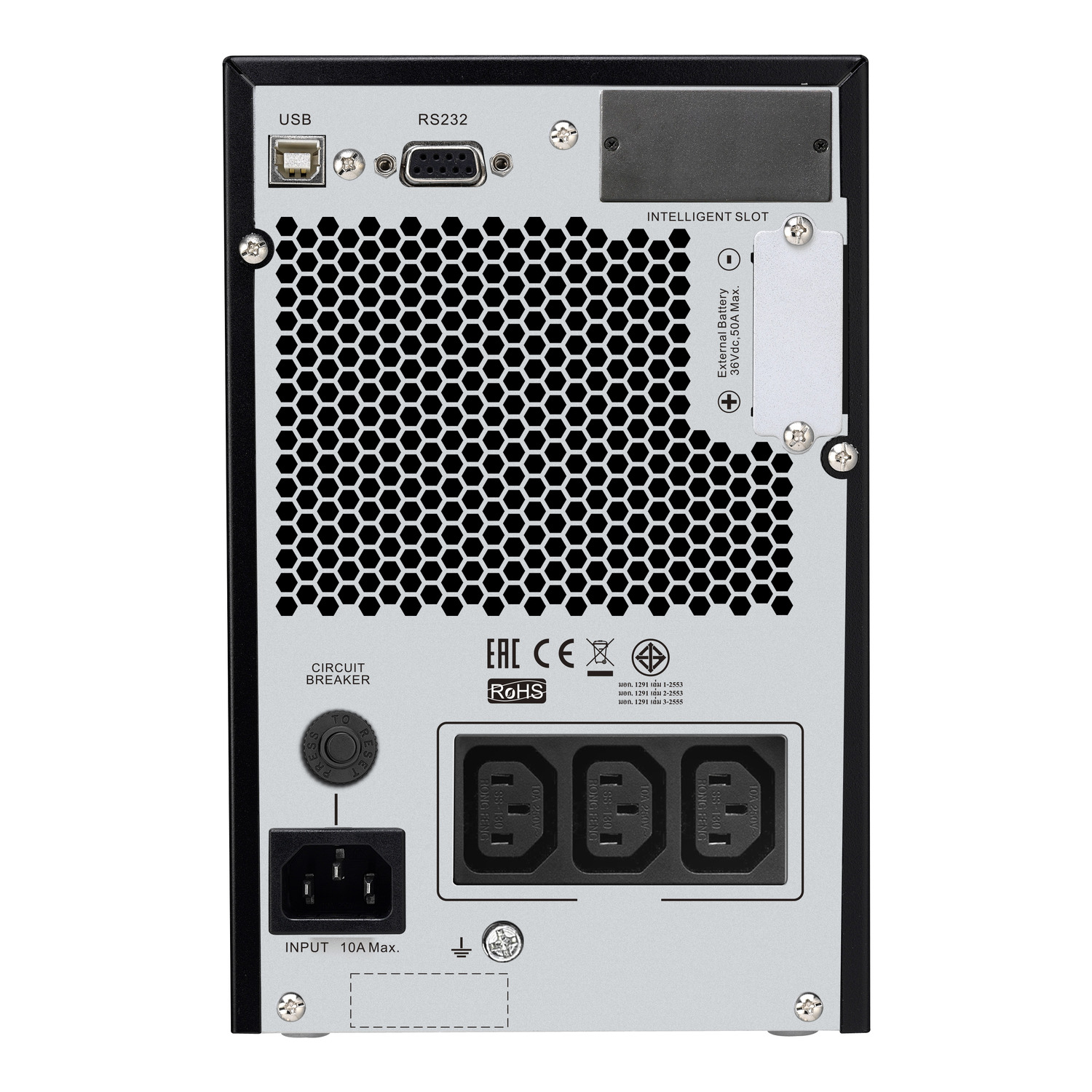

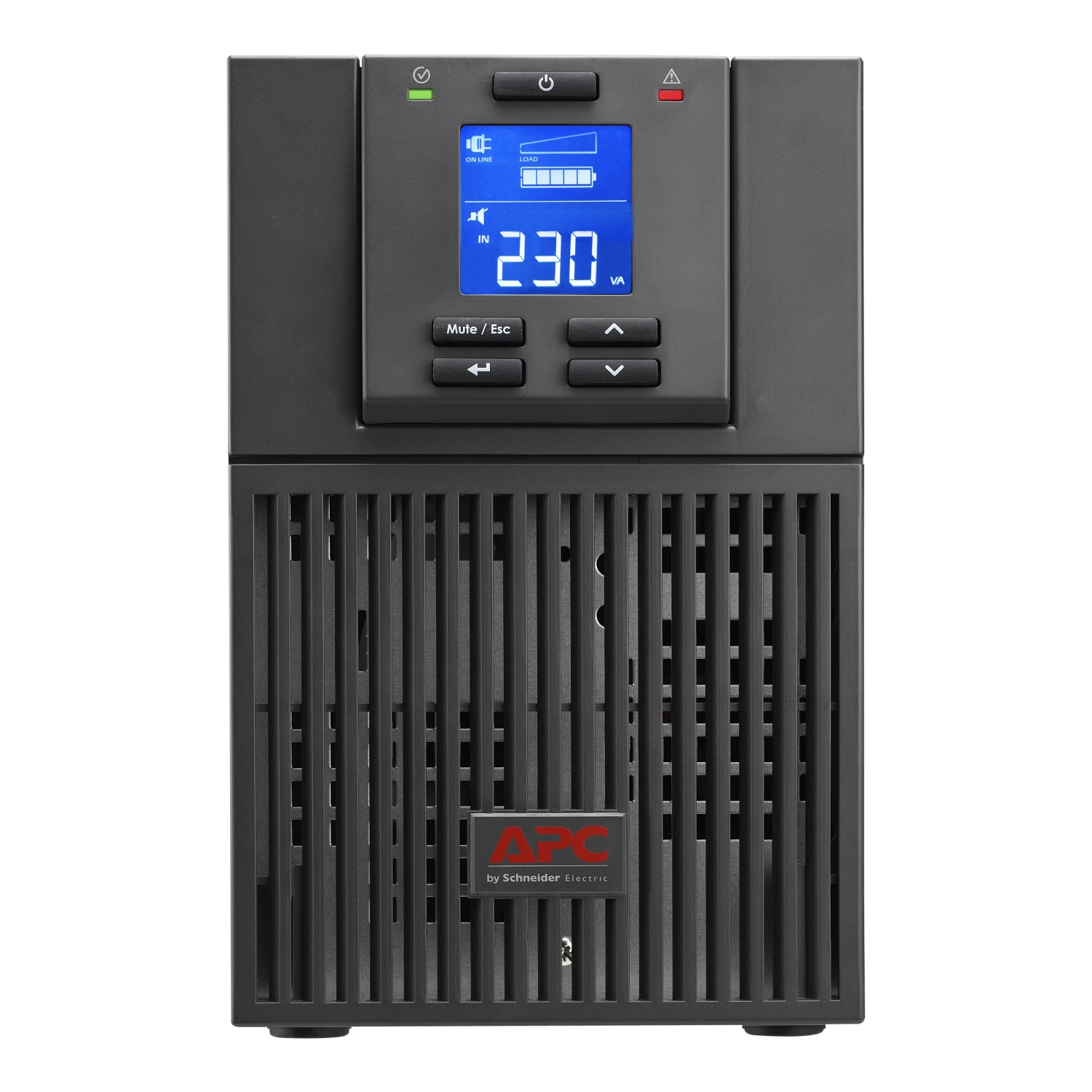

APC Easy UPS On-Line, 1000VA/800W, Tower

APC Easy UPS On-Line, 1000VA/800W, Tower

230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, No Battery

Model SRVPM1KILEAN 731304343424

53 specifications
  • TypeTower
  • Weight9.3 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • AC outlet typesC13 coupler
  • Battery technologySealed Lead Acid (VRLA)
See all specifications

Overview

Type
Tower
Weight
9.3 kg
Colour
Black
UPS topology
Double-conversion (Online)
AC outlet types
C13 coupler
Battery technology
Sealed Lead Acid (VRLA)
Brand
APC
Model
SRVPM1KIL
Part number
SRVPM1KIL
EAN / UPC
731304343424
Also known as
APC Easy UPS On-Line, 1000VA/800W, Tower, 230V, 3x IEC C13 outlets, Intelligent Card Slot, LCD, Extended runtime, No Battery

Specifications

53 specifications in 10 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity1 kVA
Output power800 W
WaveformSine
Input operation voltage (min)160 V
Input operation voltage (max)280 V
Input frequency40/70 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Surge energy rating600 J
Crest factor3:1
ECO modeYes
Output voltage Total Harmonic Distortion (THD)3%
Audible alarm(s)Yes
Audible alarm modesAlarm when on battery, Low battery alarm, Overload alarm
Auto-restartYes

Ports & interfaces

AC outlet typesC13 coupler
Power plugC14 coupler
AC outlets quantity3 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
Serial interfaceYes
Serial interface typeRS-232
Serial ports quantity1
SmartSlotYes

Battery

Battery technologySealed Lead Acid (VRLA)
Battery recharge time4 h
Automatic battery testYes
Battery weight10.6 kg

Design

Form factorTower
Product colourBlack
Display typeLCD
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 14763.6 m

Packaging content

Cables includedUSB cable
ManualYes

Certificates

Compliance certificatesRoHS
CertificationCE, IEC 62040-1-1, IEC 62040-1-2 REACH

Weight & dimensions

Width145 mm
Depth288 mm
Height223 mm
Weight9.3 kg
Battery width23.5 cm
Battery depth36.5 cm
Battery height33 cm

Logistics data

Harmonized System (HS) code85078000

Other features

Nominal input voltage230 V
Nominal output voltage230 V
