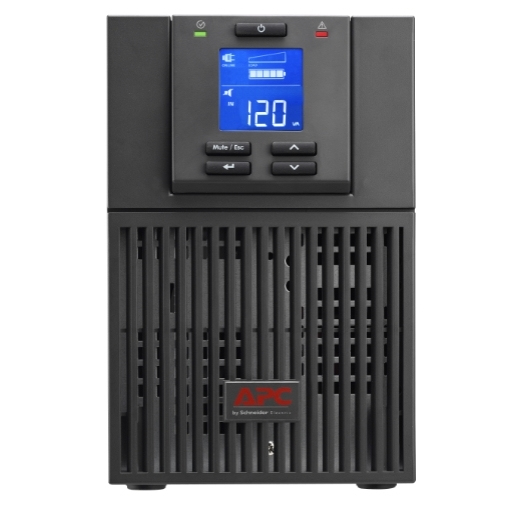

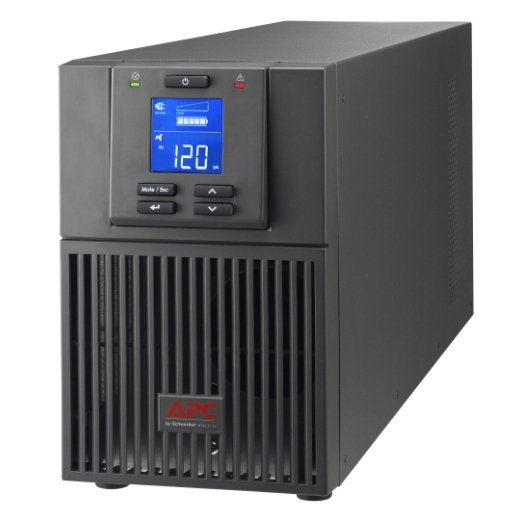

APC SRV1KA uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA

APC SRV1KA uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA

800 W

Model SRV1KA

41 specifications
  • TypeTower
  • Weight9.6 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • AC outlet typesNEMA 5-15R
  • Battery technologySealed Lead Acid (VRLA)
See all specifications

Overview

Type
Tower
Weight
9.6 kg
Colour
Black
UPS topology
Double-conversion (Online)
AC outlet types
NEMA 5-15R
Battery technology
Sealed Lead Acid (VRLA)
Brand
APC
Model
SRV1KA
Part number
SRV1KA
Also known as
APC SRV1KA uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 800 W

Specifications

41 specifications in 8 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity1 kVA
Output power800 W
WaveformSine
Input operation voltage (min)85 V
Input operation voltage (max)150 V
Input frequency40 - 70 Hz
Output operation voltage (min)110 V
Output operation voltage (max)115 V
Output frequency50/60 Hz
Surge energy rating600 J
Efficiency (On-line mode)88%
Crest factor3:1
Audible alarm(s)Yes
Audible alarm modesAlarm when on battery, Low battery alarm, Overload alarm

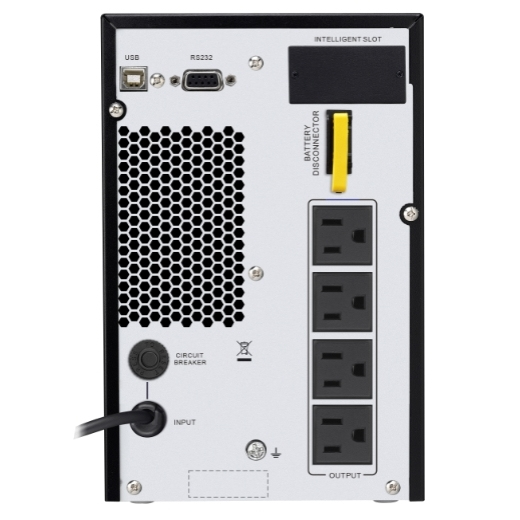

Ports & interfaces

AC outlet typesNEMA 5-15R
USB portYes
RS-232 ports1
SmartSlotYes

Battery

Battery technologySealed Lead Acid (VRLA)
Battery recharge time4 h

Design

Form factorTower
Product colourBlack
Cable length1.5 m
Display typeLCD
LED indicatorsYes
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Non-operating altitude0 - 15240 m

Certificates

CertificationCE, IEC 62040-1-1, IEC 62040-1-2, NOM

Weight & dimensions

Width145 mm
Depth288 mm
Height223 mm
Weight9.6 kg

Packaging data

Package width235 mm
Package depth365 mm
Package height330 mm
Package weight10.9 kg
