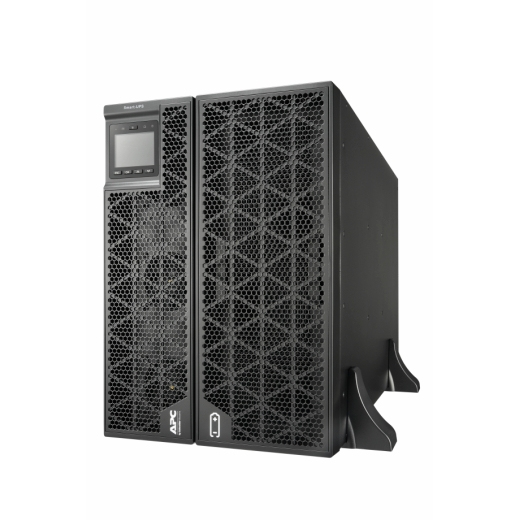

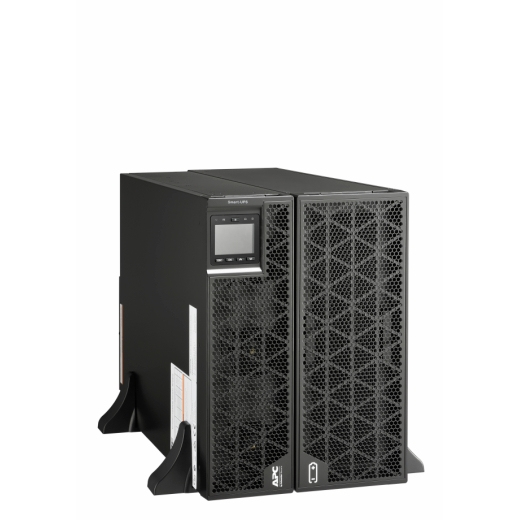

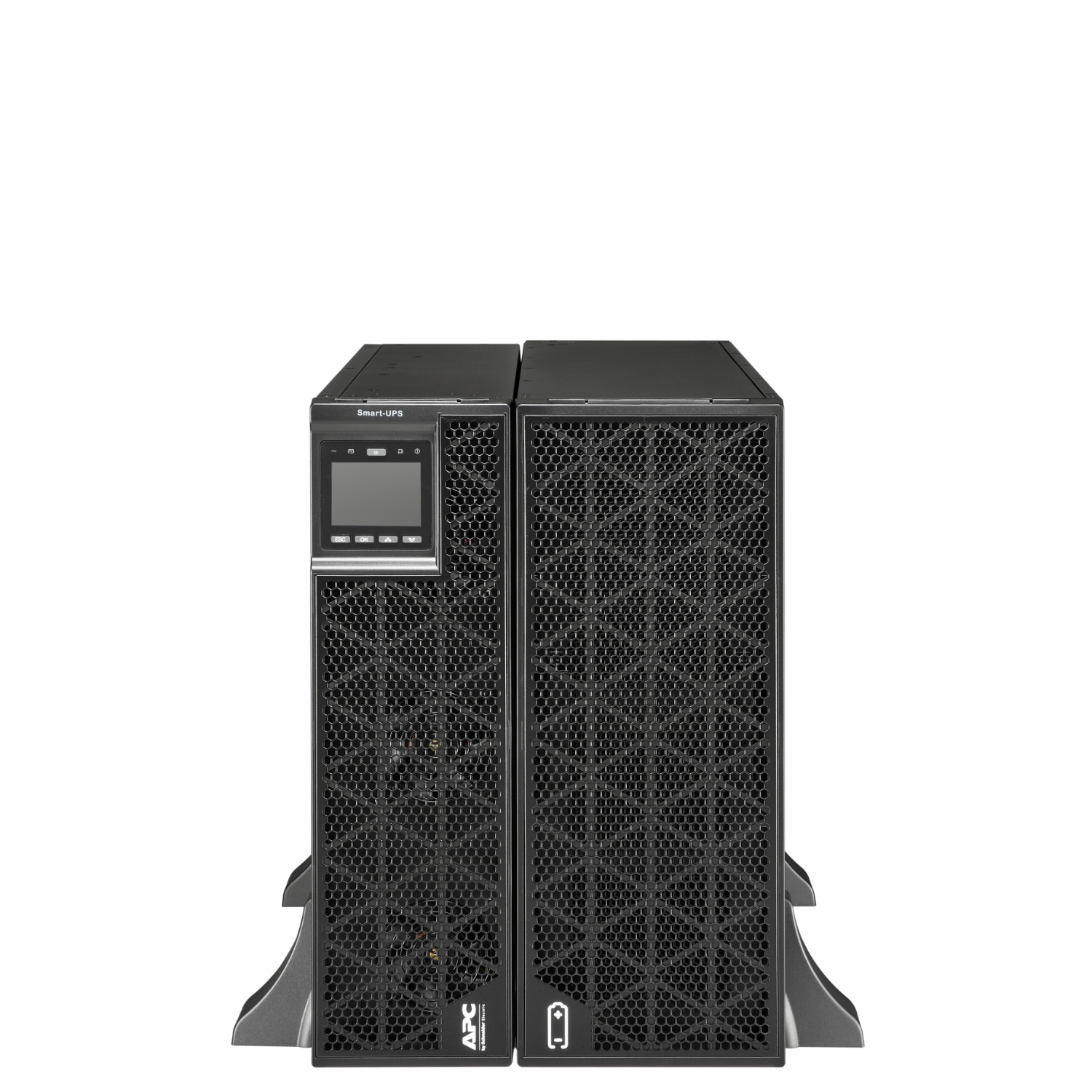

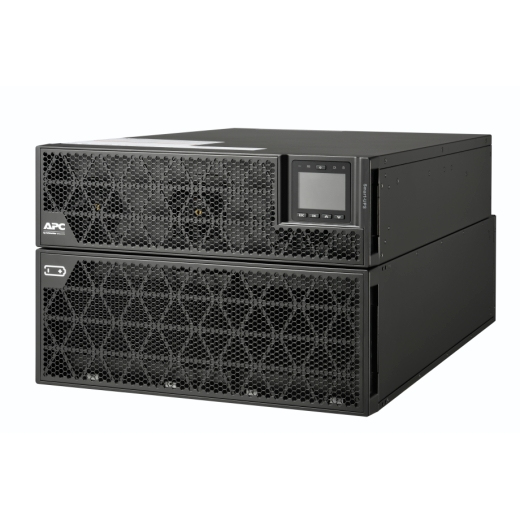

APC Smart-UPS On-Line, 20kVA/20kW, Rack/Tower
APC

Smart-UPS On-Line, 20kVA/20kW, Rack/Tower

230V/380V...415V, Hard wire 5-wire(3P+N+E)+3-wire(1P+N+E), Network Card, W/O rail kit

Model SRTG20KXLIEAN 731304411901

53 specifications
  • Noise58 dB
  • TypeRackmount/Tower
  • Weight142.5 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • USB portYes
See all specifications

Overview

Noise
58 dB
Type
Rackmount/Tower
Weight
142.5 kg
Colour
Black
UPS topology
Double-conversion (Online)
USB port
Yes
Brand
APC
Model
SRTG20KXLI
Part number
SRTG20KXLI
EAN / UPC
731304411901, 3540260222936, 8592978435455
Also known as
APC Smart-UPS On-Line, 20kVA/20kW, Rack/Tower, 230V/380V...415V, Hard wire 5-wire(3P+N+E)+3-wire(1P+N+E), Network Card, W/O rail kit

Specifications

53 specifications in 9 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity20 kVA
Output power20000 W
WaveformSine
Input operation voltage (min)160 V
Input operation voltage (max)415 V
Input frequency40/70 Hz
Output operation voltage (max)230 V
Output frequency50/60 Hz
Output frequency regulation0.1 Hz
Maximum current87 A
Number of output phases3
Efficiency93%
Crest factor3:1
Emergency Power Off (EPO)Yes
Input current Total Harmonic Distortion (THD)5%
Noise level58 dB
Surge protectionYes
Audible alarm(s)Yes
Audible alarm modesAlarm when on battery, Low battery alarm, Overload alarm
Auto-restartYes

Ports & interfaces

AC outlet typesHard Wire 3-wire (1PH + N + G), Hard Wire 5-wire (3PH + N + G)
USB portYes
Serial interfaceYes
Serial interface typeRS-232
SmartSlotYes
SmartConnect portNo

Battery

Battery technologySealed Lead Acid (VRLA)
Battery voltage192 V
Battery life (max)5 year(s)
Battery recharge time4 h
Cold startYes

Design

Form factorRackmount/Tower
Product colourBlack
Display typeLCD
LED indicatorsYes
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 2011.68 m
Non-operating altitude0 - 15240 m

Packaging content

Cables includedRS-232
Management card includedYes

Weight & dimensions

Width440 mm
Depth700 mm
Height306 mm
Weight142.5 kg

Packaging data

Package width590 mm
Package depth790 mm
Package height535 mm

Logistics data

Harmonized System (HS) code85078000
