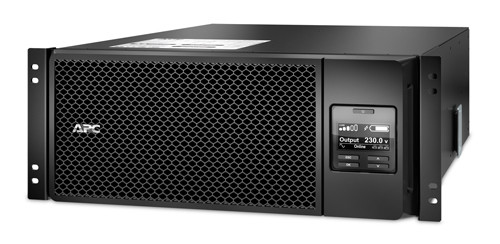

APC Smart-UPS On-Line, 5kVA, Rackmount 3U

APC Smart-UPS On-Line, 5kVA, Rackmount 3U

230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit, Marine

Model SRT5KRMXLIMEAN 731304320821

61 specifications
  • Noise55 dB
  • TypeMini Tower
  • Weight54.4 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
  • Power plugTerminal
See all specifications

Overview

Noise
55 dB
Type
Mini Tower
Weight
54.4 kg
Colour
Black
UPS topology
Double-conversion (Online)
Power plug
Terminal
Brand
APC
Model
SRT5KRMXLIM
Part number
SRT5KRMXLIM
EAN / UPC
731304320821, 7313043208214
Also known as
APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit, Marine

Specifications

61 specifications in 10 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity5 kVA
Output power4500 W
WaveformPure sine
Input operation voltage (min)160 V
Input operation voltage (max)275 V
Input frequency45/65 Hz
Output operation voltage (min)220 V
Output operation voltage (max)230 V
Output frequency50/60 Hz
Surge energy rating480 J
Crest factor3:1
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)3%
Noise level55 dB
Surge protectionYes
Audible alarm(s)Yes
Temperature voltage compensationYes

Ports & interfaces

AC outlet typesC13 coupler, C19 coupler, IEC Jumpers
Power plugTerminal
AC outlets quantity12 AC outlet(s)
USB portYes
USB 2.0 ports quantity1
Serial interfaceYes
Serial interface typeRJ-45
Serial ports quantity1
Ethernet LAN (RJ-45) ports1
Cabling technology10/100Base-T
SmartSlotYes

Battery

Battery technologySealed Lead Acid (VRLA)
Number of batteries supported1
Battery life (max)5 year(s)
Battery recharge time1 h
Hot-swap batteryYes
Automatic battery testYes

Design

Form factorMini Tower
Product colourBlack
Display typeLCD
LED indicatorsYes
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m

Packaging content

Quick installation guideYes

Certificates

Compliance certificatesRoHS
CertificationCE, DNV, EAC, RCM, VDE, REACH

Weight & dimensions

Width432 mm
Depth719 mm
Height130 mm
Weight54.4 kg

Packaging data

Resource CDYes
Warranty cardYes
Package width610 mm
Package depth960 mm
Package height330 mm
Package weight66.9 kg

Logistics data

Harmonized System (HS) code85078000
Total carbon footprint (kg of CO2e)46266.7
