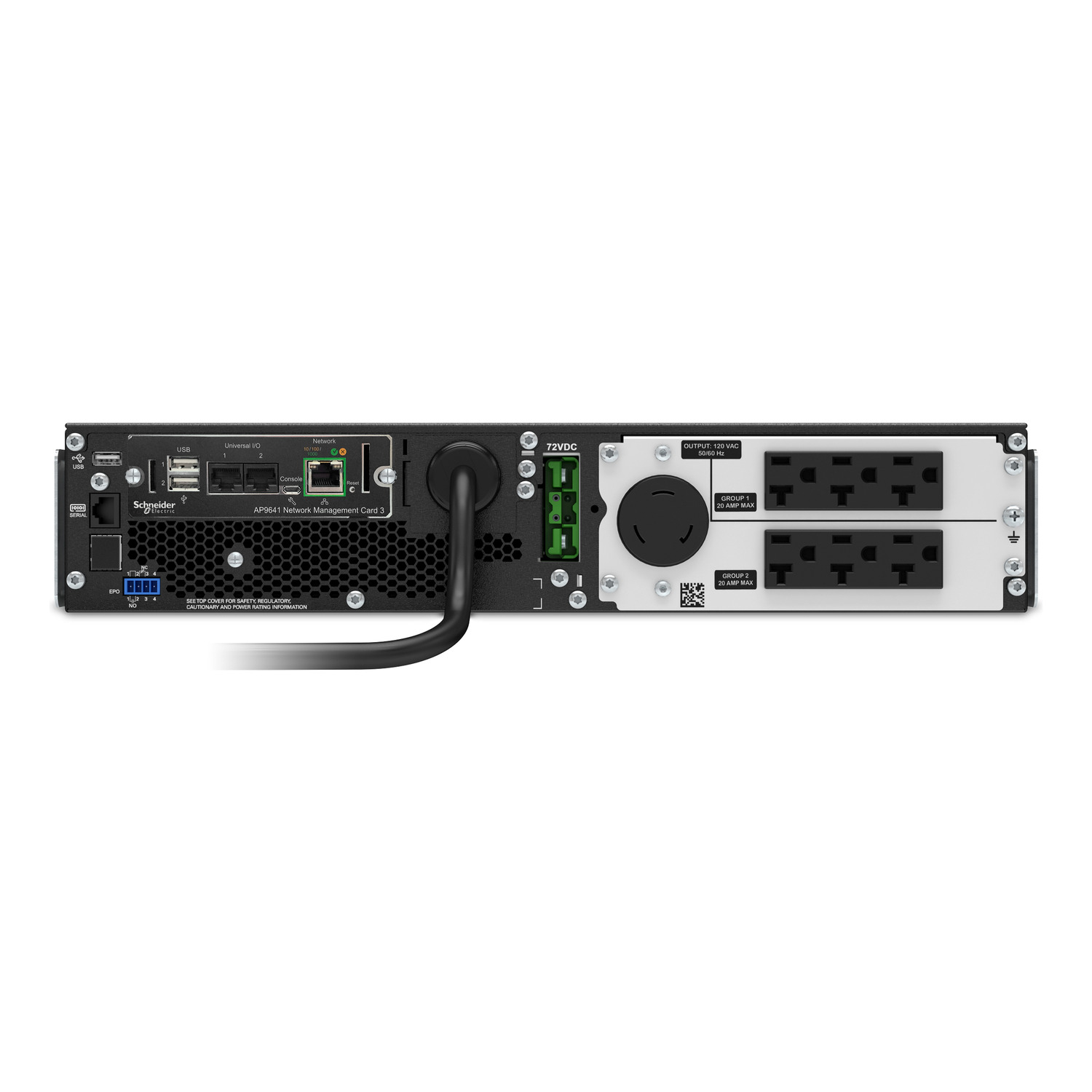

APC Smart-UPS On-Line, 2200VA, Rackmount 2U

APC Smart-UPS On-Line, 2200VA, Rackmount 2U

120V, 6x 5-20R+1x L5-20R NEMA outlets, Network Card, Extended runtime, W/ rail kit

Model SRT2200RMXLA-NCEAN 731304325154

74 specifications
  • Battery306 Ah
  • Noise55 dB
  • TypeRackmount/Tower
  • Weight25 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
See all specifications

Overview

Battery
306 Ah
Noise
55 dB
Type
Rackmount/Tower
Weight
25 kg
Colour
Black
UPS topology
Double-conversion (Online)
Brand
APC
Model
SRT2200RMXLA-NC
Part number
SRT2200RMXLA-NC
EAN / UPC
731304325154
Also known as
APC Smart-UPS On-Line, 2200VA, Rackmount 2U, 120V, 6x 5-20R+1x L5-20R NEMA outlets, Network Card, Extended runtime, W/ rail kit

Specifications

74 specifications in 12 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity2.2 kVA
Output power1800 W
WaveformSine
Input operation voltage (min)120 V
Input operation voltage (max)120 V
Input frequency40/70 Hz
Output operation voltage (min)120 V
Output operation voltage (max)120 V
Output frequency50/60 Hz
Surge energy rating340 J
Number of input phases1
Number of output phases1
Single-phase input voltage supported120 V
Crest factor3:1
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)2%
Noise level55 dB
Surge protectionYes
Audible alarm(s)Yes
Auto-restartYes

Ports & interfaces

AC outlet typesNEMA 5–20R, NEMA L5-20R
Power plugNEMA 5-20P
USB portYes
Serial interfaceYes
Serial interface typeRJ-45
SmartSlotYes

Battery

Battery replacement accessibilityEnd-user
Battery technologySealed Lead Acid (VRLA)
Battery capacity306 Ah
Battery life (max)5 year(s)
Battery recharge time3 h
Hot-swap batteryYes
Automatic battery testYes
Cold startYes
Replacement battery cartridgeAPCRBC141

Design

Form factorRackmount/Tower
Product colourBlack
Rack capacity2U
Cable length1.8 m
Display typeLCD
LED indicatorsAlarm, Status
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m

Certificates

Compliance certificatesRoHS, REACH, WEEE
Waste Electrical and Electronic Equipment (WEEE) complianceYes
CertificationENERGY STAR V2.0 (USA)

Sustainability

Sustainability certificatesENERGY STAR

Technical details

Packaging recycled materialsRecycled cardboard
Preferred mounting positionlower
Packaging without single use plasticNo
Proposition 65Yes
SCIP number4282bd22-a353-4f82-bb5c-97bbd7f1d1e9
Sustainable packagingNo
Take-back systemNo

Weight & dimensions

Width432 mm
Depth584 mm
Height85 mm
Weight25 kg

Packaging data

Package width599 mm
Package depth810 mm
Package height246 mm
Package weight34 kg

Logistics data

Products per pallet12 pc(s)
Customs product code (TARIC)8504409590
Total carbon footprint (kg of CO2e)5956.2860008137

Other features

Input connection typeNEMA 5-20P
Mountingfront; horizontal
Output connection type6 NEMA5-20R; 1 NEMAL5-20R
Output voltage120 V

Energy efficiency

ENERGY STAR certified

Uninterruptible power supplies · model SRT2200RMXLA-NCUS · certified Oct 31, 2023 · United States

Average efficiency92.3 %

ENERGY STAR certified

Uninterruptible power supplies · model SRT2200RMXLA-NC · certified Feb 14, 2019 · United States, Canada

Average efficiency92.3 %
