APC SRT2200RMXLA uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA

APC SRT2200RMXLA uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA

1800 W

Model SRT2200RMXLAEAN 731304323051

67 specifications
  • Battery306 Ah
  • Noise55 dB
  • TypeRackmount/Tower
  • Weight24.9 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
See all specifications

Overview

Battery
306 Ah
Noise
55 dB
Type
Rackmount/Tower
Weight
24.9 kg
Colour
Black
UPS topology
Double-conversion (Online)
Brand
APC
Model
SRT2200RMXLA
Part number
SRT2200RMXLA
EAN / UPC
731304323051
Also known as
APC SRT2200RMXLA uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 1800 W

Specifications

67 specifications in 11 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity2.2 kVA
Output power1800 W
WaveformSine
Input operation voltage (min)108 V
Input operation voltage (max)150 V
Input frequency40/70 Hz
Output operation voltage (min)120 V
Output operation voltage (max)120 V
Output frequency50/60 Hz
Surge energy rating340 J
Crest factor3:1
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)2%
Noise level55 dB
Surge protectionYes
Audible alarm(s)Yes
Auto-restartYes

Ports & interfaces

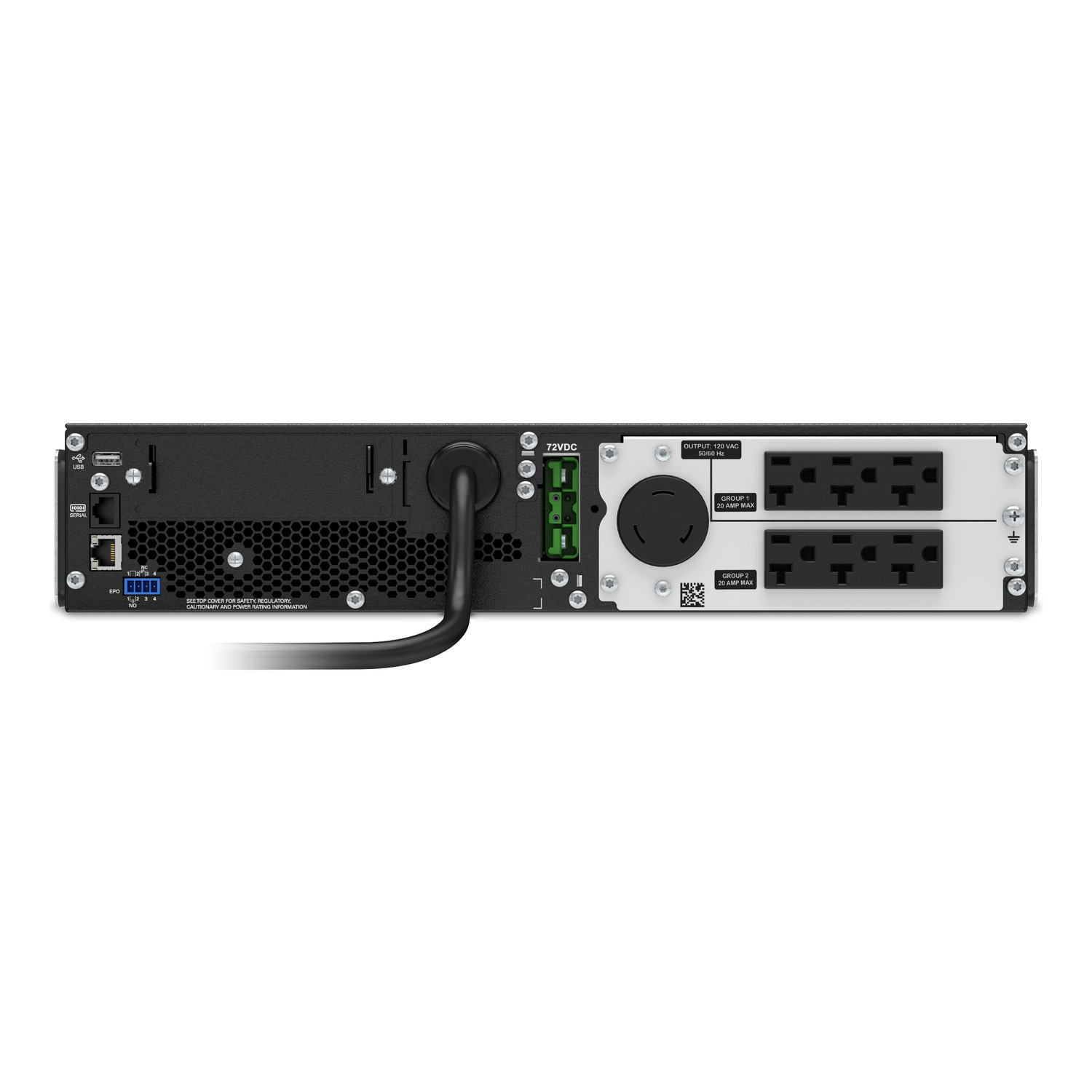

AC outlet typesNEMA 5–20R, NEMA L5-20R
Power plugNEMA 5-20P
USB portYes
Serial interfaceYes
Serial interface typeRJ-45
Serial ports quantity1
Ethernet LAN (RJ-45) ports1
SmartSlotYes

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity306 Ah
Typical backup time at full load3.3 min
Typical backup time at half load10.3 min
Battery life (max)5 year(s)
Hot-swap batteryYes
Automatic battery testYes
Cold startYes
Replacement battery cartridgeAPCRBC141

Design

Form factorRackmount/Tower
Product colourBlack
Rack capacity2U
Cable length1.83 m
Display typeLCD
LED indicatorsAlarm, Status
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m

Packaging content

Cables includedUSB cable
Quick installation guideYes

Certificates

Compliance certificatesRoHS
CertificationCSA C22.2 No.107.3-05, FCC Part 15 Class A, OSHPD, UL 1778

Sustainability

Sustainability certificatesENERGY STAR

Weight & dimensions

Width432 mm
Depth584 mm
Height85 mm
Weight24.9 kg

Packaging data

Screws includedYes
BracketYes
Resource CDYes
Software CDYes
Warranty cardYes
Package width599 mm
Package depth810 mm
Package height246 mm
Package weight34 kg

Logistics data

Products per pallet12 pc(s)
Harmonized System (HS) code85078000

Energy efficiency

ENERGY STAR certified

Uninterruptible power supplies · model SRT2200RMXLA · certified Feb 14, 2019 · United States, Canada

Average efficiency92.4 %
