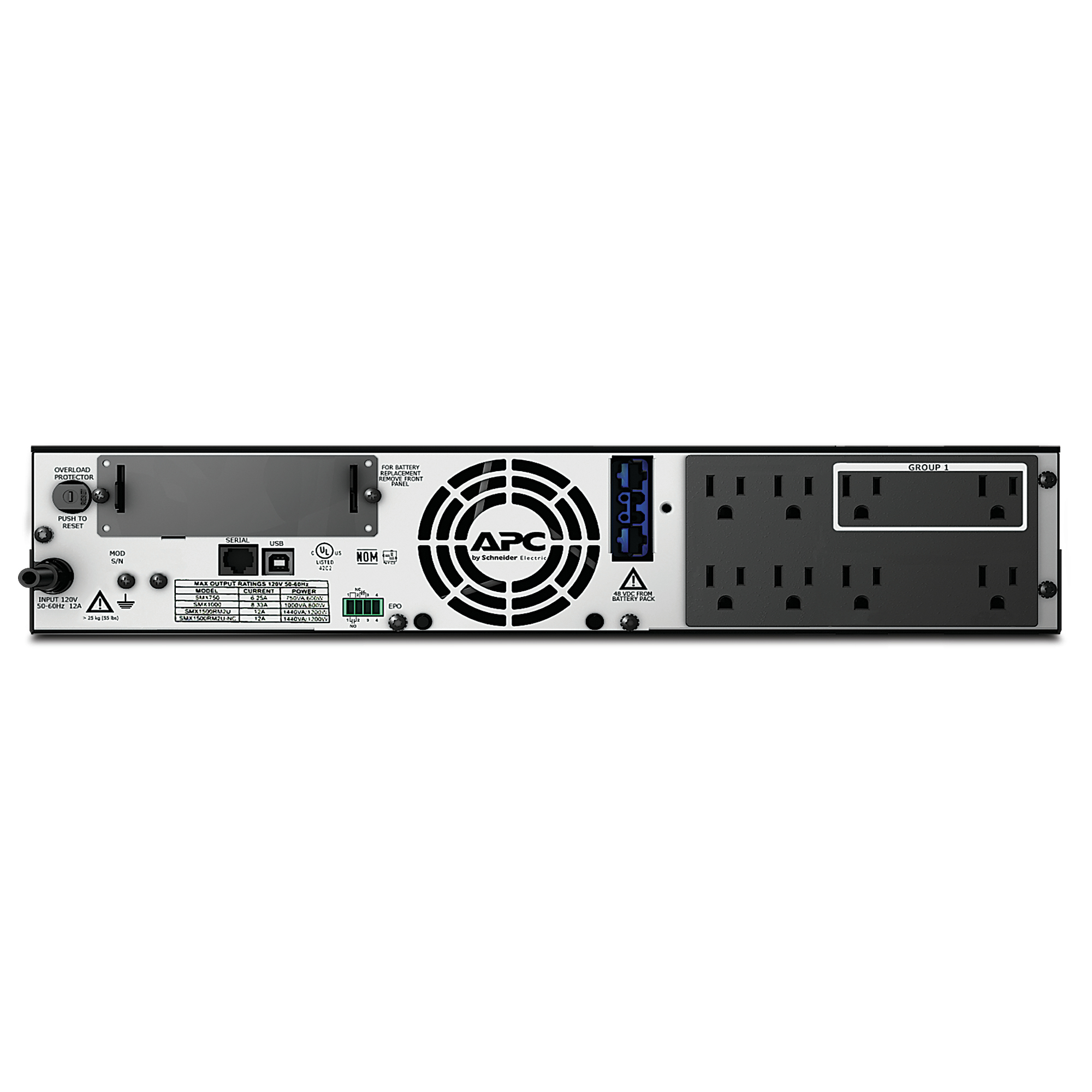

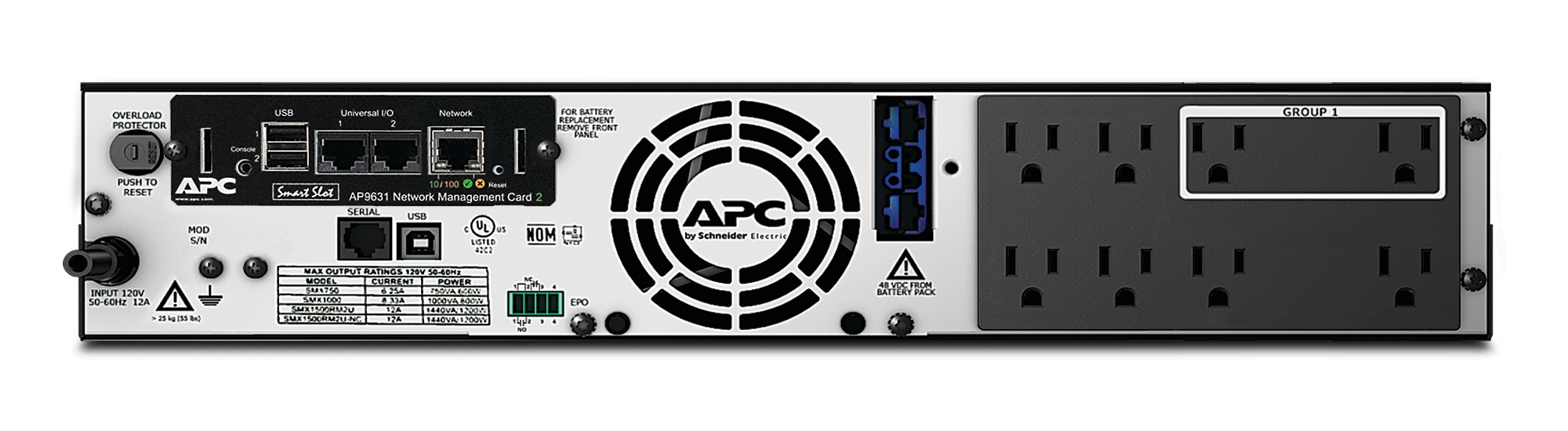

APC SMX750NC uninterruptible power supply (UPS) Line-Interactive 0.75 kVA

APC SMX750NC uninterruptible power supply (UPS) Line-Interactive 0.75 kVA

600 W

Model SMX750NCEAN 731304327752

49 specifications
  • Battery312 Ah
  • TypeRackmount/Tower
  • Weight22 kg
  • ColourBlack
  • UPS topologyLine-Interactive
  • AC outlet typesNEMA 5–15R
See all specifications

Overview

Battery
312 Ah
Type
Rackmount/Tower
Weight
22 kg
Colour
Black
UPS topology
Line-Interactive
AC outlet types
NEMA 5–15R
Brand
APC
Model
SMX750NC
Part number
SMX750NC
EAN / UPC
731304327752
Also known as
APC SMX750NC uninterruptible power supply (UPS) Line-Interactive 0.75 kVA 600 W

Specifications

49 specifications in 9 groups

Features

UPS topologyLine-Interactive
Output power capacity0.75 kVA
Output power600 W
WaveformSine
Input operation voltage (min)75 V
Input operation voltage (max)154 V
Input frequency50/60 Hz
Surge energy rating645 J
Audible alarm(s)Yes
Audible alarm modesAlarm when on battery, Battery replacement, Low battery alarm, Overload alarm

Ports & interfaces

AC outlet typesNEMA 5–15R
Power plugNEMA 5-15P
Serial interfaceYes
Serial interface typeRJ-45
Cabling technology10/100Base-T
SmartSlotYes

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity312 Ah
Number of batteries supported1
Battery life (max)5 year(s)
Battery recharge time3 h
Hot-swap batteryYes
Replacement battery cartridgeAPCRBC116

Design

Form factorRackmount/Tower
Product colourBlack
Rack capacity2U
Cable length2.44 m
Display typeLCD
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m

Packaging content

Rack mount kitYes
Cables includedRS-232, USB cable
ManualYes
Quick installation guideYes

Certificates

Compliance certificatesRoHS
CertificationcUL Listed, CSA, UL 1778

Weight & dimensions

Width89 mm
Depth490 mm
Height432 mm
Weight22 kg

Packaging data

Package width246 mm
Package depth620 mm
Package height589 mm
Package weight26.4 kg
