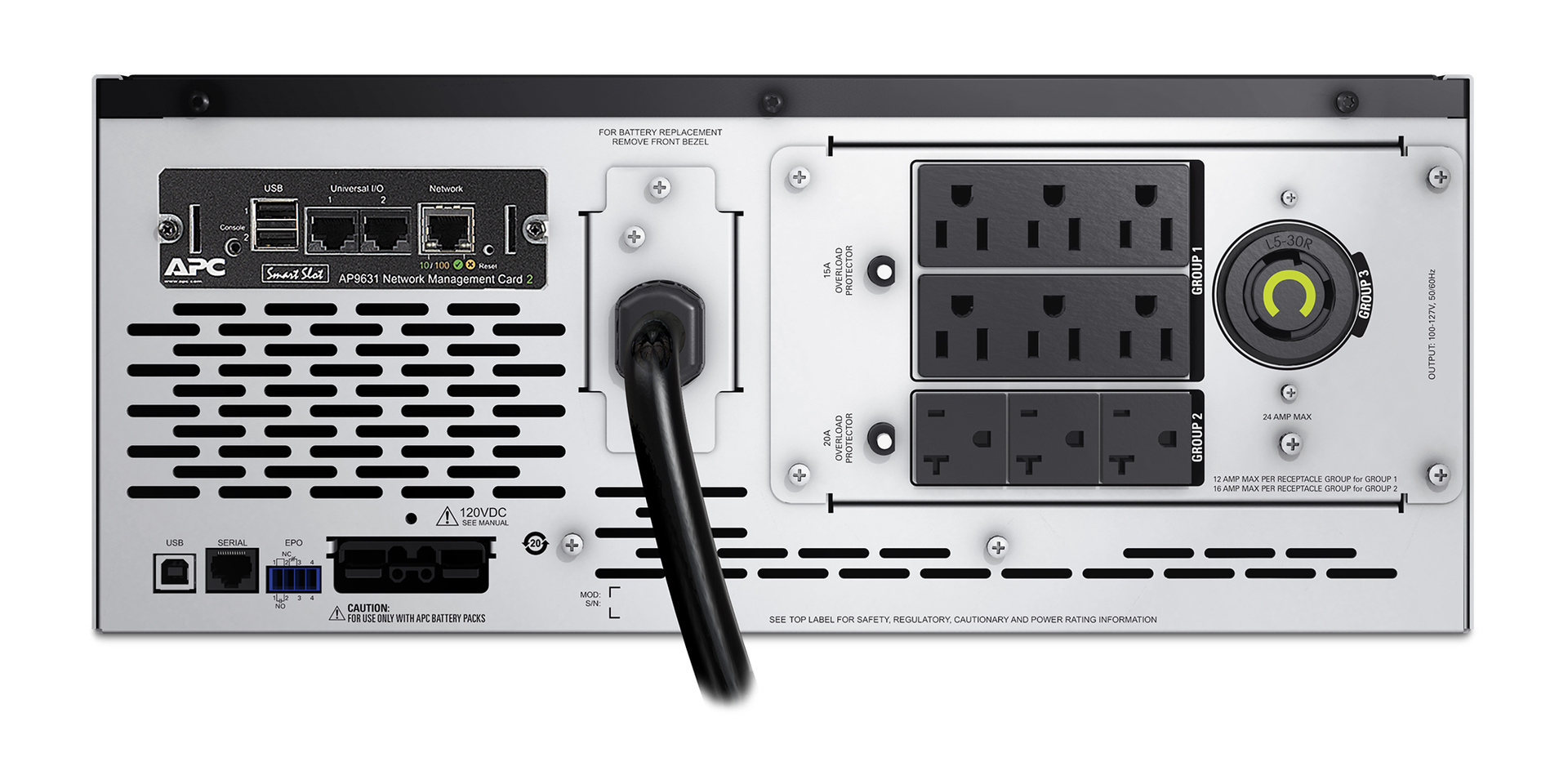

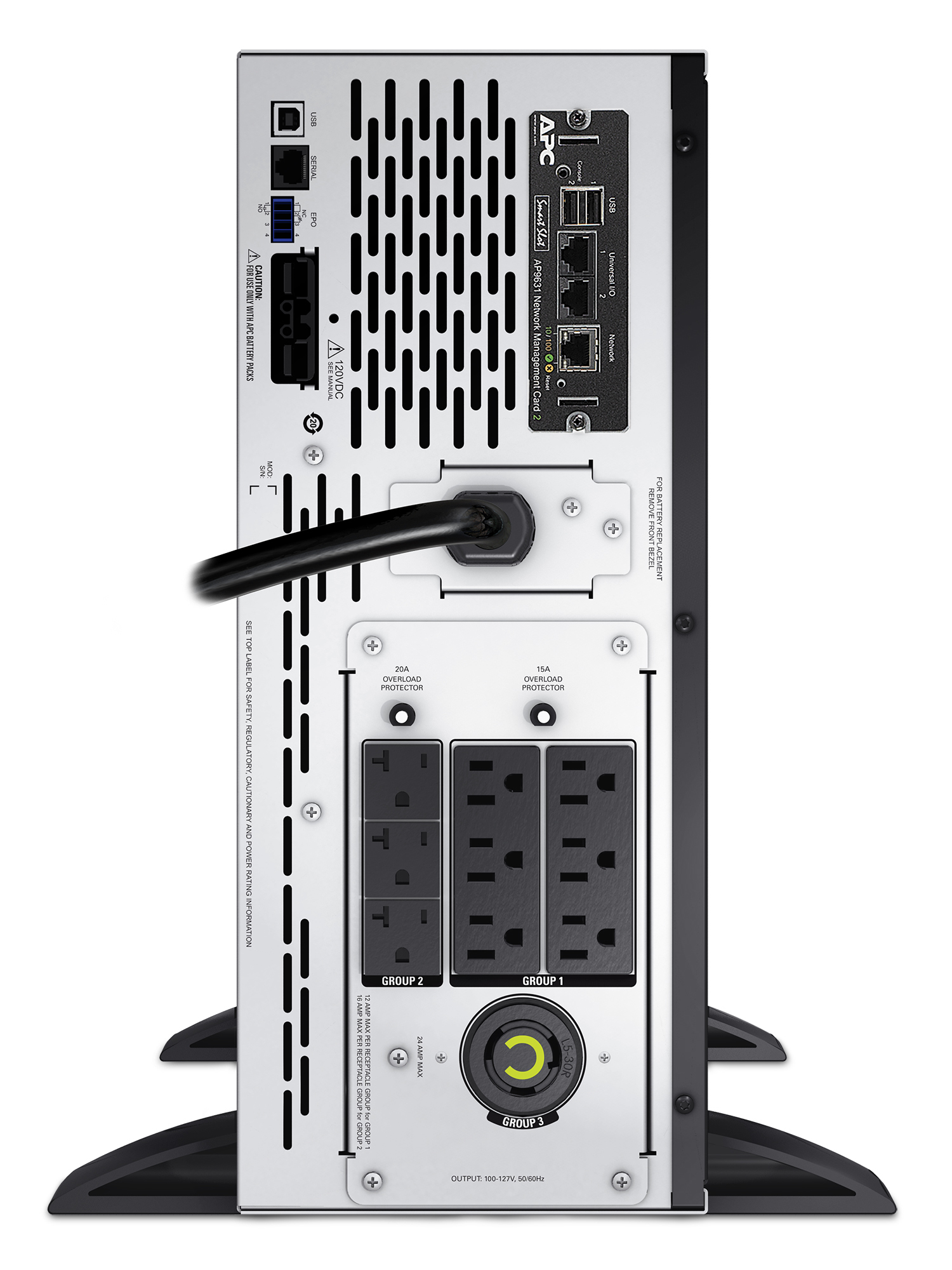

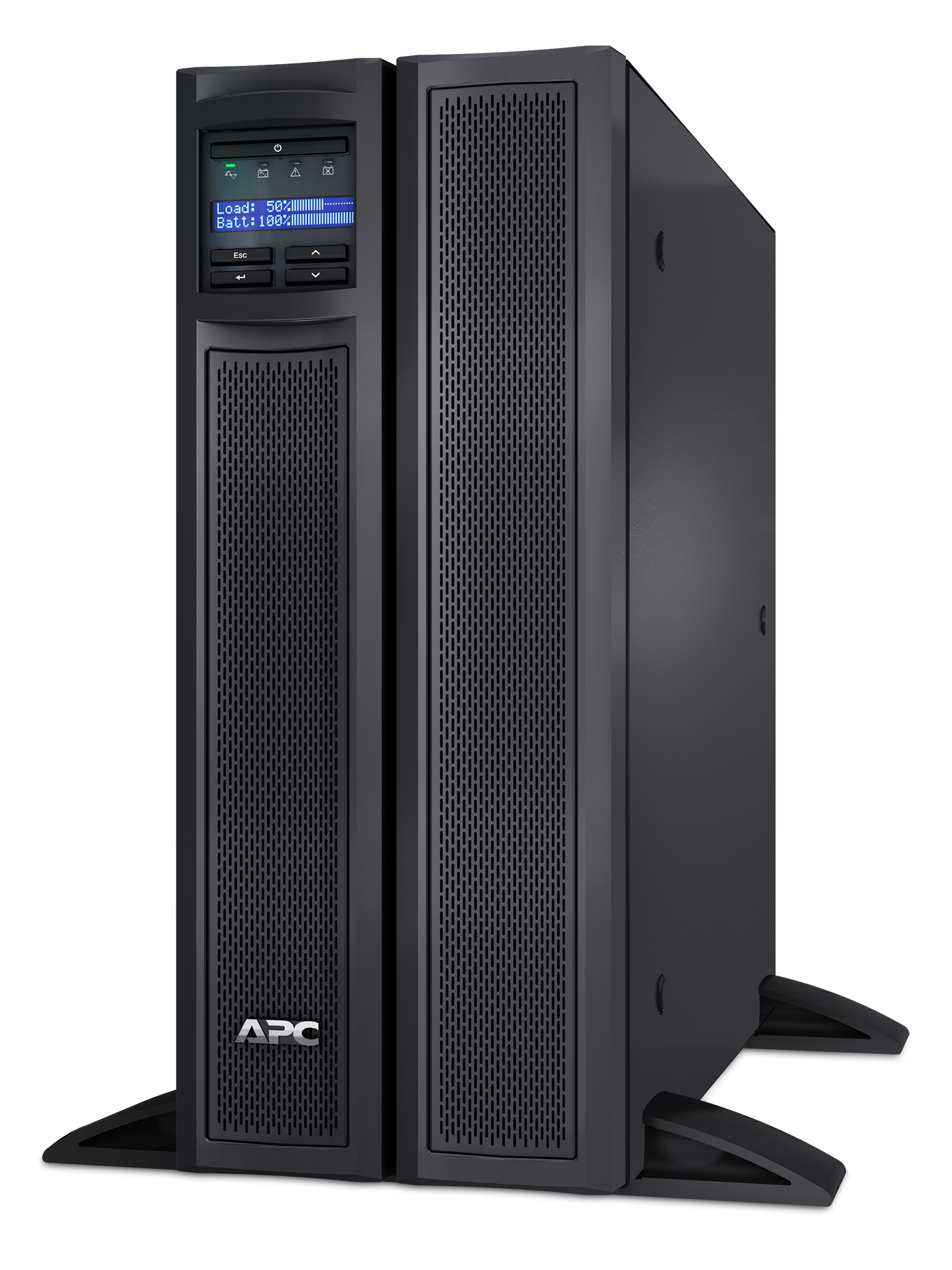

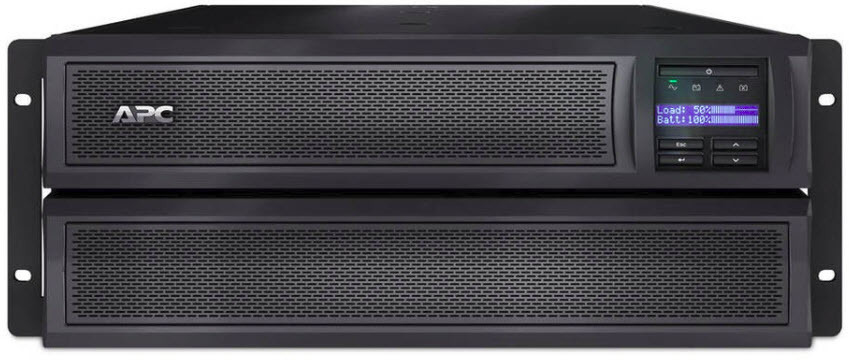

APC SMX3000LVNCUS uninterruptible power supply (UPS) Line-Interactive 2.88 kVA

APC SMX3000LVNCUS uninterruptible power supply (UPS) Line-Interactive 2.88 kVA

2700 W 10 AC outlet(s)

Model SMX3000LVNCUSEAN 731304340409

63 specifications
  • TypeRackmount/Tower
  • Weight38.6 kg
  • ColourBlack
  • UPS topologyLine-Interactive
  • Power plugNEMA L5-30P
  • Battery technologySealed Lead Acid (VRLA)
See all specifications

Overview

Type
Rackmount/Tower
Weight
38.6 kg
Colour
Black
UPS topology
Line-Interactive
Power plug
NEMA L5-30P
Battery technology
Sealed Lead Acid (VRLA)
Brand
APC
Model
SMX3000LVNCUS
Part number
SMX3000LVNCUS
EAN / UPC
731304340409
Also known as
APC SMX3000LVNCUS uninterruptible power supply (UPS) Line-Interactive 2.88 kVA 2700 W 10 AC outlet(s)

Specifications

63 specifications in 11 groups

Features

UPS topologyLine-Interactive
Output power capacity2.88 kVA
Output power2700 W
WaveformSine
Input operation voltage (min)70 V
Input operation voltage (max)153 V
Input frequency50/60 Hz
Output operation voltage (max)120 V
Output frequency50/60 Hz
Automatic Voltage Regulation (AVR)Yes
Maximum current15 A
Surge energy rating540 J
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)5%
EMI/RFI noise filtering55 dB
Power protection featuresOverload
Audible alarm(s)Yes
Web-based managementYes
Audible alarm modesAlarm when on battery, Low battery alarm, Overload alarm
Auto-restartYes

Ports & interfaces

AC outlet typesNEMA 5–15R, NEMA 5–20R, NEMA L5-30R
Power plugNEMA L5-30P
AC outlets quantity10 AC outlet(s)
USB portYes
Serial interfaceYes
SmartSlotYes

Battery

Battery technologySealed Lead Acid (VRLA)
Battery life (max)5 year(s)
Battery recharge time3 h
Hot-swap batteryYes
Automatic battery testYes
Cold startYes

Design

Form factorRackmount/Tower
Product colourBlack
Rack capacity4U
Cable length2.44 m
Display typeLCD
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m

Packaging content

Rack mount kitYes
Cables includedRS-232, USB cable
Quick installation guideYes

Certificates

Compliance certificatesRoHS
CertificationBSMI, CSA, EN 50091-2, EN 55022 Class A, FCC Part 15 Class A, NOM, TAA, TUV, UL

Sustainability

Sustainability certificatesENERGY STAR

Weight & dimensions

Width178 mm
Depth483 mm
Height432 mm
Weight38.6 kg

Packaging data

Screws includedYes
BracketYes
Resource CDYes
Software CDYes
Package width586 mm
Package depth633 mm
Package height330 mm
Package weight47.7 kg

Logistics data

Products per pallet6 pc(s)
