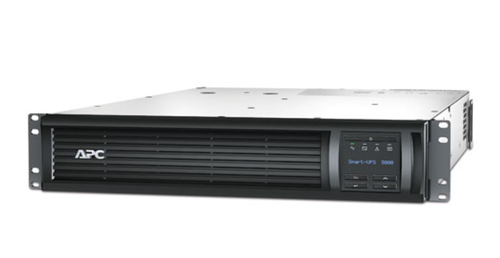

APC SMX3000HV-BNDL uninterruptible power supply (UPS) Line-Interactive 3 kVA

APC SMX3000HV-BNDL uninterruptible power supply (UPS) Line-Interactive 3 kVA

2700 W 10 AC outlet(s)

Model SMX3000HV-BNDL

53 specifications
  • Noise55 dB
  • TypeRackmount
  • Weight38.6 kg
  • ColourBlack
  • UPS topologyLine-Interactive
  • AC outlet typesC13 coupler, C19 coupler
See all specifications

Overview

Noise
55 dB
Type
Rackmount
Weight
38.6 kg
Colour
Black
UPS topology
Line-Interactive
AC outlet types
C13 coupler, C19 coupler
Brand
APC
Model
SMX3000HV-BNDL
Part number
SMX3000HV-BNDL
Also known as
APC SMX3000HV-BNDL uninterruptible power supply (UPS) Line-Interactive 3 kVA 2700 W 10 AC outlet(s)

Specifications

53 specifications in 9 groups

Features

UPS topologyLine-Interactive
Output power capacity3 kVA
Output power2700 W
WaveformSine
Input operation voltage (min)140 V
Input operation voltage (max)280 V
Input frequency47/63 Hz
Output operation voltage (min)208 V
Output operation voltage (max)240 V
Surge energy rating645 J
Efficiency98.5%
Crest factor3:1
Emergency Power Off (EPO)Yes
Noise level55 dB
Surge protectionYes
Audible alarm(s)Yes
Auto-restartYes

Ports & interfaces

AC outlet typesC13 coupler, C19 coupler
AC outlets quantity10 AC outlet(s)
Number of output IEC jumpers2
USB 2.0 ports quantity1
RS-232 ports1

Battery

Battery technologySealed Lead Acid (VRLA)
Battery recharge time3 h
Hot-swap batteryYes
Automatic battery testYes

Design

Form factorRackmount
Product colourBlack
Rack capacity4U
Cable length1.83 m
Display typeLCD
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m

Certificates

Compliance certificatesRoHS
CertificationC-tick, CE, CSA, EN 50091-1, EN 50091-2, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE REACH

Weight & dimensions

Width178 mm
Depth483 mm
Height432 mm
Weight38.6 kg

Packaging data

Package width586 mm
Package depth633 mm
Package height330 mm
Package weight47.7 kg

Other features

Battery typeAPCRBC143
Output connections8 x C13 & 2 x C19
Input connection typeBS1363A & IEC-320 C20 & Schuko CEE 7/EU1-16P
Nominal input voltage208-230 V
Nominal output voltage230 V
