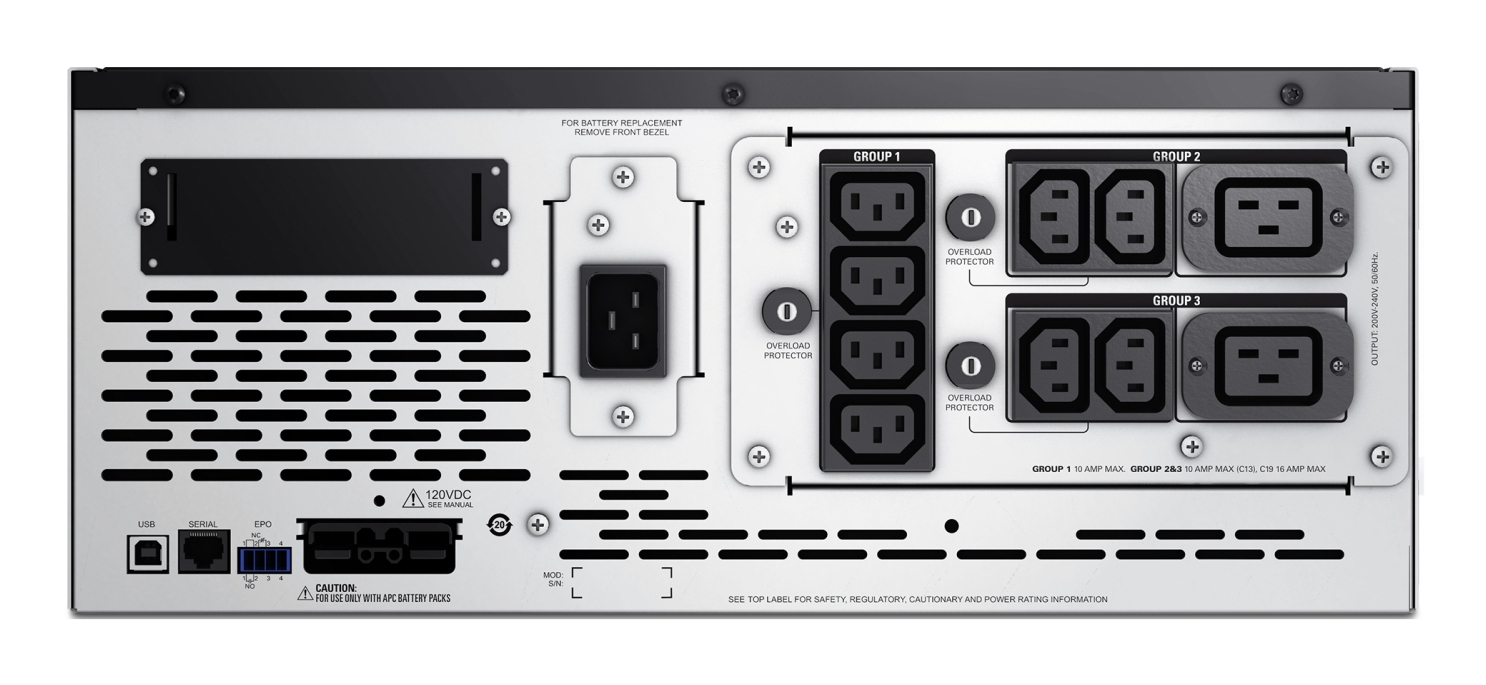

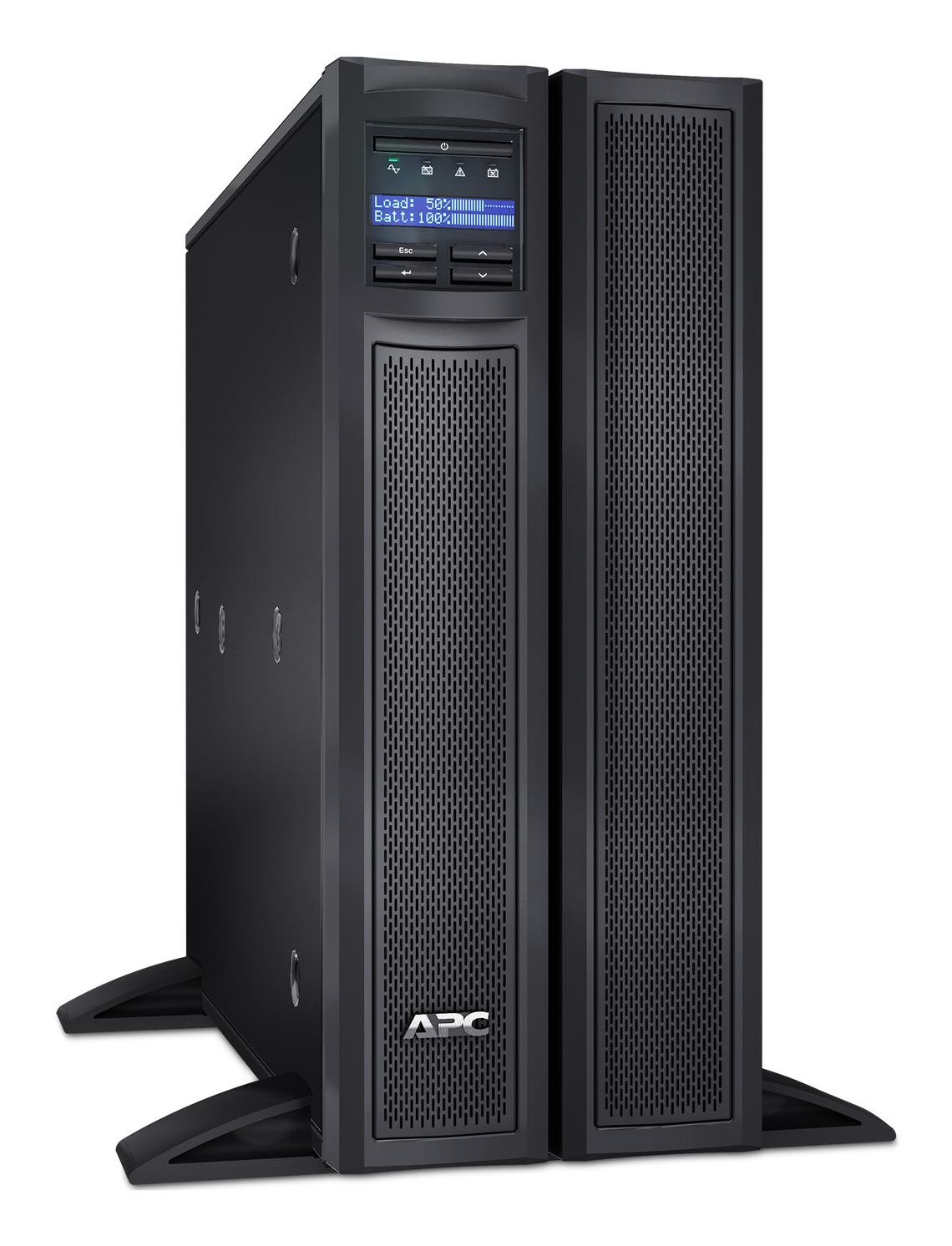

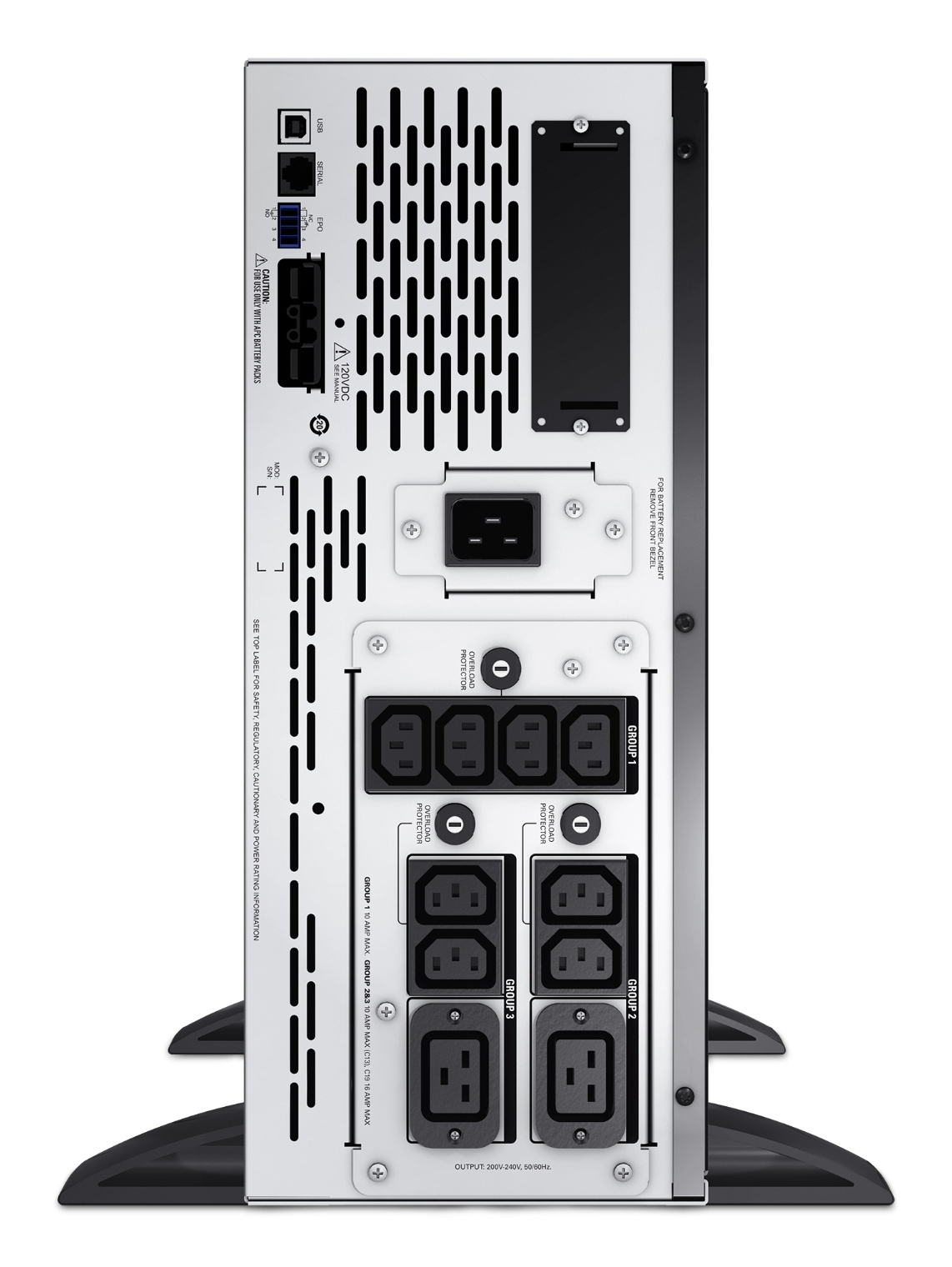

APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 4U
APC

Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 4U

208V-230V, 8x C13+2x C19 IEC, SmartSlot, Extended runtime, Short depth

Model SMX2200HVREAN 731304750253

49 specifications
  • Noise55 dB
  • TypeRackmount/Tower
  • Weight38.6 kg
  • ColourBlack
  • UPS topologyLine-Interactive
  • AC outlet typesC13 coupler, C19 coupler
See all specifications

Overview

Noise
55 dB
Type
Rackmount/Tower
Weight
38.6 kg
Colour
Black
UPS topology
Line-Interactive
AC outlet types
C13 coupler, C19 coupler
Brand
APC
Model
SMX2200HVR
Part number
SMX2200HVR
EAN / UPC
731304750253
Also known as
APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 4U, 208V-230V, 8x C13+2x C19 IEC, SmartSlot, Extended runtime, Short depth

Specifications

49 specifications in 7 groups

Features

UPS topologyLine-Interactive
Output power capacity2.2 kVA
Output power1980 W
WaveformSine
Input operation voltage (min)140 V
Input operation voltage (max)280 V
Input frequency50/60 Hz
Output operation voltage (min)208 V
Output operation voltage (max)240 V
Automatic Voltage Regulation (AVR)Yes
Surge energy rating645 J
Efficiency98.1%
Emergency Power Off (EPO)Yes
Noise level55 dB
Surge protectionYes
Audible alarm(s)Yes
Auto-restartYes

Ports & interfaces

AC outlet typesC13 coupler, C19 coupler
Power plugC20 coupler
AC outlets quantity10 AC outlet(s)
Number of output IEC jumpers2
USB portYes
SmartSlotYes

Battery

Battery technologyLead-Acid
Battery life (max)5 year(s)
Battery recharge time3 h
Hot-swap batteryYes
Automatic battery testYes
Cold startYes

Design

Form factorRackmount/Tower
Product colourBlack
Rack capacity4U
Cable length2 m
Display typeLCD
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3048 m
Non-operating altitude0 - 15240 m

Weight & dimensions

Width178 mm
Depth483 mm
Height432 mm
Weight38.6 kg

Packaging data

Package width586 mm
Package depth633 mm
Package height330 mm
Package weight47.7 kg
