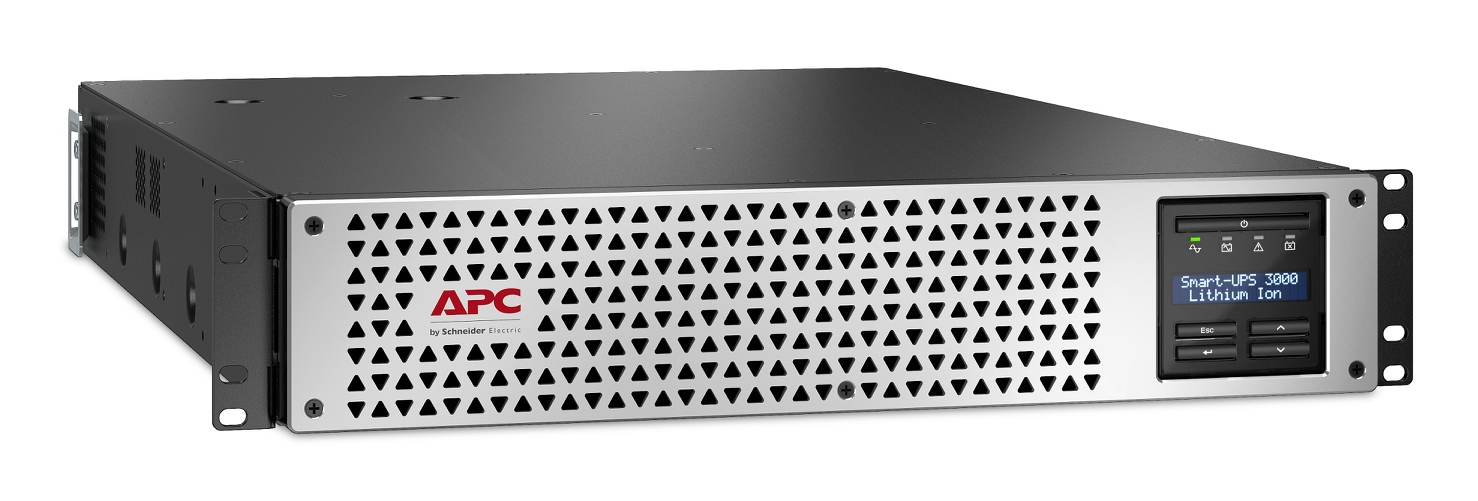

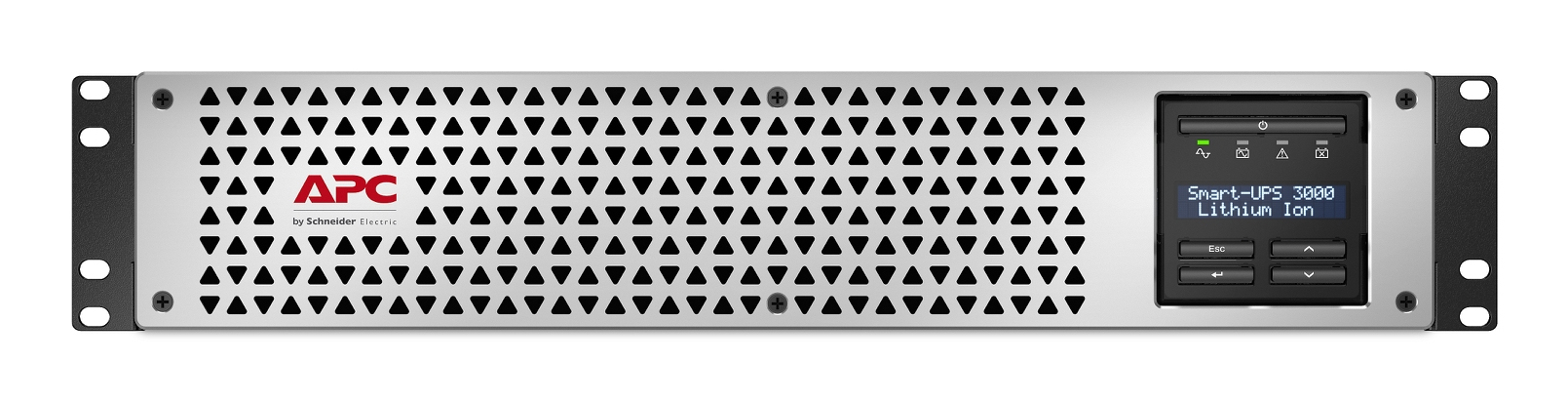

APC SMTL3KRM2UCLNC uninterruptible power supply (UPS) Line-Interactive 3 kVA
APC

SMTL3KRM2UCLNC uninterruptible power supply (UPS) Line-Interactive 3 kVA

2700 W 7 AC outlet(s)

Model SMTL3KRM2UCLNCEAN 731304450771

60 specifications
  • Noise55 dB
  • TypeRackmount
  • Weight34.2 kg
  • ColourBlack
  • UPS topologyLine-Interactive
  • AC outlet typesNEMA 5-20R, NEMA L5-30R
See all specifications

Overview

Noise
55 dB
Type
Rackmount
Weight
34.2 kg
Colour
Black
UPS topology
Line-Interactive
AC outlet types
NEMA 5-20R, NEMA L5-30R
Brand
APC
Model
SMTL3KRM2UCLNC
Part number
SMTL3KRM2UCLNC
EAN / UPC
731304450771
Also known as
APC SMTL3KRM2UCLNC uninterruptible power supply (UPS) Line-Interactive 3 kVA 2700 W 7 AC outlet(s)

Specifications

60 specifications in 9 groups

Features

UPS topologyLine-Interactive
Output power capacity3 kVA
Output power2700 W
WaveformSine
Input operation voltage (min)110 V
Input operation voltage (max)125 V
Input frequency50/60 Hz
Output operation voltage (min)110 V
Output operation voltage (max)125 V
Output frequency50/60 Hz
Automatic Voltage Regulation (AVR)Yes
Surge energy rating459 J
Response time6 ms
Heat dissipation348 BTU/h
Number of input phases1
Number of output phases1
Crest factor3:1
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)5%
Noise level55 dB
Audible alarm(s)Yes
Audible alarm modesAlarm when on battery, Low battery alarm

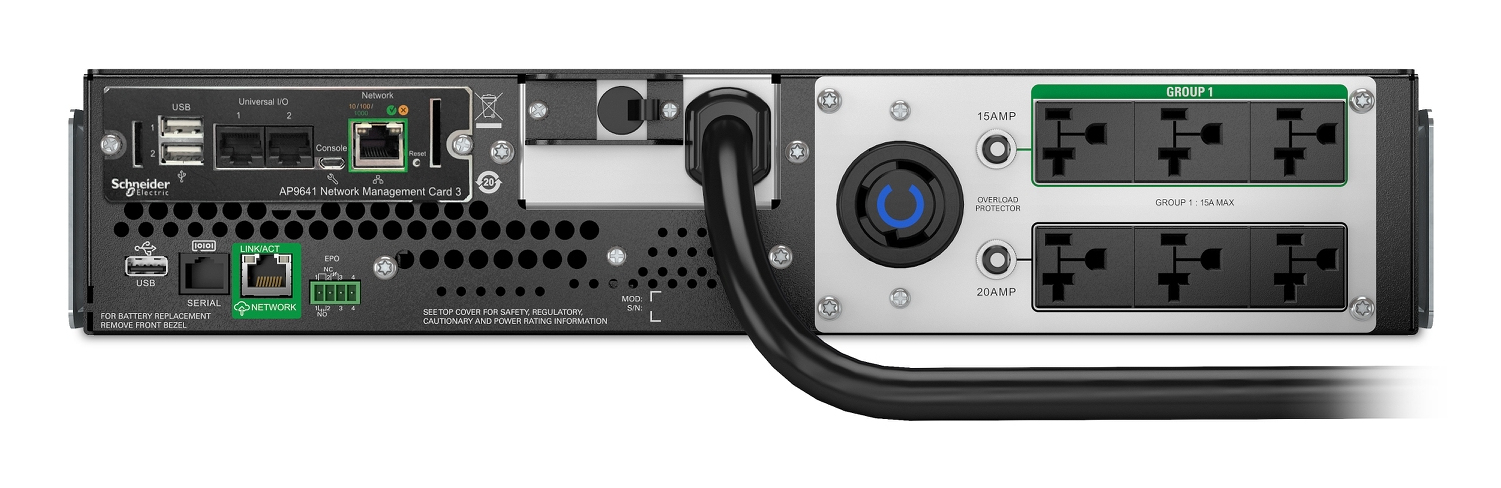

Ports & interfaces

AC outlet typesNEMA 5-20R, NEMA L5-30R
Power plugNEMA L5-30P
AC outlets quantity7 AC outlet(s)
USB portYes
Serial interfaceYes
SmartSlotYes
SmartConnect portYes

Battery

Battery technologyLithium-Ion (Li-Ion)
Number of batteries included1 pc(s)
Battery life (max)10 year(s)
Battery recharge time2 h
Hot-swap batteryYes
Replacement battery cartridgeAPCRBC174-LI

Design

Form factorRackmount
Product colourBlack
Rack capacity2U
Cable length2.4384 m
Display typeLCD
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3048 m
Non-operating altitude0 - 7620 m

Packaging content

Batteries includedYes
Rack mount kitYes
Cables includedUSB cable

Certificates

Compliance certificatesRoHS
CertificationCSA C22.2 NO. 107.3, FCC Part 15 Class A, NOM, UL 1778, UL 1973

Weight & dimensions

Width432 mm
Depth683 mm
Height86 mm
Weight34.2 kg

Packaging data

Package width980 mm
Package depth620 mm
Package height254 mm
Package weight42.7 kg

Energy efficiency

ENERGY STAR certified

Uninterruptible power supplies · model SMTL3KRM2UCLNC · certified Nov 24, 2021 · United States, Canada

Average efficiency98.6 %
