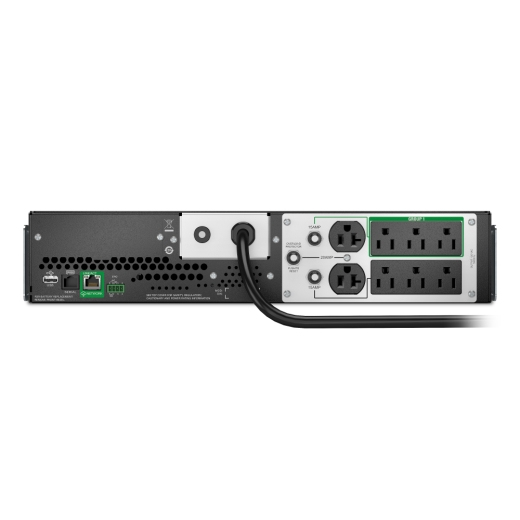

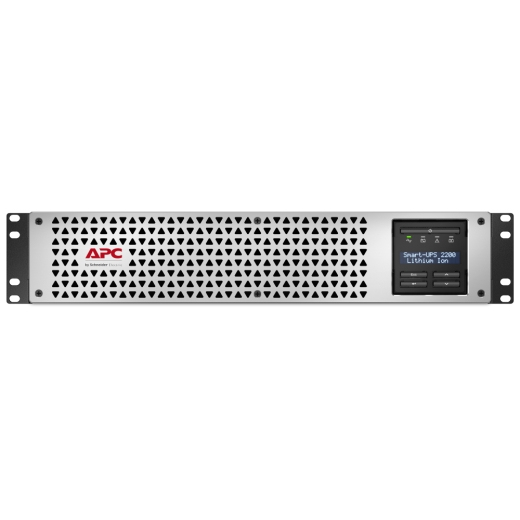

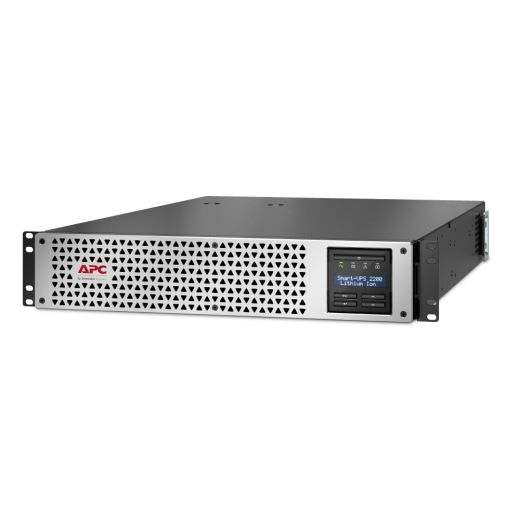

APC SMTL2200RM2UCNC uninterruptible power supply (UPS) Line-Interactive 2.2 kVA
APC

SMTL2200RM2UCNC uninterruptible power supply (UPS) Line-Interactive 2.2 kVA

1920 W 8 AC outlet(s)

Model SMTL2200RM2UCNCEAN 731304429111

45 specifications
  • Noise55 dB
  • TypeRackmount
  • Weight31.9 kg
  • ColourBlack, Silver
  • UPS topologyLine-Interactive
  • AC outlet typesNEMA 5–15R, NEMA 5–20R
See all specifications

Overview

Noise
55 dB
Type
Rackmount
Weight
31.9 kg
Colour
Black, Silver
UPS topology
Line-Interactive
AC outlet types
NEMA 5–15R, NEMA 5–20R
Brand
APC
Model
SMTL2200RM2UCNC
Part number
SMTL2200RM2UCNC
EAN / UPC
731304429111
Also known as
APC SMTL2200RM2UCNC uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 1920 W 8 AC outlet(s)

Specifications

45 specifications in 8 groups

Features

UPS topologyLine-Interactive
Output power capacity2.2 kVA
Output power1920 W
WaveformSine
Input operation voltage (min)82 V
Input operation voltage (max)144 V
Input frequency50/60 Hz
Output operation voltage (min)120 V
Output operation voltage (max)120 V
Output frequency50/60 Hz
Output voltage regulation5%
Surge energy rating530 J
Efficiency96%
Noise level55 dB

Ports & interfaces

AC outlet typesNEMA 5–15R, NEMA 5–20R
AC outlets quantity8 AC outlet(s)
USB portYes
Serial interfaceYes
Serial interface typeRJ-45
Ethernet LAN (RJ-45) ports1
SmartSlotYes

Battery

Battery technologyLithium-Ion (Li-Ion)
Typical backup time at full load6 min
Typical backup time at half load12 min

Design

Form factorRackmount
Product colourBlack, Silver
Rack capacity2U
Display typeLCD
LED indicatorsYes
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 7620 m

Certificates

CertificationCSA C22.2 No 107.1, CULus, FCC part 15 class A, UL 1778, UL 1973

Weight & dimensions

Width432.1 mm
Depth683 mm
Height86.1 mm
Weight31.9 kg

Packaging data

Package width600 mm
Package depth980.4 mm
Package height254 mm
Package weight39.2 kg

Energy efficiency

ENERGY STAR certified

Uninterruptible power supplies · model SMTL2200RM2UCNCUS · certified Oct 31, 2023 · United States

Average efficiency98.6 %

ENERGY STAR certified

Uninterruptible power supplies · model SMTL2200RM2UCNC · certified Aug 31, 2021 · United States, Canada

Average efficiency98.6 %
