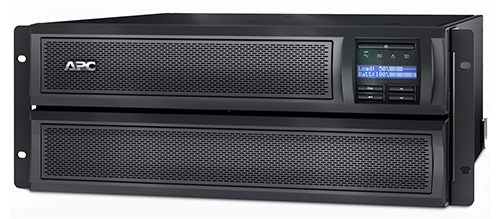

APC Smart-UPS X 2200VA + Servicebundle

APC Smart-UPS X 2200VA + Servicebundle

Model Smart-UPS X 2200VA + ServicebundlePart no. SMX2200HV_K3

41 specifications
  • Noise55 dB
  • TypeRackmount
  • Weight38.6 kg
  • ColourBlack, Stainless steel
  • Output power capacity2.2 kVA
  • AC outlet typesC13 coupler, C19 coupler
See all specifications

Overview

Noise
55 dB
Type
Rackmount
Weight
38.6 kg
Colour
Black, Stainless steel
Output power capacity
2.2 kVA
AC outlet types
C13 coupler, C19 coupler
Brand
APC
Model
Smart-UPS X 2200VA + Servicebundle
Part number
SMX2200HV_K3
Also known as
APC Smart-UPS X 2200VA + Servicebundle uninterruptible power supply (UPS) 2.2 kVA 1980 W 10 AC outlet(s)

Specifications

41 specifications in 8 groups

Features

Output power capacity2.2 kVA
Output power1980 W
Input operation voltage (min)140 V
Input operation voltage (max)280 V
Input frequency50/60 Hz
Output operation voltage (min)208 V
Output operation voltage (max)230 V
Surge energy rating645 J
Efficiency98%
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)5%
Noise level55 dB

Ports & interfaces

AC outlet typesC13 coupler, C19 coupler
Power plugC20 coupler
AC outlets quantity10 AC outlet(s)
Number of output IEC jumpers2
USB 2.0 ports quantity1

Battery

Battery technologySealed Lead Acid (VRLA)
Typical backup time at full load10 min
Typical backup time at half load25 min
Battery recharge time3 h

Design

Form factorRackmount
Product colourBlack, Stainless steel
Rack capacity4U
Cable length1.83 m
LED indicatorsStatus

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 10000 m

Certificates

CertificationC-tick, CE, CSA, EN 50091-1, EN 50091-2, FCC, GOST, IEC 60950, IRAM, UL 1778, VDE

Weight & dimensions

Width178 mm
Depth483 mm
Height432 mm
Weight38.6 kg

Packaging data

Package width586 mm
Package depth330 mm
Package height633 mm
Package weight47.7 kg
