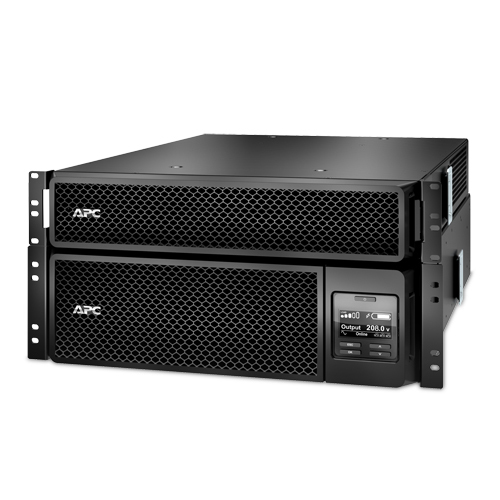

APC Smart-UPS On-Line SRT

APC Smart-UPS On-Line SRT

Model Smart-UPS On-Line SRTPart no. SRT3000RMXLIEAN 731304317647

68 specifications
  • Battery505 VAh
  • Noise55 dB
  • TypeRackmount
  • Weight31.3 kg
  • ColourBlack
  • UPS topologyDouble-conversion (Online)
See all specifications

Overview

Battery
505 VAh
Noise
55 dB
Type
Rackmount
Weight
31.3 kg
Colour
Black
UPS topology
Double-conversion (Online)
Brand
APC
Model
Smart-UPS On-Line SRT
Part numbers
SRT3000RMXLI, SRT3000RMXLI-NC
EAN / UPC
731304317647, 731304327592, 7313043275926
Also known as
APC Smart-UPS On-Line SRT3000RMXLI - 3000VA, 8x C13 & 2x C19, rackmount

Specifications

68 specifications in 12 groups

Features

UPS topologyDouble-conversion (Online)
Output power capacity3 kVA
Output power2700 W
WaveformSine
Input operation voltage (min)100 V
Input operation voltage (max)275 V
Input frequency40 - 70 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Automatic Voltage Regulation (AVR)Yes
Surge energy rating340 J
Efficiency92%
Crest factor3:1
Emergency Power Off (EPO)Yes
Output voltage Total Harmonic Distortion (THD)2%
Noise level55 dB
Surge protectionYes
Power protection featuresOverload
Audible alarm(s)Yes
Audible alarm modesBattery replacement
Auto-restartYes

Ports & interfaces

AC outlet typesC13 coupler, C19 coupler
Power plugC20 coupler
USB portYes
Serial interfaceYes
Serial interface typeRJ-45
SmartSlotYes
SmartConnect portNo

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity505 VAh
Typical backup time at full load4 min
Typical backup time at half load11.8 min
Battery life (max)5 year(s)
Battery recharge time3 h
Hot-swap batteryYes
Automatic battery testYes
Cold startYes

Design

Form factorRackmount
Product colourBlack
Rack capacity2U
Cable length2.44 m
Display typeLCD
LED indicatorsBattery replacement
International Protection (IP) codeIP20

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m

Packaging content

Management card includedNo
Quick installation guideYes

Certificates

Compliance certificatesRoHS
CertificationCE, VDE, RCM, EAC, IEC/EN 62040-1, IEC/EN 62040-2, UL-1778, FCC 15 A, CSA

Sustainability

Sustainability certificatesGreen Premium

Weight & dimensions

Width432 mm
Depth635 mm
Height85 mm
Weight31.3 kg

Packaging data

Package width599 mm
Package depth871 mm
Package height246 mm
Package weight39.3 kg

Logistics data

Products per pallet6 pc(s)
Harmonized System (HS) code85078000
Total carbon footprint (kg of CO2e)4993.35

Other features

Output voltage230 V
