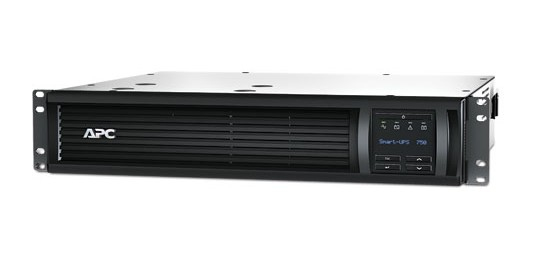

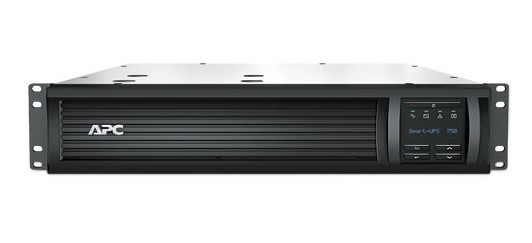

APC Smart-UPS 750VA+PM5-FR

APC Smart-UPS 750VA+PM5-FR

Model Smart-UPS 750VA+PM5-FRPart no. SMT750RMI2U?KIT1

59 specifications
  • Battery168 Ah
  • Noise46 dB
  • TypeRackmount
  • Weight17.2 kg
  • ColourBlack
  • UPS topologyLine-Interactive
See all specifications

Overview

Battery
168 Ah
Noise
46 dB
Type
Rackmount
Weight
17.2 kg
Colour
Black
UPS topology
Line-Interactive
Brand
APC
Model
Smart-UPS 750VA+PM5-FR
Part number
SMT750RMI2U?KIT1
Also known as
APC Smart-UPS 750VA+PM5-FR uninterruptible power supply (UPS) Line-Interactive 0.75 kVA 500 W 4 AC outlet(s)

Specifications

59 specifications in 11 groups

Features

UPS topologyLine-Interactive
Output power capacity0.75 kVA
Output power500 W
WaveformSine
Input operation voltage (min)151 V
Input operation voltage (max)302 V
Input frequency50/60 Hz
Output operation voltage (min)220 V
Output operation voltage (max)240 V
Output frequency50/60 Hz
Output frequency regulation+/- 3 Hz
Output voltage regulation5%
Surge energy rating459 J
Response time2 ms
Emergency Power Off (EPO)O
Noise level46 dB
Surge protectionYes
Audible alarm(s)Yes
Web-based managementYes
Audible alarm modesBattery replacement
Auto-restartYes

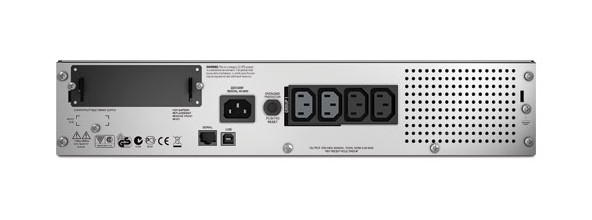

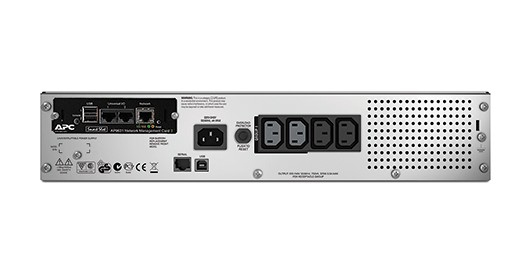

Ports & interfaces

AC outlet typesC13 coupler, C14 coupler
Power plugC14 coupler
AC outlets quantity4 AC outlet(s)
USB 2.0 ports quantity1
Ethernet LAN (RJ-45) ports1

Battery

Battery technologySealed Lead Acid (VRLA)
Battery capacity168 Ah
Battery recharge time3 h
Hot-swap batteryYes
Automatic battery testYes
Cold startYes

Design

Form factorRackmount
Product colourBlack
Rack capacity2U
Display typeLCD
LED indicatorsYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 45 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m

Packaging content

Rack mount kitYes
Cables includedInput power cable, USB cable
Quick installation guideYes

Certificates

Compliance certificatesRoHS
CertificationCE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, GS Mark, IRAM, RCM, VDE, WEEE

Weight & dimensions

Width432 mm
Depth406 mm
Height89 mm
Weight17.2 kg

Packaging data

Resource CDYes
Package width546 mm
Package depth584 mm
Package height241 mm
Package weight21.2 kg

Logistics data

Products per pallet16 pc(s)

Other features

Output voltage230 V
